Detailed Specifications

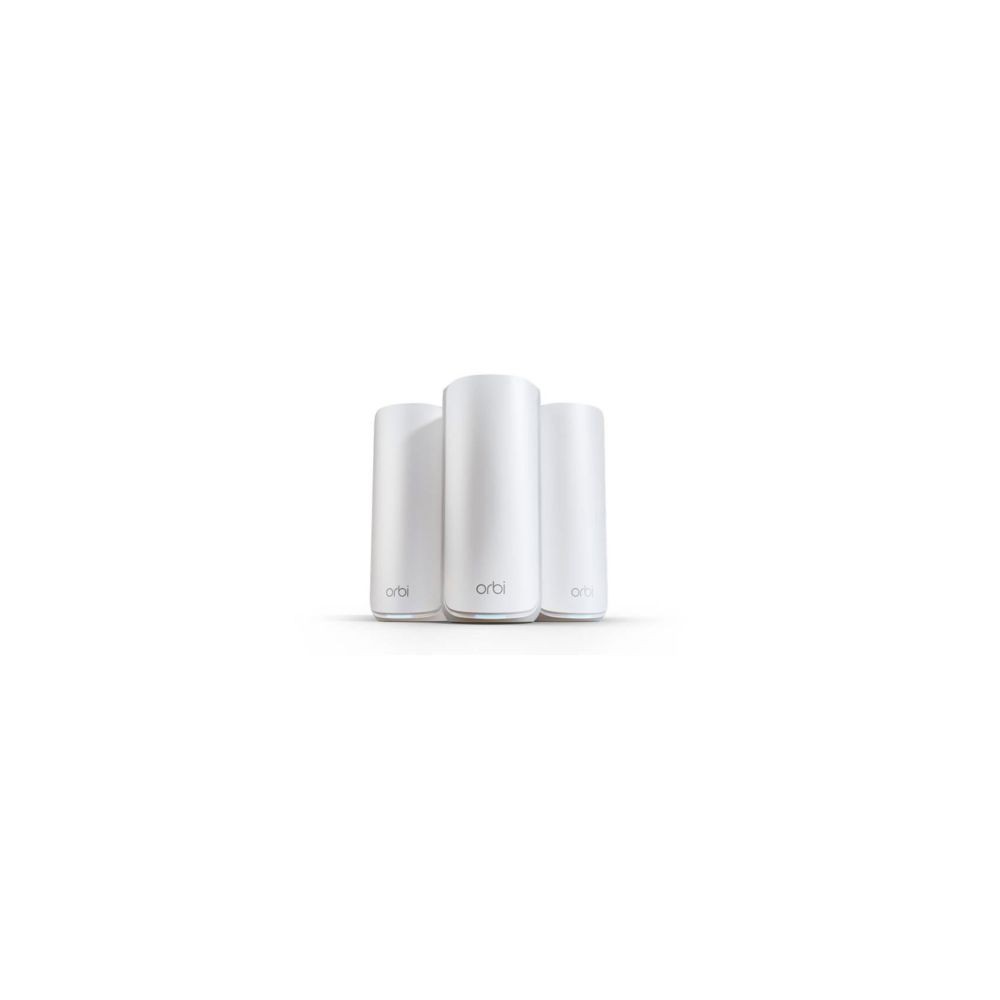

NETGEAR RBE873-100NAS Tri-Band WiFi 7 Mesh System
Overview :
The NETGEAR RBE873-100NAS is an Orbi 870 Series three-piece mesh WiFi 7 system comprising one RBE871 router and two RBE870 satellites. It is designed for high-capacity home and small-office networks requiring broad wireless coverage and multi-gigabit connectivity.
The system provides up to 21 Gbps combined WiFi throughput across tri-band 2.4 GHz, 5 GHz, and 6 GHz operation. The router provides one 10GbE WAN port and four 2.5GbE LAN ports, while each satellite provides four 2.5GbE LAN ports.
Deployment is intended for whole-home or comparable small-office environments rather than rack-mounted data-center infrastructure. It requires a high-speed internet connection through an existing modem or gateway and supports wired multi-gigabit backhaul where required.
It is not intended as a conventional rack-mounted enterprise access point or a standalone enterprise wireless controller platform. For deployments requiring centralized enterprise WLAN management or rack infrastructure, a dedicated enterprise networking platform is more appropriate.
Key Features :
- Tri-band WiFi 7 delivers up to 21 Gbps throughput.
- 10GbE WAN and four 2.5GbE LAN ports enable multi-gig.
- Three-node mesh extends coverage across large homes.
- 5/6 GHz backhaul helps maintain consistent mesh speed.
- WiFi 7 supports high-capacity multi-device connectivity.
Specifications :
| Specification | Verified Value |
|---|
| Brand | NETGEAR |
| Part Number | RBE873-100NAS |
| Product Type | Tri-Band WiFi 7 Mesh System |
| System Configuration | 1 Router + 2 Satellites |
| WiFi Standard | WiFi 7 / IEEE 802.11be |
| Wireless Bands | 2.4 GHz / 5 GHz / 6 GHz |
| Combined WiFi Speed | Up to 21 Gbps / BE21000 |
| Overall WiFi Coverage | Up to 9,000 sq. ft. |
| Supported Devices | Up to 150 concurrent devices |
| Router WAN Port | 1 × 10GbE RJ45 |
| Router LAN Ports | 4 × 2.5GbE RJ45 |
| Satellite LAN Ports | 4 × 2.5GbE RJ45 per satellite |
| Processor | Quad-core 1.5 GHz |
| Backhaul | Shared 5 GHz and 6 GHz; wired 2.5GbE supported |
| Wireless Security | WPA3 |
