Netgear RAX50-100NAS AX6 AX5400 Dual-Band Router View larger
Previous Next

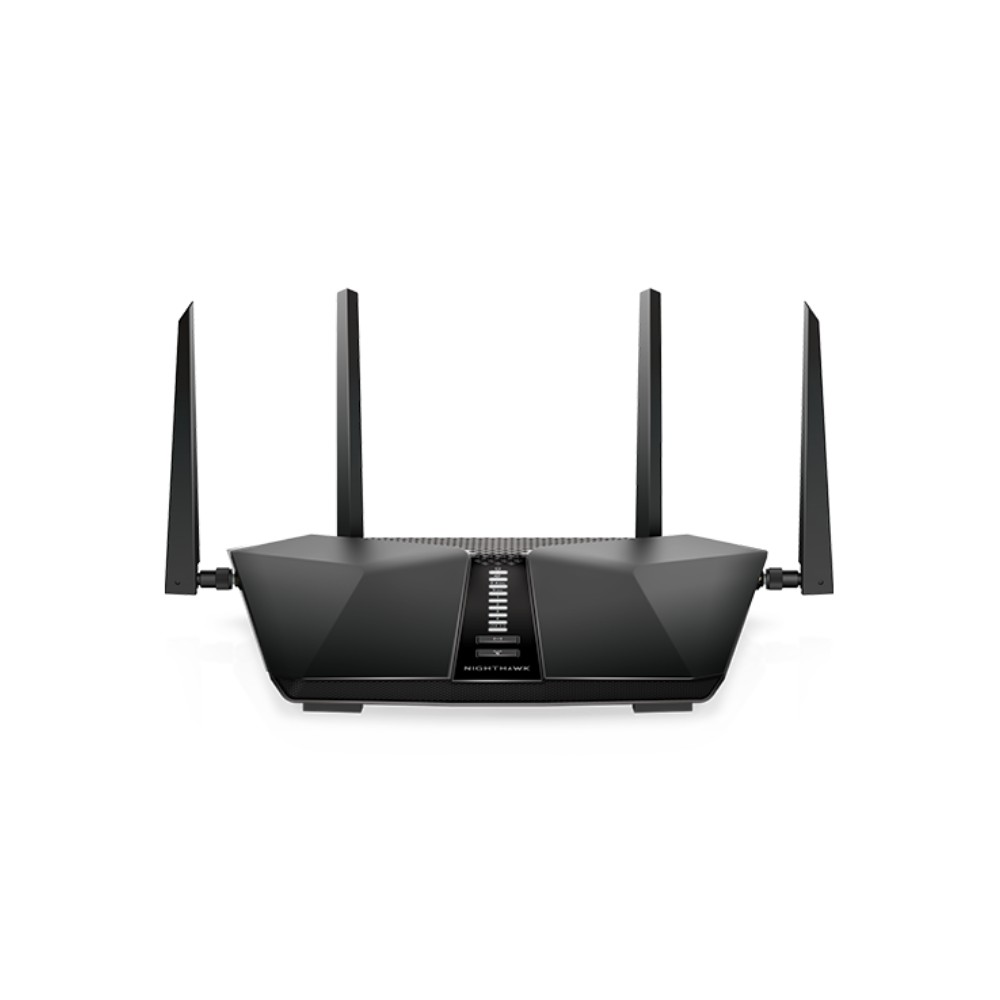

Netgear RAX50-100NAS AX6 AX5400 Dual-Band Router

New

Netgear NIGHTHAWK AX6 6-STREAM AX5400 WIFI ROUTER
×




  • New

Detailed Specifications

Netgear RAX50-100NAS

Nighthawk AX6 AX5400 Dual‑Band Wi‑Fi Router

The NETGEAR RAX50-100NAS, also known as the AX6, is a powerful AX5400 dual-band Wi‑Fi 6 router that delivers exceptional speed,capacity, and security for modern smart homes. Perfect for gamers, 4K/8K streamers, and multi-device households, it's built to handle high-bandwidth demands with ease.

Features

Using Wi‑Fi 6 technologies like MU‑MIMO, OFDMA, 1024-QAM, and 160 MHz channels, the RAX50 supports fast simultaneous connections across numerous devices. Its expansive beamforming and DFS channel access enhance performance in congested environments With four LAN ports, one WAN port, and a USB 3.0 connection, the router doubles as a media server using ReadyShare or OpenVPN for home network advancements .

Advanced Options

Reviewers note excellent top-tier speeds (~1.38 Gbps at 15 ft short-range, ~600 Mbps at 40 ft) and solid mid-range coverage—ideal for apartments and multi-level homes The built-in USB 3.0 port enables quick file sharing, though no link aggregation is supported .

Product Key Features

  •  AX5400 Wi‑Fi 6 (802.11ax) offering up to 5.4 Gbps combined speed (600 + 4800 Mbps)

  •  Triple-core 1.5 GHz processor for robust streaming, gaming, and multitasking

  •  4×4 MU‑MIMO, OFDMA, 160 MHz channels & 1024‑QAM for enhanced capacity and efficiency

  •  4 Gigabit LAN + 1 Gigabit WAN ports, plus USB 3.0 for NAS and media server functionality

  •  NETGEAR Armor™ advanced cyber threat protection (30-day trial included)

  •  DFS support and four external antennas deliver improved coverage inside multi-level and large homes

Reliability & Performance

The triple-core CPU supports sustained traffic, while the high-performance Wi‑Fi chip delivers strong throughput. However, it lacks multi-gig Ethernet and mesh capabilities, limiting some advanced users.

Key Features (Bullet List)

    • AX5400 dual-band Wi‑Fi 6 (600 + 4800 Mbps)

    • MU‑MIMO, OFDMA, 1024‑QAM, DFS, 160 MHz

    • Triple‑core 1.5 GHz CPU

    • 4× Gigabit LAN + 1× Gigabit WAN ports

    • USB 3.0 port (ReadyShare, OpenVPN, media server)

    • NETGEAR Armor™ security (30-day trial)

    • Four external antennas, beamforming, DFS-enabled

SpecificationDetail
Model Number RAX50-100NAS
Product Type Dual-Band Wi‑Fi 6 Router (AX5400)
Wi‑Fi Standard IEEE 802.11ax (Wi‑Fi 6)
Wi‑Fi Speed 600 Mbps @2.4 GHz / 4800 Mbps @5 GHz (combined 5400 Mbps)
Antennas 4 × external, removable
MIMO & Channel Tech 4×4 MU‑MIMO (5 GHz), 2×2 (2.4 GHz); OFDMA; 160 MHz; 1024‑QAM
Processor Triple-core 1.5 GHz CPU
Ethernet Interfaces 1 × Gigabit WAN; 4 × Gigabit LAN
USB Interface 1 × USB 3.0 port (ReadyShare, media, OpenVPN)
Beamforming & DFS Supports explicit beamforming and DFS channels
Security WPA2/WPA3, NAT firewall, NETGEAR Armor™
Dimensions (H×W×D) 57.2 × 295.8 × 206 mm (2.25 × 11.65 × 8.11 in)
Weight 566 g / 1.25 lb
Power Consumption 7.4 W operating (~$8.50/year)
