Detailed Specifications

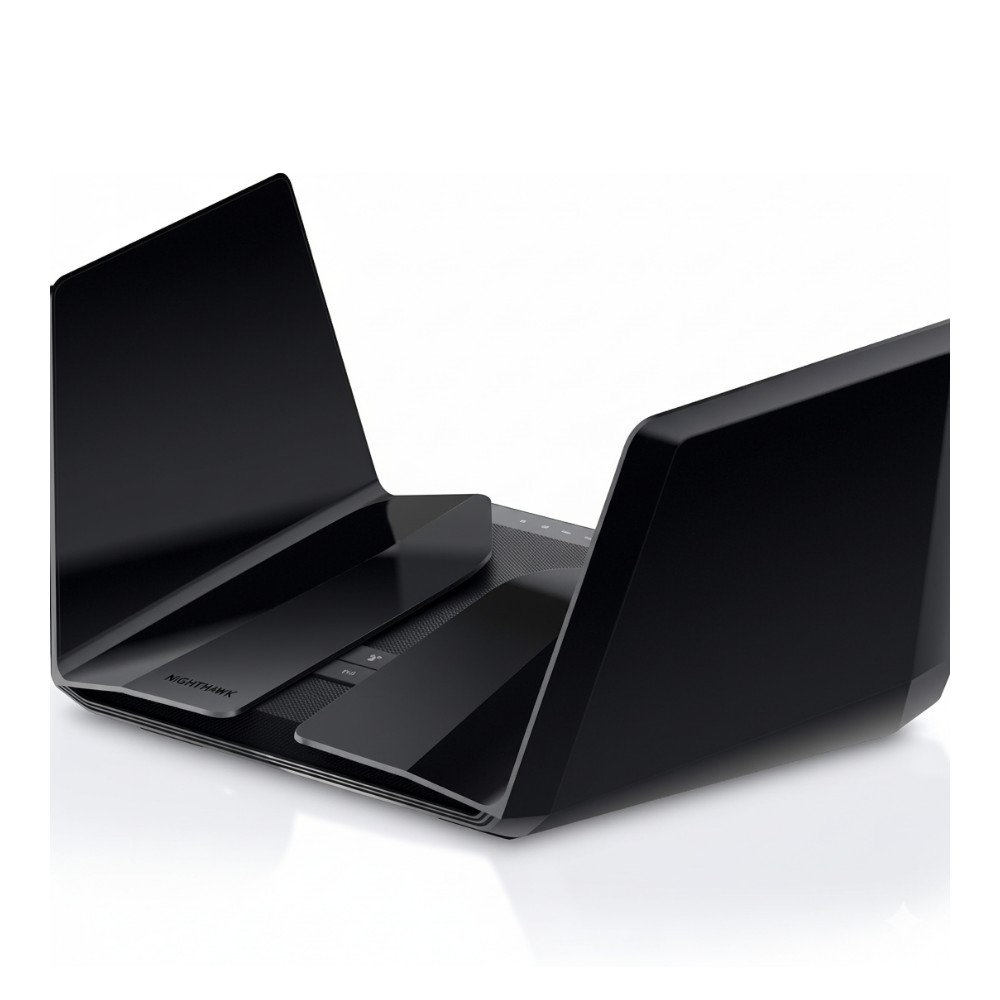

NETGEAR RAX120-100NAS - Nighthawk AX12 WiFi 6 Router
Overview
The NETGEAR RAX120-100NAS (Nighthawk AX12) is a high-performance WiFi 6 router built for power users, streaming, and gaming environments. It provides dual-band 802.11ax connectivity with 12 spatial streams, handling dense wireless loads and multiple client devices. It supports multi-gig wired access via a 5 Gbps port and link aggregation for increased backbone throughput. It also includes security features and network services typical of high-end routers, suitable for large homes, offices, or small campus edge deployment.
Key Features
Dual-band 802.11ax with 12 spatial streams
5 Gbps Multi-Gig Ethernet port + LACP
Two USB 3.0 ports for shared storage
Beamforming+, OFDMA, WPA3 security
Technical Specifications
| Specification | Details |
|---|
| Brand | NETGEAR |
| Part Number | RAX120-100NAS |
| Product Type | Dual-Band WiFi 6 Router |
| WiFi Standard | IEEE 802.11ax (WiFi 6) |
| Spatial Streams | 4×4 @ 2.4 GHz + 8×8 @ 5 GHz (total 12 streams) |
| Max Wireless Throughput | Up to ~6 Gbps (1.2 + 4.8) |
| Ethernet Ports | 4 × 1 Gbps LAN + 1 × 1/2.5/5 Gbps Multi-Gig + 1 WAN Gigabit |
| Link Aggregation | Yes (LAN port pair) |
| USB Ports | 2 × USB 3.0 |
| Processor | 64-bit 2.2 GHz quad-core |
| Antenna | 8 internal high-performance antennas |
| Security | WPA3, WPA2, guest network support |
| Dimensions (W × D × H) | 310 × 190 × 45 mm |
| Weight | 1.364 kg |
| Operating Modes | Router, Access Point, Bridge |
