Detailed Specifications

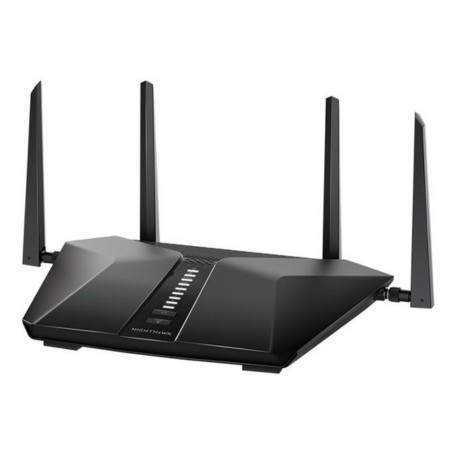

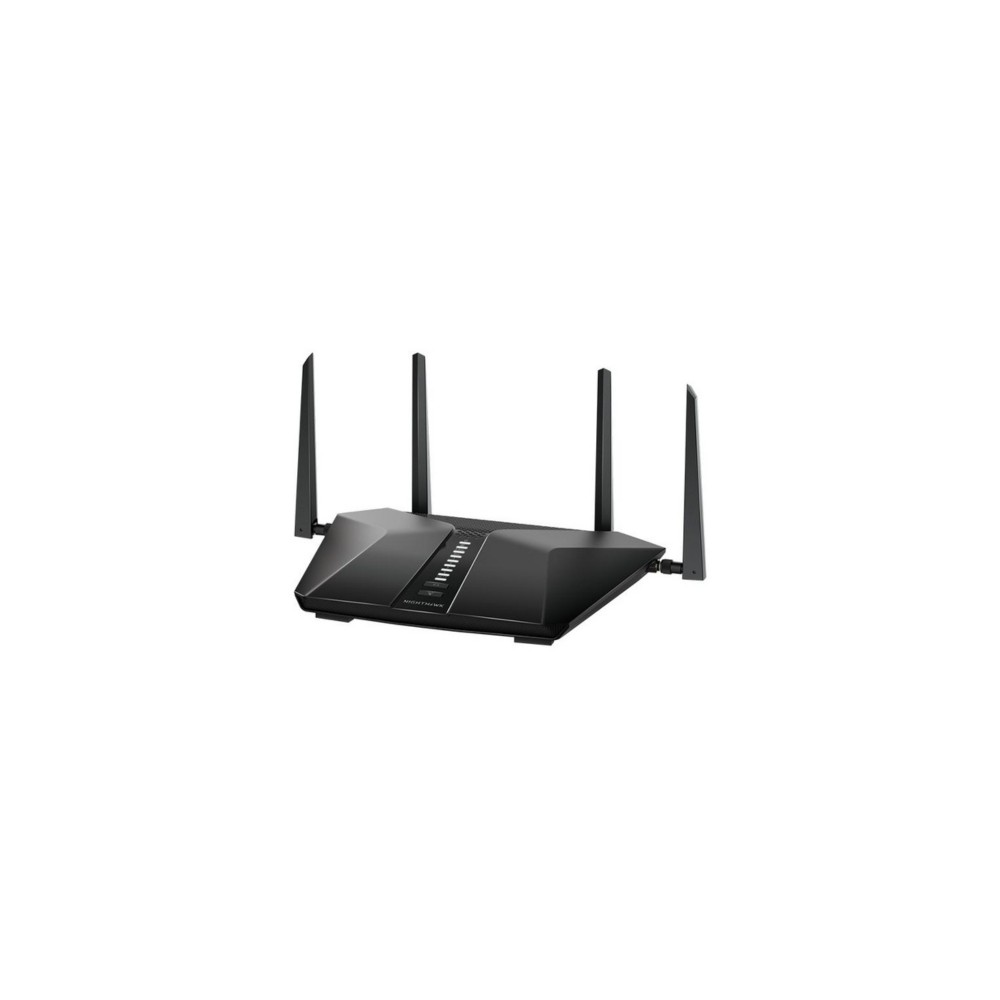

NETGEAR RAX41-100NAS Nighthawk AX5 WiFi 6 Router
Overview :
NETGEAR RAX41-100NAS is the Nighthawk AX5 5-Stream AX3600 dual-band WiFi 6 router. The exact RAX41-100NAS manufacturer part number is listed by an authorized NETGEAR dealer, while NETGEAR's official documentation identifies the RAX41 platform and its specifications.
The router provides up to 3.45Gbps combined wireless speed, using 574Mbps on 2.4GHz and up to 2882Mbps on 5GHz. It uses a 1.5GHz triple-core processor, supports 160MHz channels, and includes five Gigabit Ethernet ports plus one USB 3.0 port.
It is intended for small-to-medium residential networks and high-bandwidth applications such as 4K streaming, gaming, and video conferencing. It is not a modem and should not be selected where integrated cellular, DSL, cable, or fiber termination is required.
Key Features :
- AX3600 dual-band WiFi 6 delivers up to 3.45Gbps
- 160MHz channel support enables higher client throughput
- Five Gigabit Ethernet ports provide flexible wired access
- 1.5GHz triple-core processor supports demanding workloads
- USB 3.0 port enables network storage and media access
Specifications :
| Specification | Verified Detail |
|---|
| Brand | NETGEAR |
| Part Number | RAX41-100NAS |
| Product Type | WiFi 6 Wireless Router |
| Product Series | Nighthawk AX5 |
| WiFi Standard | WiFi 6 / 802.11ax |
| Wireless Class | AX3600 |
| Maximum WiFi Speed | Up to 3.45Gbps |
| 2.4GHz Speed | Up to 574Mbps |
| 5GHz Speed | Up to 2882Mbps |
| Wireless Bands | Dual-Band 2.4GHz + 5GHz |
| Ethernet Ports | 5 × 10/100/1000Mbps Gigabit Ethernet |
| WAN Ports | 1 × Gigabit Ethernet |
| LAN Ports | 4 × Gigabit Ethernet |
| USB Port | 1 × USB 3.0 |
| Processor | 1.5GHz triple-core |
| Memory | 256MB Flash + 512MB RAM |
| Antennas | 4 external high-performance antennas |
| Channel Support | 160MHz |
| Security | WPA3; 128-bit AES with PSK |
| Form Factor | Desktop |
