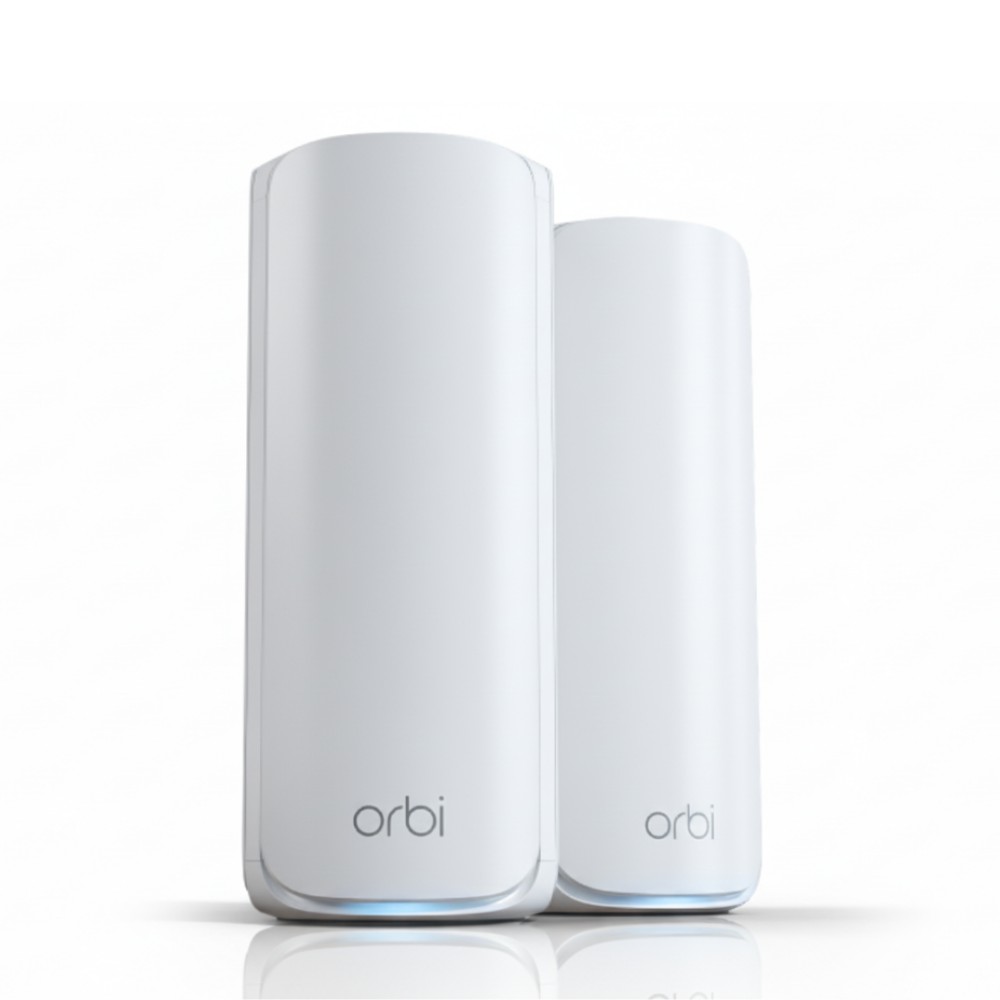

Netgear RBE772-100CNS Tri band Mesh WiFi 7 System (Router + Satellite)

New

Mesh WiFi 7 system (2-pack)
×




  • New

Detailed Specifications

Netgear RBE772-100CNS Tri-band Mesh WiFi 7 System (Router + Satellite)

Overview

The Netgear RBE772-100CNS is a dual-unit mesh WiFi 7 system aimed at residential and small office use, solving coverage and throughput limitations of single routers. It supports tri-band (2.4 GHz / 5 GHz / 6 GHz) 2×2 streams and multi-link operation for backhaul, enabling combined speeds up to 11 Gbps. This system is intended for whole-home deployment (e.g. coverage up to ~5,500 ft²). It integrates with Netgear’s Orbi platform for firmware upgrades, network monitoring, and satellite provisioning.

Key Features

  • Tri-band 2×2: 6 GHz + 5 GHz + 2.4 GHz

  • Multi-link backhaul combining 5 GHz & 6 GHz

  • Multi-Gig Ethernet: 2.5 GbE WAN + 3× 2.5 GbE LAN (router)

  • 4 GB flash / 2 GB RAM (router unit)

SpecificationValue
Brand Netgear
Part Number RBE772-100CNS
Product Type Mesh WiFi 7 System (Router + Satellite)
WiFi Standard IEEE 802.11be (WiFi 7)
Max Theoretical Throughput 11,000 Mbps combined (5,760 + 4,320 + 688)
Radio Streams 2×2 (each band)
Ethernet Ports – Router 1× 2.5 GbE WAN + 3× 2.5 GbE LAN
Ethernet Ports – Satellite 2× 2.5 GbE LAN each satellite
Processor – Router Quad-core 1.5 GHz
Memory – Router 4 GB flash, 2 GB RAM
Dimensions (each unit) 9.88 × 5.28 × 3.95 in (251.2 × 134.2 × 100.4 mm)
Weight (each unit) 2.02 lb (0.916 kg)
Encryption WPA3
Coverage (system) Up to 5,500 ft² (~511 m²
