Detailed Specifications

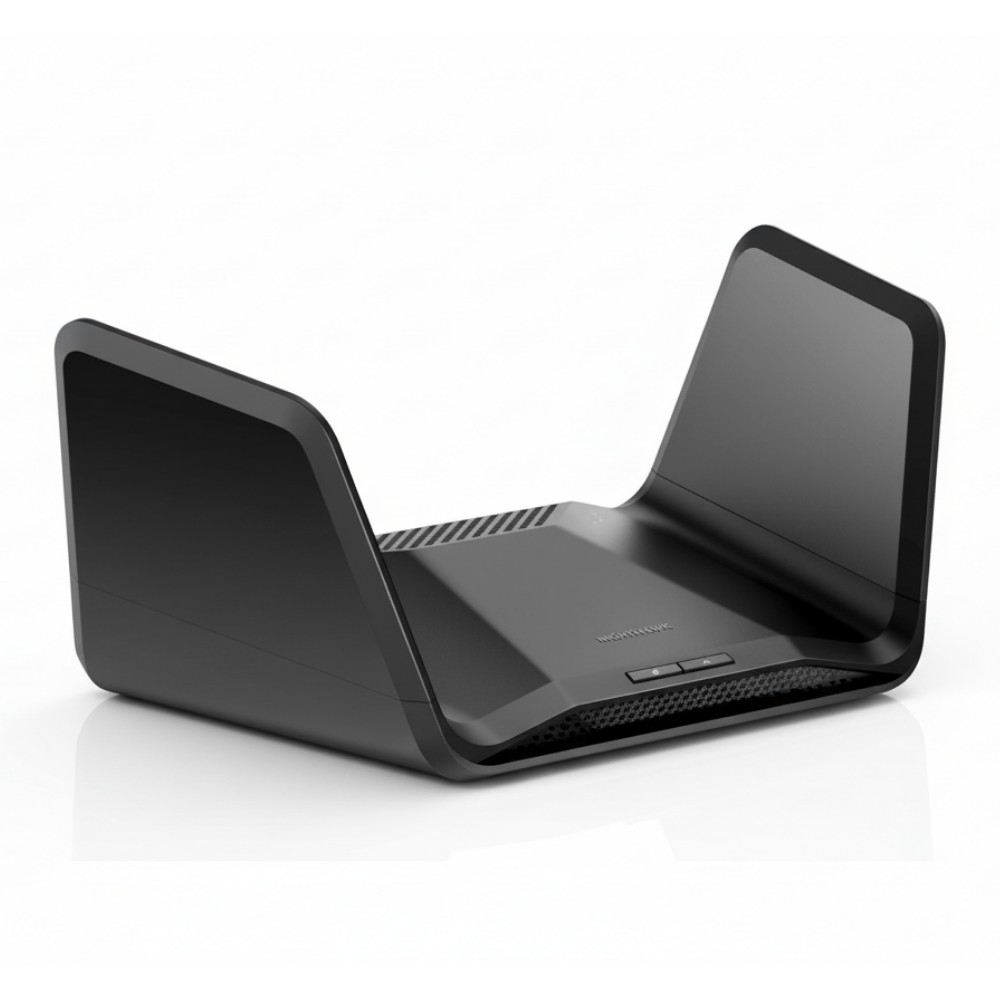

NETGEAR RAXE300-100CNS AXE7800 Tri band WiFi 6E Router
Overview
The NETGEAR RAXE300-100CNS is a tri-band WiFi 6E (802.11ax) router built for homes or small offices wanting to leverage the new 6 GHz band plus legacy bands. It offers combined throughput up to 7.8 Gbps across 2.4, 5, and 6 GHz radios. It connects the WAN link (cable, fiber, etc.) to wired and wireless clients and supports multi-gig and link aggregation for high-speed devices. Central configuration and monitoring occur via the Nighthawk app or web UI, with support for VPN, guest networks, and WPA3 security.
Key Features
Tri-band AXE7800 throughput (600 + 4800 + 2400 Mbps)
1 × 2.5G + 1 × 1G WAN/LAN port + 4 × 1G LAN ports
Quad-core 1.7 GHz CPU for heavy traffic loads
USB-C 3.0 for networked storage or device sharing
| Specification | Value |
|---|
| Brand | NETGEAR |
| Part Number | RAXE300-100CNS |
| Product Type | Tri-band WiFi 6E Router |
| Maximum Throughput | 7.8 Gbps aggregate (600 + 4800 + 2400 Mbps) |
| 2.4 GHz Band | 2×2, up to 600 Mbps |
| 5 GHz Band | 4×4, up to 4800 Mbps |
| 6 GHz Band | 2×2, up to 2400 Mbps |
| Ethernet Interfaces | 1 × 2.5G/1G multi-gig + 1 × 1G + 4 × 1G LAN |
| Link Aggregation | Two 1G LAN ports can be aggregated to 2G |
| USB Interface | 1 × USB-C 3.0 port |
| Processor | Quad-core 1.7 GHz |
| Memory / Flash | 512 MB DDR4 + 256 MB flash |
| Dimensions (folded) | 301.33 × 207.9 × 82.03 mm |
