Detailed Specifications

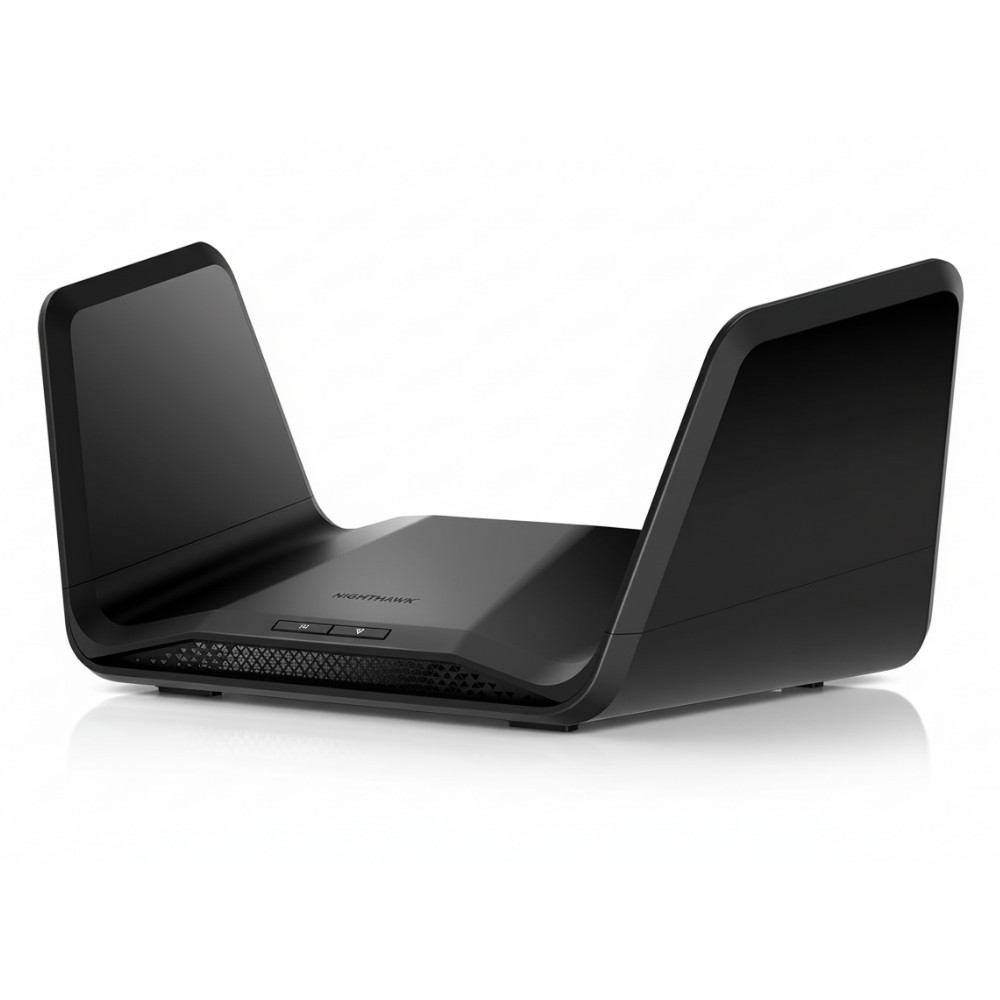

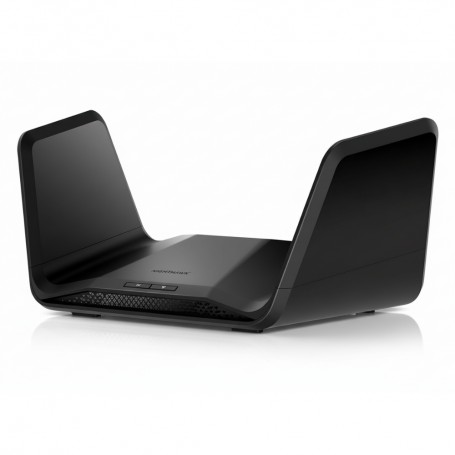

NETGEAR RAX70-100CNS - AX6600 Tri-Band WiFi 6 Router
Overview
The NETGEAR RAX70-100CNS is a tri-band WiFi 6 (802.11ax) router engineered for dense home or small office environments with high device counts. It delivers combined WiFi throughput of 6.6 Gbps across 2.4 GHz and dual 5 GHz bands. It is installed between the WAN (ISP link) and local wired/wireless clients to handle routing, traffic distribution, and wireless capacity. Devices and services are managed via Nighthawk's web UI or mobile app.
Key Features
Tri-band AX6600: 600 + 1200 + 4800 Mbps
Quad-core 1.5 GHz CPU for sustained throughput
Five Gigabit Ethernet ports with link aggregation
USB 3.0 port for network storage sharing
| Value |
|---|
| Brand | NETGEAR |
| Part Number | RAX70-100CNS |
| Product Type | Tri-band WiFi 6 Router |
| Wireless Standard | IEEE 802.11ax (tri-band) |
| Maximum Throughput | 6.6 Gbps (600 Mbps + 1200 Mbps + 4800 Mbps) |
| 2.4 GHz Radio | 2×2, up to 600 Mbps, 20/40 MHz |
| 5 GHz (band 1) | 2×2, up to 1200 Mbps, up to 80 MHz |
| 5 GHz (band 2) | 4×4, up to 4800 Mbps, up to 160 MHz |
| Ethernet Ports | 1 × WAN + 4 × LAN, all 1 Gbps, supports dual-port link aggregation |
| USB Interface | 1 × USB 3.0 port |
| Processor | Quad-core 1.5 GHz |
| Memory / Flash | 512 MB RAM / 256 MB flash |
| Dimensions (folded) | 301 × 207 × 84 mm (11.85 × 8.15 × 3.31 in |
| Dimensions (unfolded) | 347 × 208 × 167 mm (13.66 × 8.19 × 6.57 in) |
| Weight | 1,171 g (2.58 lb) |
| Security | WPA3, WPA2, 128-bit AES, 802.11 |
