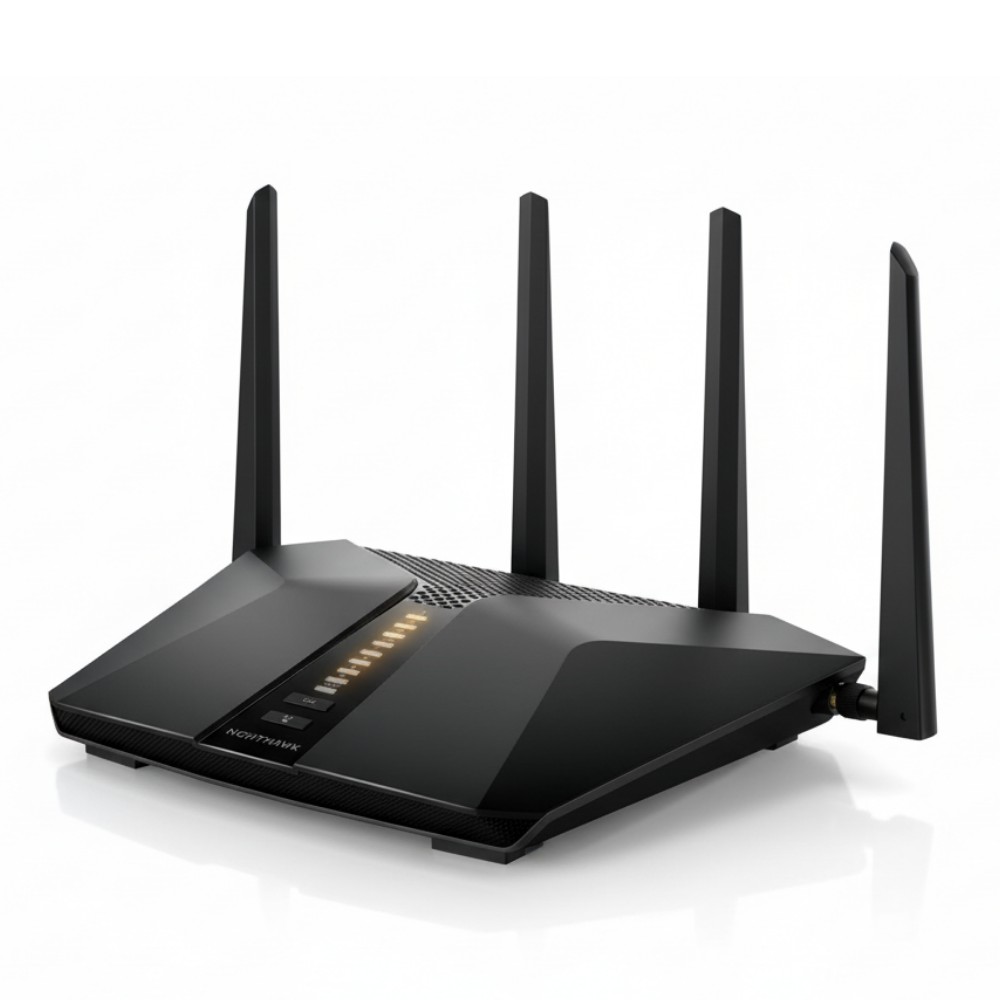

Netgear RAX54S-100NAS Nighthawk Stream Dual Band WiFi Router 6 View larger

Netgear RAX54S-100NAS Stream AX5400 Dual Band WiFi Router 6

New

AX5400 6-stream WiFi 6 router
×




  • New

Detailed Specifications

NETGEAR RAX54S-100NAS – AX5400 WiFi 6 Router

Overview

The NETGEAR RAX54S-100NAS is a dual-band WiFi 6 (802.11ax) router engineered for heavy consumer or small office environments needing high throughput and device concurrency. It can deliver up to 5.4 Gbps combined (574 Mbps on 2.4 GHz + 4800 Mbps on 5 GHz) using 6-stream 1024-QAM and supports 160 MHz channels. It is placed between the WAN link and local endpoints to handle traffic aggregation and routing. The device is managed via the Nighthawk app or web UI, and integrates into NETGEAR’s firmware and security ecosystem.

Key Features

  • Dual-band AX5400 (574 + 4800 Mbps) throughput

  • Triple-core 1.5 GHz CPU for sustained traffic

  • 5 × 1 GbE ports (1 WAN + 4 LAN)

  • Support for WPA3, VPN, guest networks

SpecificationValue
Brand NETGEAR
Part Number RAX54S-100NAS
Product Type WiFi 6 Dual-Band Router (AX5400 class)
WiFi Standard IEEE 802.11ax (dual-band)
Maximum Throughput 5.4 Gbps (574 Mbps @2.4 GHz + 4800 Mbps @5 GHz)
Antenna 4 external antennas
Ethernet Ports 5 × 1 GbE (1 WAN + 4 LAN)
Processor Triple-core 1.5 GHz
USB Interface 1 × USB 3.0 port
Dimensions (W × D × H) 295.8 × 206 × 57.2 mm
Weight 566 g
Security / Encryption
  • WPA3, WPA2, 128-bit AES
