Detailed Specifications

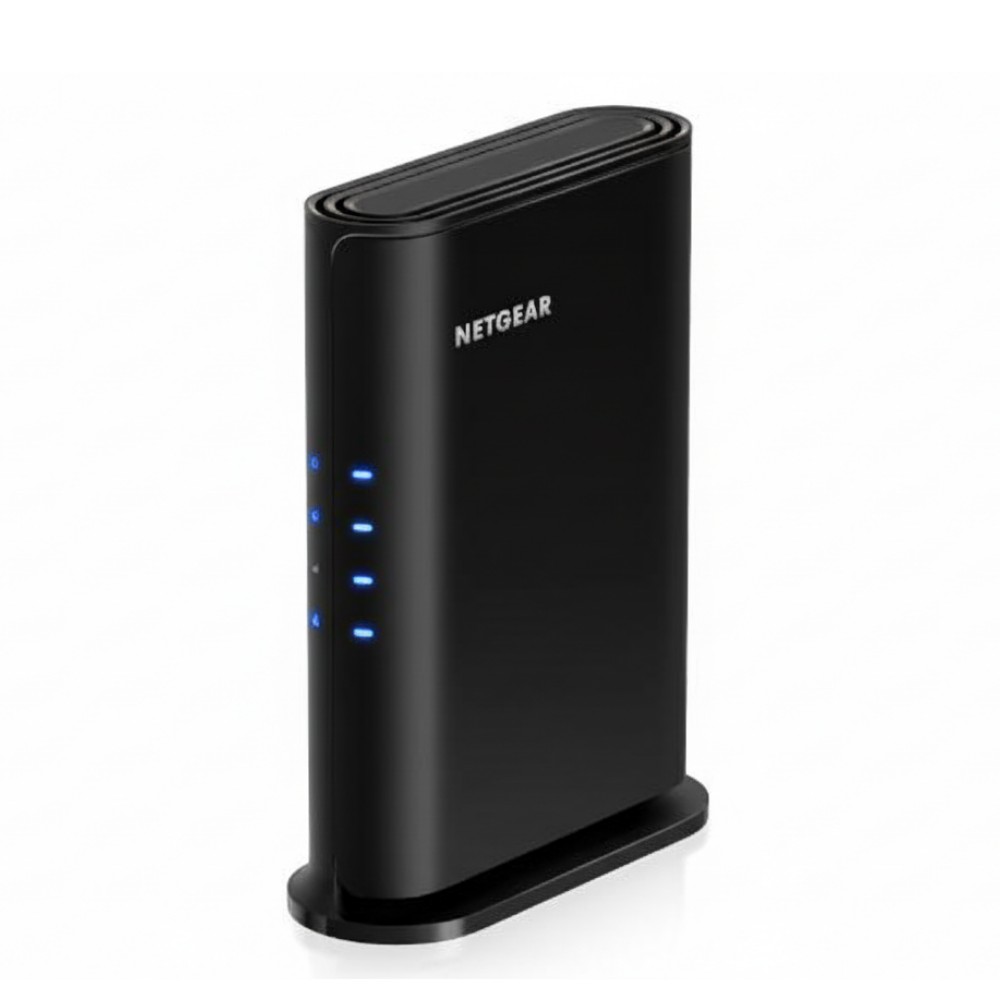

Netgear RAX5-100PAS - Nighthawk AX1800 Wi-Fi 6 Router
Overview :
The Netgear RAX5-100PAS is a professional-grade AX1800 Wi-Fi 6 router engineered to provide stable, high-speed wireless connectivity for small office/home office (SOHO) environments and remote branch locations. As modern workspaces transition to higher device densities, the RAX5 utilizes the 802.11ax standard to deliver an aggregate throughput of up to 1.8Gbps. This ensures that bandwidth-intensive applications, such as 4K video conferencing and large file transfers, operate without the latency typical of legacy Wi-Fi 5 hardware.
At its core, the RAX5-100PAS features a 1.5GHz quad-core processor designed to manage complex networking tasks and data routing efficiently. By offloading packet processing, the hardware maintains consistent performance even when multiple users are active. The integration of OFDMA (Orthogonal Frequency-Division Multiple Access) technology allows the router to schedule traffic for multiple devices simultaneously, significantly reducing congestion and improving overall network capacity. For wired infrastructure, the unit provides five Gigabit Ethernet ports, facilitating high-speed connections for local servers, NAS devices, or dedicated workstations. Security is handled via the latest WPA3 protocol, ensuring that edge deployments remain protected against modern credential-based threats.Key Features :
4-Stream Wi-Fi 6 for 1.8Gbps total throughput.
Quad-core 1.5GHz processor for low-latency routing.
OFDMA technology improves efficiency for IoT devices.
Five Gigabit Ethernet ports for high-speed wiring.
Specifications :
| Brand | Netgear |
| Part Number | RAX5-100PAS |
| Product Type | Wi-Fi 6 Router |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6) Dual-Band |
| Total Throughput | 1.8 Gbps (600 + 1200 Mbps) |
| Processor | 1.5GHz Quad-Core |
| Ethernet Ports | 5 x 10/100/1000 Mbps (1 WAN, 4 LAN) |
| Security | WPA3, 128-bit AES encryption |
| Memory | 256MB Flash, 512MB RAM |
| Dimensions | 236 x 184 x 57 mm |
| Weight | 500 g |
| Management | Nighthawk App, Web GUI |
| Power Supply | 12V / 1.5A |
