Detailed Specifications

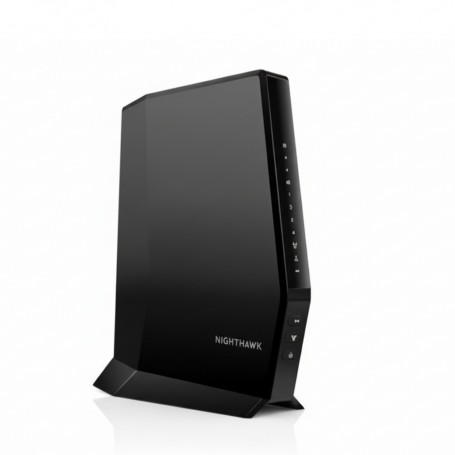

Netgear CAX30-200NAS - AX2700 WiFi 6 DOCSIS 3.1 Modem Router
Overview :
The Netgear CAX30-200NAS is a high-performance converged networking gateway designed to eliminate the throughput bottlenecks often found in small office and professional home environments. By integrating a DOCSIS 3.1 cable modem with an AX2700 WiFi 6 router, this unit provides a streamlined hardware footprint while delivering multi-gigabit internet support. It is engineered for deployment at the network edge, serving as the primary interface between a service provider's coaxial infrastructure and the local local area network (LAN).
This gateway utilizes Orthogonal Frequency-Division Multiple Access (OFDMA) to manage data transmission across multiple devices simultaneously, significantly reducing latency compared to legacy WiFi 5 systems. With a 1.5GHz dual-core processor, the CAX30 handles high-bandwidth tasks such as 4K video conferencing, large-scale cloud backups, and VoIP traffic without performance degradation. Security is prioritized through WPA3 encryption and integrated Netgear Armor, providing essential perimeter protection against modern cyber threats. For wired infrastructure, the four Gigabit Ethernet ports allow for stable, low-latency connections to workstations, NAS units, or network switches. This all-in-one solution simplifies management by consolidating modem and router functions into a single interface, reducing equipment rental costs and troubleshooting complexity.Key Features :
Integrated DOCSIS 3.1 modem for multi-gigabit speeds.
Dual-band WiFi 6 with throughput up to 2.7Gbps.
Four Gigabit Ethernet ports for wired LAN expansion.
OFDMA technology improves efficiency for 20+ devices.
Specifications :
| Brand | Netgear |
| Part Number | CAX30-200NAS |
| Product Type | WiFi 6 Cable Modem Router |
| Modem Standard | DOCSIS 3.1 (Backwards compatible with 3.0) |
| WiFi Standard | 802.11ax (WiFi 6) Dual-Band |
| Total Throughput | AX2700 (Up to 2.7 Gbps) |
| Processor | 1.5GHz Dual-Core |
| Ethernet Ports | 4 x 10/100/1000 Mbps Gigabit LAN |
| USB Ports | 1 x USB 3.0 Port |
| Channel Bonding | 32x8 (DOCSIS 3.0) / 2x2 (DOCSIS 3.1) |
| Security | WPA/WPA2/WPA3, AES encryption |
| Dimensions | 254 x 211 x 137 mm |
| Weight | 0.95 kg |
