Detailed Specifications

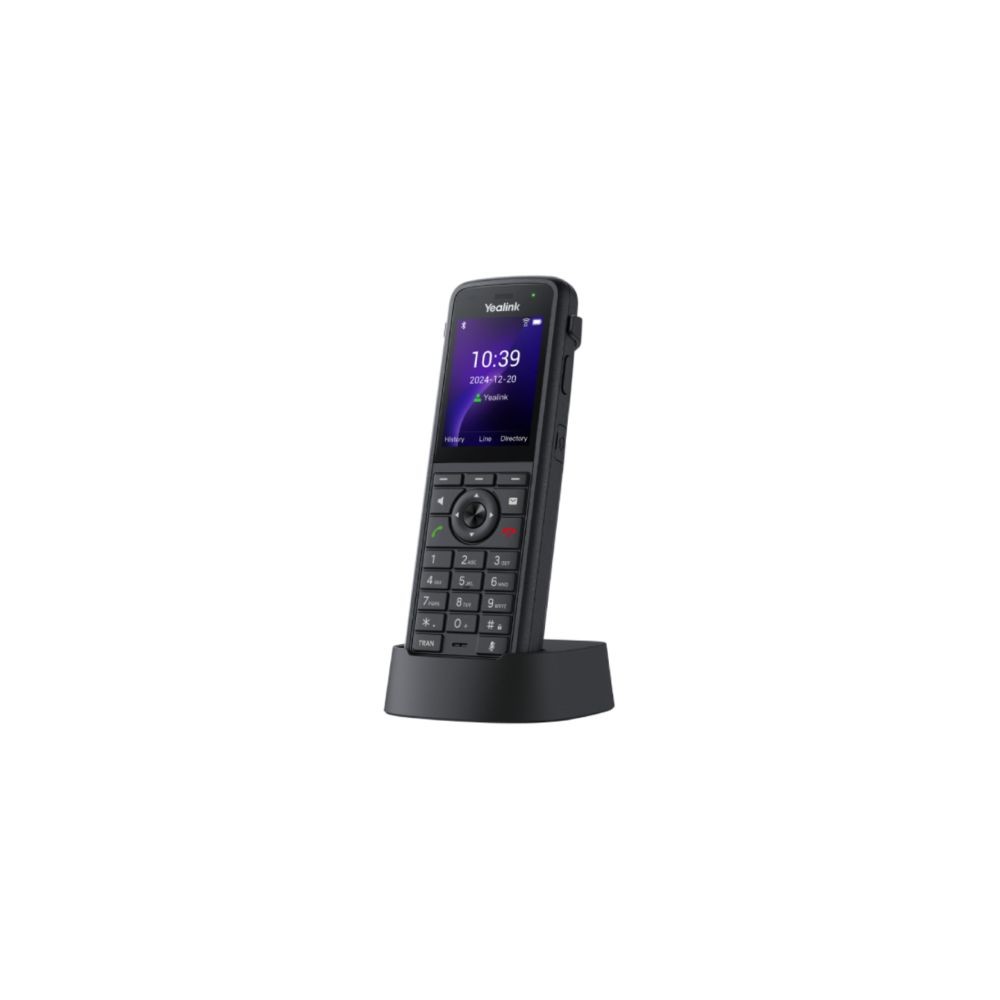

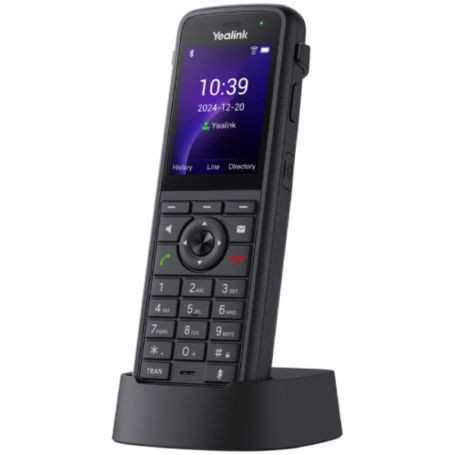

Yealink AX86R - Ruggedized Wi-Fi Handset
Overview :
The Yealink AX86R is a ruggedized Wi-Fi SIP handset designed for mobile workers operating in demanding environments. It is commonly deployed in healthcare facilities, warehouses, manufacturing plants, retail stores, transportation hubs, and educational campuses where reliable wireless voice communications and workforce mobility are critical.
Built with Wi-Fi 6 connectivity and seamless 802.11k/v/r roaming support, the AX86R enables users to move throughout large facilities without interrupting active calls. The handset supports up to four SIP accounts and five-way local conferencing, making it suitable for enterprise VoIP and unified communications deployments.
The device features IP67-rated protection against water and dust ingress, drop resistance up to 1.8 meters, AI noise cancellation, Acoustic Shield technology, and HD voice capabilities. Dedicated emergency functions, including a red alarm button and automatic safety alarms, provide additional protection for personnel working in high-risk environments.
The AX86R is designed for wireless SIP communications over enterprise Wi-Fi networks. It is not intended for organizations requiring DECT infrastructure or traditional desktop IP phone deployments.
Key Features :
- IP67 protection with 1.8 m drop resistance
- Dual-band Wi-Fi 6 with seamless roaming
- AI noise cancellation and HD voice audio
- Emergency alarm button enhances worker safety
- Supports 4 SIP accounts and 5-way conference
Specifications :
| Specification | Details |
|---|
| Brand | Yealink |
| Part Number | AX86R |
| Product Type | Ruggedized Wi-Fi SIP Handset |
| SIP Accounts | Up to 4 SIP Accounts |
| Conferencing | 5-Way Local Conference |
| Wireless Standard | Dual-Band Wi-Fi 6 |
| Roaming Support | 802.11k/v/r Seamless Roaming |
| Bluetooth | Bluetooth 5.0 |
| Display Size | 2.4-inch TFT Color Display |
| Display Resolution | 240 × 320 Pixels |
| Protection Rating | IP67 |
| Drop Resistance | Up to 1.8 m |
| Battery Capacity | 3100 mAh |
| Talk Time | Up to 13 Hours |
| Standby Time | Up to 300 Hours |
| Headset Interface | 3.5 mm Headset Jack |
