Detailed Specifications

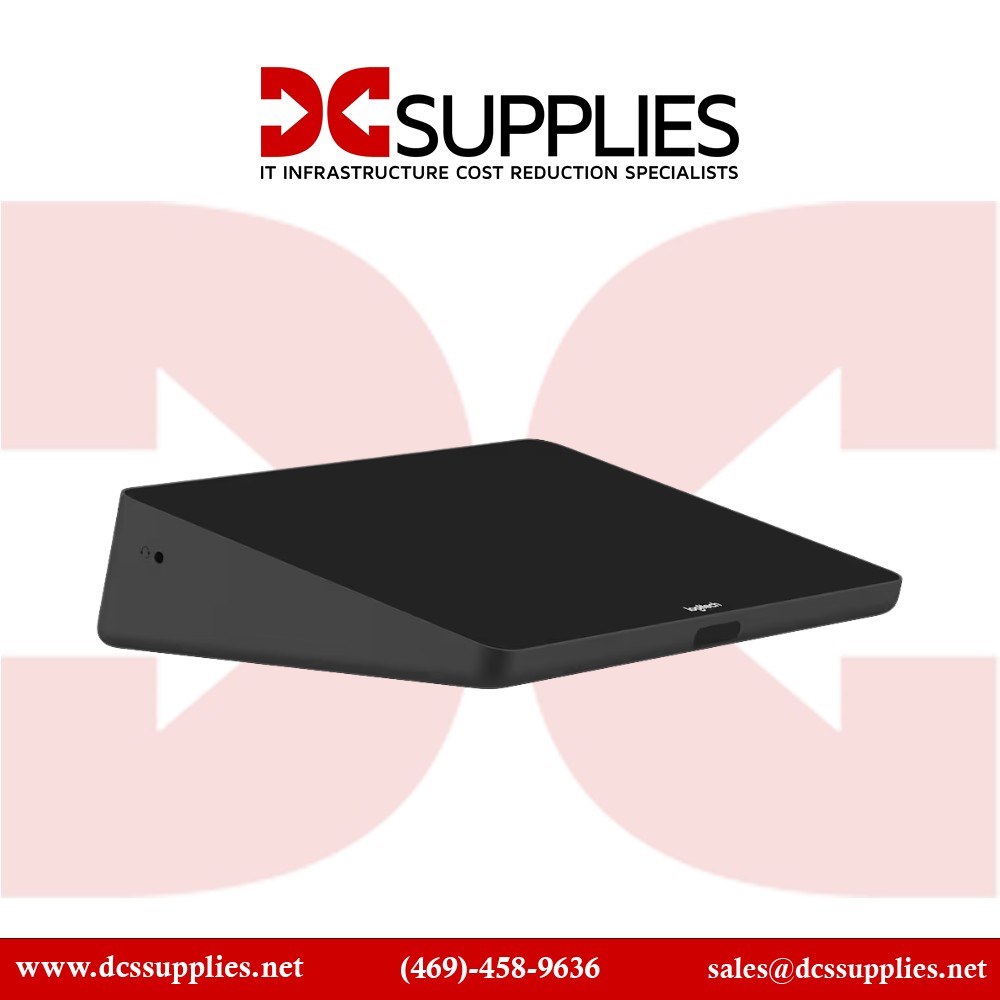

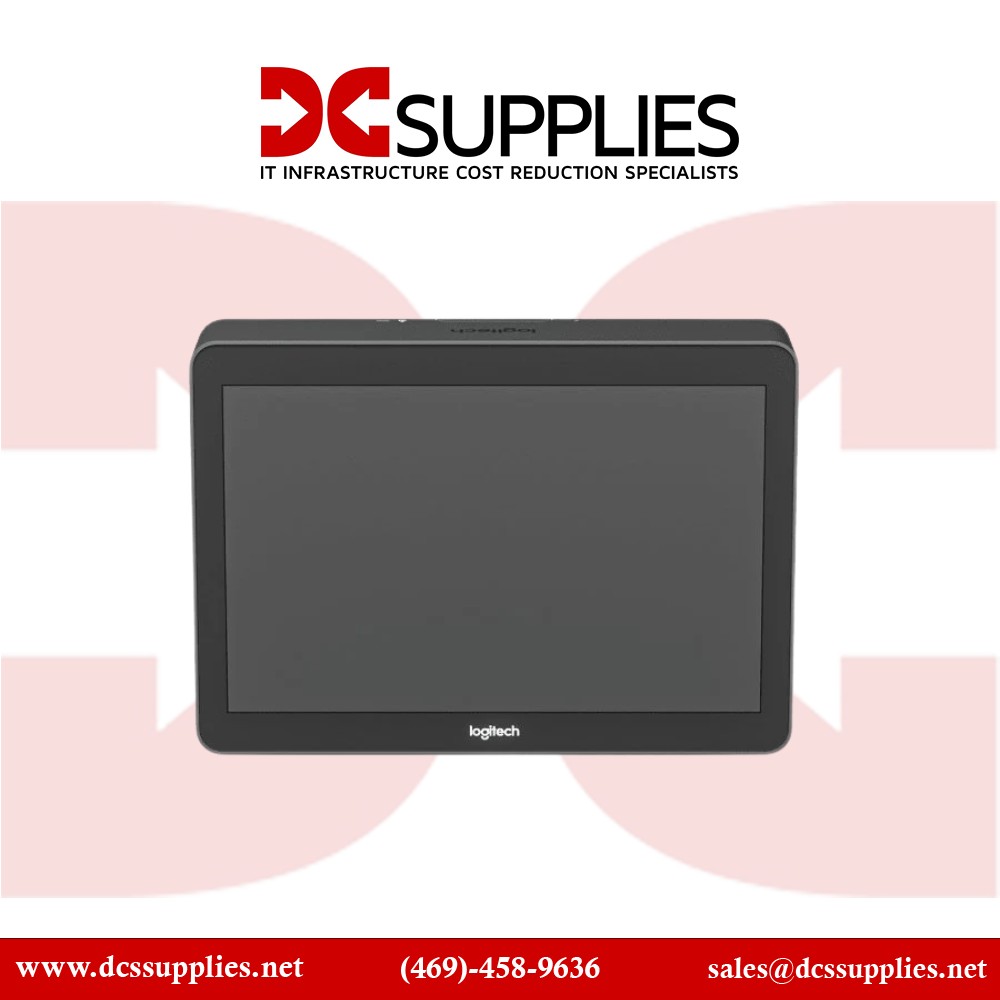

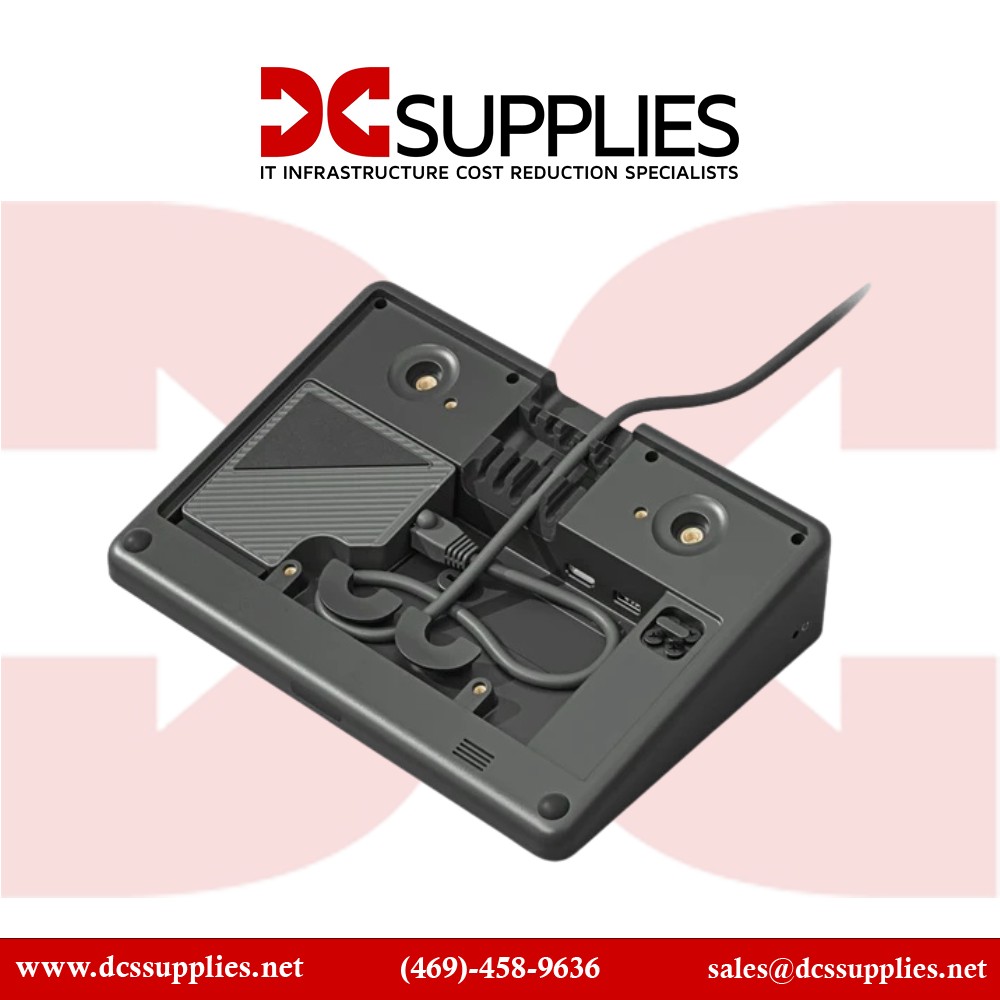

Logitech 939-001950 – Touch Controller for Meeting Rooms
Overview :
The Logitech 939‑001950 is a dedicated meeting‑room touch controller designed for conference environments where IT professionals need streamlined control and integration. It features a 10.1″ capacitive touchscreen, a 14° viewing angle, and anti‑glare/oleophobic coating to support consistent use by technicians and room operators. This device connects via USB to a host PC or appliance and supports HDMI input for wired content sharing, making it suitable for data‑centre‑backed meeting room deployments, medium and large conference rooms, or campus boardrooms. Its included Cat5e kit allows cable runs up to 40 m (131 ft), enabling flexible placement away from the compute unit. The controller integrates a motion sensor for always‑ready operation and is compatible with Microsoft Teams Rooms, Zoom Rooms and Google Meet platforms under Logitech’s video‑conferencing room‑solution frameworks.
Key Features :
10.1″ capacitive multi‑touch display, 1280×800 resolution
HDMI‑type A input for 1080p content sharing
USB Type‑C to host + USB Type‑A for accessories
Cat5e kit enables data and power over one cable up to 40 m
Built‑in motion sensor and ultrasonic speaker for seamless room readiness
Specifications :
| Specification | Value |
|---|
| Brand | Logitech |
| Part Number | 939‑001950 |
| Product Type | Touch Controller for Meeting Rooms |
| Display Size | 10.1 in diagonal |
| Display Resolution | 1280 × 800 pixels |
| Viewing Angle | 14° tilt from table |
| Dimensions (H×W×D) | 2.28 × 9.6 × 7.0 in (58 × 244 × 179 mm) |
| Weight | 2.76 lbs (1.25 kg) |
| Interface Ports | USB Type‑C (host), USB Type‑A (accessory), HDMI input, 3.5mm headset jack |
| Mounting Interface | 100 × 100 mm VESA FDMI |
| Cable Run Support | Cat5e (or higher) up to 40 m (131 ft) |
| Motion Sensor | PIR (passive infrared) |
| Security Slots | 2 × Kensington lock slots |
| Operating System Support | Windows 10+, ChromeOS 80+ |
| Warranty | 2‑year limited hardware warranty |
