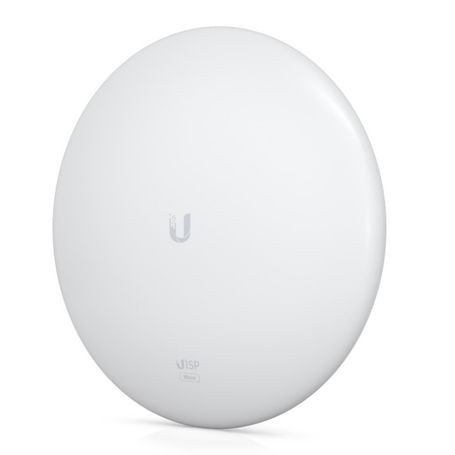

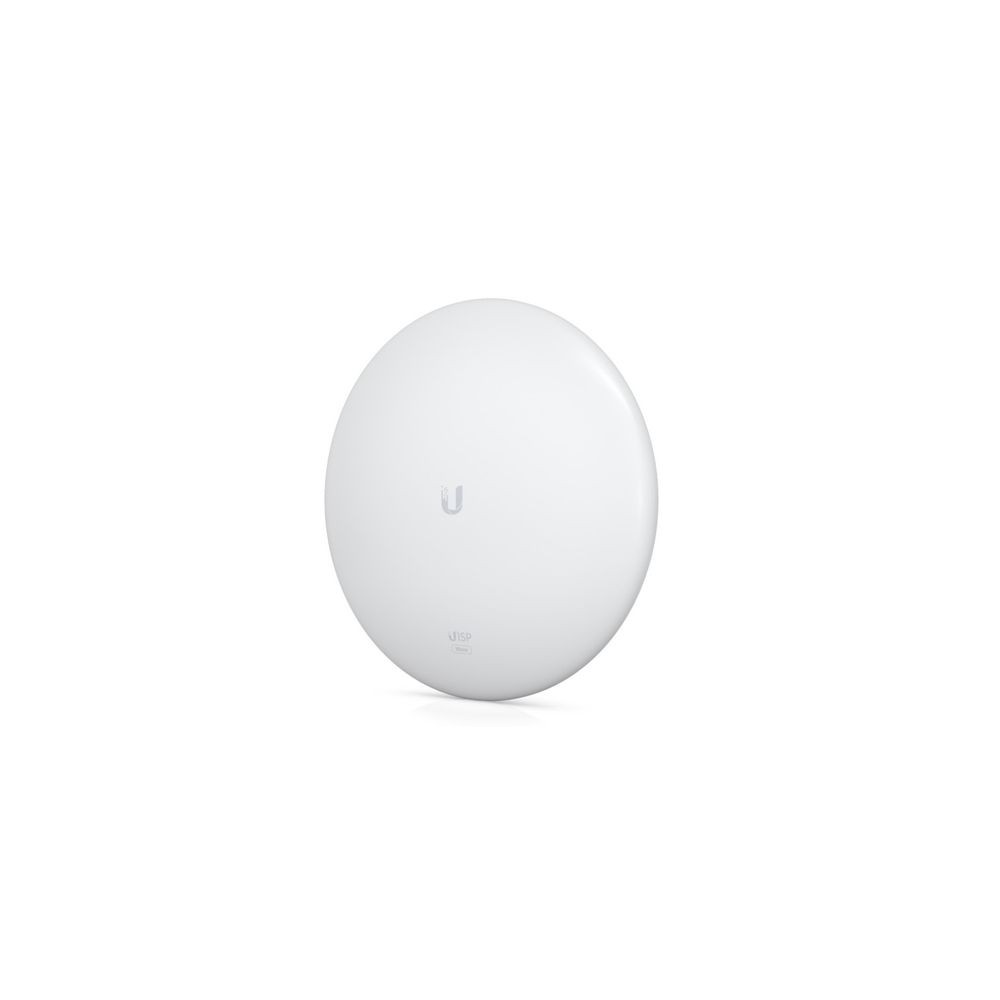

Ubiquiti WAVE-LR UISP Wave Long-Range 60 GHz 2 Gbps Wireless Link
Overview
The Ubiquiti WAVE-LR is the UISP Wave Long-Range wireless device designed for high-capacity outdoor wireless connectivity. It operates primarily in the 57–71 GHz band and provides up to 2 Gbps total throughput with a maximum range of 8+ km under Ubiquiti's specified conditions. The radio supports PtP, PtMP, and Station operating modes and includes a 5 GHz WiFi 6 radio for backup connectivity.
60 GHz Wireless Connectivity
The primary Wave radio operates from 57 to 71 GHz, depending on regulatory region, with 2160, 1080, and 540 MHz channel bandwidth options. Ubiquiti specifies 16QAM and QPSK modulation, 46 dBi antenna gain, vertically linear polarization, and approximately 1° 3 dB beamwidth in both azimuth and elevation.
5 GHz Backup Radio
The WAVE-LR includes an 802.11ax WiFi 6 backup radio operating in the 5 GHz range. The backup radio supports 20, 40, and 80 MHz channel bandwidths and provides a 22 dBi antenna gain with dual-linear polarization. This secondary radio provides an alternative RF path when the primary 60 GHz link is affected by environmental conditions or link availability.
Networking and Management
The device provides one Gigabit Ethernet RJ45 port for network connectivity and management. Ubiquiti supports UISP management along with tools and services including antenna alignment, site survey, speed test, traceroute, ping, SNMP, NTP, ping watchdog, and cable testing. The unit also includes GPS and a factory-reset button.
Outdoor Deployment
The WAVE-LR uses a UV-stabilized polycarbonate enclosure with a stainless-steel mounting system and is designed for pole mounting on poles from 25 to 76.2 mm (1 to 3 inches) in diameter. Ubiquiti specifies IPX6 weatherproofing, an operating temperature range of -40 to 60°C, and operation in 5 to 95% noncondensing humidity.
Key Features
- 57–71 GHz primary radio with up to 2 Gbps total throughput
- Maximum specified range of 8+ km (5 mi)
- 46 dBi primary antenna gain with vertically linear polarization
- 802.11ax WiFi 6 5 GHz backup radio with 22 dBi antenna gain
- UISP management with PtP, PtMP, and Station operating modes
Applications
The WAVE-LR can be deployed for outdoor wireless backhaul where high-capacity connectivity is required across long distances. Its operating modes support point-to-point links, point-to-multipoint deployments, and station configurations, while the integrated 5 GHz radio provides a backup wireless path.
DC Supplies Product Note
The WAVE-LR is a directional outdoor radio whose specified 8+ km range and 2 Gbps throughput depend on deployment conditions and link configuration. For long-distance installations, plan the mounting location, antenna alignment, regulatory frequency availability, and unobstructed RF path before deployment.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | WAVE-LR |
| Product Type | 60 GHz Long-Range Wireless Radio |
| Product Name | UISP Wave Long-Range |
| Primary Operating Frequency | 57–71 GHz |
| Primary Channel Bandwidth | 2160, 1080, 540 MHz |
| Total Throughput | 2 Gbps |
| Maximum Range | 8+ km (5 mi) |
| Primary Modulation | 16QAM, QPSK |
| Primary Antenna Gain | 46 dBi |
| Primary Polarization | Vertically linear |
| Primary Beamwidth | Azimuth: 3 dB 1°; Elevation: 3 dB 1° |
| Backup WiFi Standard | 802.11ax (WiFi 6) |
| Backup Radio Frequency | 5.150–5.875 GHz worldwide |
| Backup Channel Bandwidth | 20, 40, 80 MHz |
| Backup Antenna Gain | 22 dBi |
| Networking Interface | 1 × Gigabit Ethernet RJ45 |
| Operating Modes | PtP, PtMP, Station |
| Power Method | Passive PoE 4-pair; passive PoE 2-pair |
| Supported Voltage | 44–54V DC; 22–27V DC |
| Maximum Power Consumption | 20W |
| Included Power Supply | 48V DC, 0.65A Gigabit PoE adapter |
| GPS | Yes |
| Weatherproofing | IPX6 |
| Mounting | Pole mount |
| Supported Pole Diameter | 25–76.2 mm (1–3") |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | Stainless steel |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Operating Humidity | 5–95% noncondensing |
| Dimensions | Ø424.4 × 166.2 mm (Ø16.7 × 6.5") |
| Weight | 2.6 kg (5.7 lb) without mount; 3.8 kg (8.4 lb) with mount |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| UISP Requirement | UISP 1.4.5 or later |
Frequently Asked Questions
What is the maximum throughput of the WAVE-LR?
Ubiquiti specifies total throughput of up to 2 Gbps, with 1 Gbps duplex operation.
What is the maximum range of the WAVE-LR?
Ubiquiti specifies a maximum range of 8+ km (5 mi).
Does the WAVE-LR support 5 GHz WiFi?
Yes. The WAVE-LR includes an 802.11ax WiFi 6 radio operating as a backup RF system in the 5 GHz band.
What operating modes does the WAVE-LR support?
The WAVE-LR supports Point-to-Point (PtP), Point-to-Multipoint (PtMP), and Station operating modes.
How is the WAVE-LR powered?
The device supports passive PoE using either 4-pair or 2-pair powering, with 44–54V DC specified for 4-pair operation and 22–27V DC for 2-pair operation. Ubiquiti specifies a 48V DC, 0.65A Gigabit PoE adapter as included.
Is the WAVE-LR designed for outdoor installation?
Yes. It has an IPX6 enclosure, UV-stabilized polycarbonate housing, stainless-steel mounting hardware, and an operating temperature range of -40 to 60°C.
