Detailed Specifications

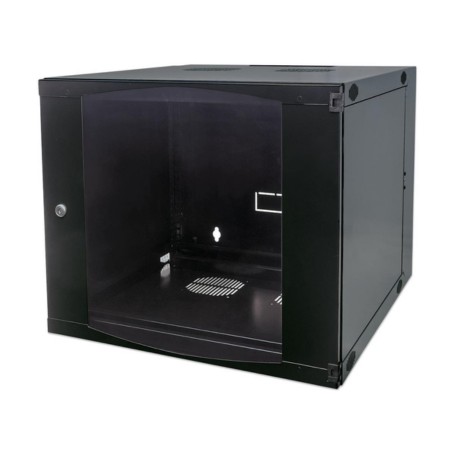

Intellinet 713825 6U 19-inch Double Section Wall Mount Cabinet
Overview :
The Intellinet 713825 is a 6U double-section 19-inch wall mount cabinet designed to securely house network, telecommunications, and security equipment in space-constrained IT environments. Its swing-out rear section provides convenient access to the rear of installed equipment, simplifying cable routing and maintenance.
Designed for standard 19-inch rack-mounted equipment, the cabinet features a flat-pack design for economical transportation and on-site assembly. It incorporates a lockable 4 mm tempered glass front door, adjustable mounting rails, top and rear cable entry points, and a cold-rolled galvanized SPCC steel enclosure supporting a maximum static load of 30 kg.
This cabinet is well suited for branch offices, network closets, CCTV systems, and edge deployments requiring secure wall-mounted infrastructure. It is intended for equipment within its 30 kg static load limit and 385 mm usable mounting depth.
Key Features :
- Supports standard 19-inch rack equipment
- Swing-out rear frame simplifies maintenance
- 30 kg static load for network devices
- Lockable 4 mm tempered glass front door
- Flat-pack design reduces shipping volume
Specifications :
| Specification | Value |
|---|
| Brand | Intellinet |
| Part Number | 713825 |
| Product Type | 6U Double Section Wall Mount Cabinet |
| Rack Standard | 19-inch |
| Rack Capacity | 6U |
| Cabinet Depth | 600 mm (23.62 in.) |
| External Dimensions | 327 × 540 × 600 mm (H × W × D) |
| Usable Mounting Depth | 385 mm (15.16 in.) |
| Maximum Static Load | 30 kg (66 lb) |
| Construction Material | Cold-rolled galvanized SPCC steel |
| Front Door | 4 mm tempered safety glass, lockable, reversible |
| Cable Entry | Top and rear panels |
| Compliance | ANSI/EIA RS-310-D, IEC 60297-2, DIN 41494 Part 1 & Part 7 |
| Color | Black |
| Package Configuration | Flat Pack (Unassembled) |
