Detailed Specifications

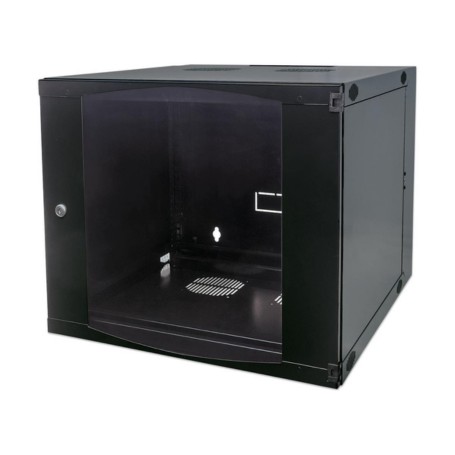

Intellinet 713849 9U 19-inch Double Section Wall Mount Cabinet
Overview :
The Intellinet 713849 is a 9U double-section 19-inch wall mount cabinet designed for secure installation of network and telecommunications equipment in locations where floor-standing racks are not practical. Its hinged swing-out rear section provides convenient access to rear-mounted equipment and cable routing, simplifying installation and maintenance.
Designed for standard 19-inch rack equipment, the cabinet features adjustable mounting rails, a tempered glass front door, cable entry through the top and rear panels, and a maximum static load capacity of 30 kg. It ships flat-packed for efficient transportation and on-site assembly.
The cabinet is well suited for branch offices, telecommunications rooms, security systems, network closets, and edge deployments supporting switches, patch panels, and rack-mounted accessories. It should not be used for installations exceeding the specified load capacity or requiring greater rack depth than the supported mounting range.
Key Features :
- 9U rack space for standard 19-inch equipment
- Swing-out frame enables easy rear access
- 30 kg static load for network equipment
- Tempered glass lockable front door
- Flat-pack design simplifies transportation
Specifications :
| Specification | Value |
|---|
| Brand | Intellinet |
| Part Number | 713849 |
| Product Type | 9U Double Section Wall Mount Cabinet |
| Rack Standard | 19-inch |
| Rack Capacity | 9U |
| Cabinet Depth | 600 mm (23.62 in.) |
| External Dimensions | 460 × 540 × 600 mm (H × W × D) |
| Adjustable Mounting Depth | 279-359 mm (10.98-14.13 in.) |
| Maximum Static Load | 30 kg (66 lb) |
| Construction Material | Cold-rolled galvanized SPCC steel |
| Front Door | 4 mm tempered safety glass |
| Cable Entry | Top and rear panels |
| Compliance | ANSI/EIA RS-310-D, IEC 60297-2, DIN 41494 Part 1 & Part 7 |
| Color | Black (RAL 9004) |
| Package Configuration | Flat Pack (Unassembled) |
