Detailed Specifications

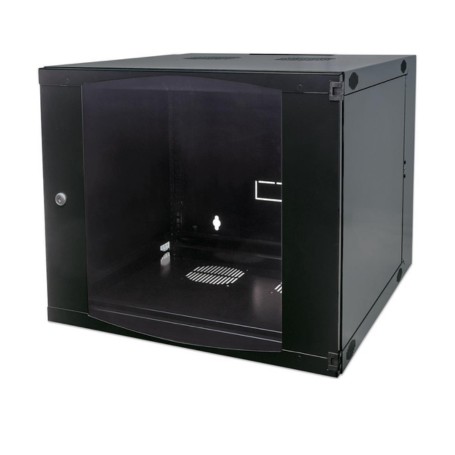

Intellinet 713887 15U 19-inch Double Section Wall Mount Cabinet
Overview :
The Intellinet 713887 is a 15U double-section 19-inch wall mount cabinet designed to securely house networking and IT equipment in environments where floor-standing racks are impractical. Its swing-frame design provides convenient rear access for cable management and equipment maintenance.
This cabinet supports standard 19-inch rack equipment and features a maximum static load capacity of 30 kg. It is supplied as a flat-pack unit for reduced shipping volume and on-site assembly. The enclosure includes a tempered glass front door, adjustable mounting rails, and cable entry points through the top and rear panels.
Suitable for network closets, branch offices, surveillance installations, telecommunications rooms, and edge deployments, the cabinet accommodates switches, patch panels, and other rack-mounted hardware. It is intended for wall-mounted installations and should not be used where equipment weight exceeds the specified 30 kg static load or where greater rack depth is required.
Key Features :
- 15U rack space for standard 19-inch equipment
- Swing-frame design enables rear equipment access
- 30 kg static load supports network hardware
- Flat-pack construction reduces shipping volume
- Tempered glass door with lockable front access
Specifications :
| Specification | Value |
|---|
| Brand | Intellinet |
| Part Number | 713887 |
| Product Type | 15U Double Section Wall Mount Cabinet |
| Rack Standard | 19-inch |
| Rack Capacity | 15U |
| Cabinet Depth | 600 mm (23.62 in.) |
| Cabinet Dimensions | 725 × 540 × 600 mm (H × W × D) |
| Usable Mounting Depth | 385 mm (15.16 in.) |
| Maximum Static Load | 30 kg (66 lb) |
| Construction Material | Cold-rolled galvanized SPCC steel |
| Front Door | 4 mm tempered safety glass |
| Cable Entry | Top and rear panels |
| Compliance | ANSI/EIA RS-310-D, IEC 60297-2, DIN 41494 Part 1 & Part 7 |
| Color | Black (RAL 7021) |
| Package Configuration | Flat Pack (Unassembled) |
