Detailed Specifications

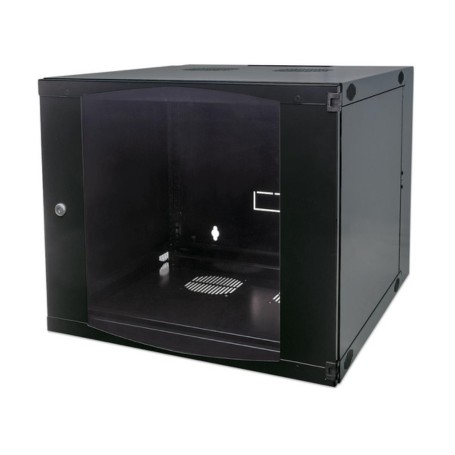

Intellinet 713863 12U 19-inch Wall Mount Cabinet
Overview :
The Intellinet 713863 is a 19-inch double-section wall mount cabinet designed for housing network equipment, patch panels, switches, and other rack-mounted components in environments where floor space is limited. It is used by IT teams, branch offices, edge deployments, and small network rooms requiring organized equipment protection.
The cabinet provides 12U of rack space with a closed enclosure design, supporting standard 19-inch rack equipment. The double-section swing-out structure provides rear access for easier maintenance, while the 4 mm toughened glass front door allows equipment visibility.
The 713863 is suitable for structured cabling, network distribution, and edge IT installations. It should not be used for high-density server deployments, heavy equipment loads beyond its rated capacity, or installations requiring full-size floor-standing rack depth.
Key Features :
- 12U rack capacity for compact network deployments
- 19-inch standard mounting for IT equipment
- Double-section design improves rear access
- Supports up to 30 kg static equipment load
- Flat-pack design simplifies storage and transport
Specifications :
| Specification | Details |
|---|
| Brand | Intellinet |
| Part Number | 713863 |
| Product Type | 19-inch Double Section Wall Mount Cabinet |
| Rack Capacity | 12U |
| Rack Standard | 19-inch |
| Mounting Type | Wall Mount |
| Cabinet Type | Enclosed Rack Cabinet |
| Material | Cold-rolled galvanized SPCC steel |
| Front Door | 4 mm toughened glass |
| Usable Depth | 385 mm (15.16 inches) |
| Overall Dimensions | 593 x 540 x 600 mm |
| Maximum Static Load | 30 kg |
| Color | Black RAL7021 |
| Compliance | ANSI/EIA RS-310-D, IEC60297-2, DIN41494 |
| Packaging Type | Flat Pack |
