Detailed Specifications

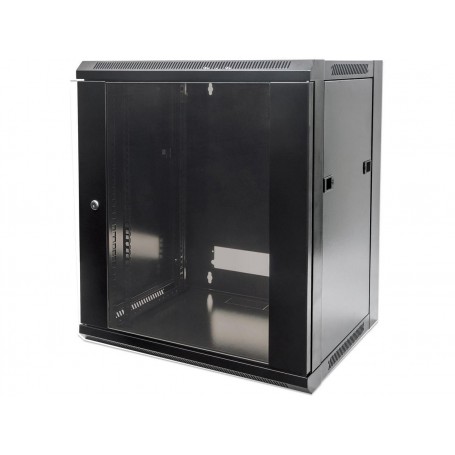

INTELLINET 711777 - 19" Wallmount Cabinet, 9U
Overview :
The INTELLINET 711777 19" Wallmount Cabinet provides a secure, space-saving enclosure for housing networking equipment, patch panels, switches, and AV components.
Featuring a 9U rack height with a 450 mm overall depth, this flat-packed enclosure reduces shipping costs while offering easy assembly on-site. Built from cold-rolled galvanized SPCC steel with an antistatic powder coating, it supports up to 60 kg (132 lbs) of static load. The lockable, reversible tempered-glass front door opens beyond 180° for easy access, while removable side panels and top/rear cable entry points simplify installation and routine maintenance.
Key Features :
Designed for standard 19" rackmount applications with a 9U capacity.
Maximum static load capacity of 60 kg (132 lbs).
Reversible lockable front door with tempered glass opens more than 180°.
Easily removable side panels provide multi-directional access for cabling and maintenance.
Flexible cable entry options via the top and rear panels.
Ships flatpacked to save transportation costs and storage space.
Specifications :
| Attribute | Specification |
| Brand | INTELLINET |
| Part Number | 711777 |
| Product Type | 19" Wallmount Network Cabinet |
| Rack Height | 9U |
| Rack Width | 19 in. |
| Usable Depth | 260 mm (10.24 in.) |
| Static Load Capacity | 60 kg (132 lbs) |
| Material | Cold-Rolled Galvanized SPCC Steel (up to 1.2 mm) |
| Door Type | Tempered Glass (Reversible, >180° Opening) |
| Color | Black (RAL 9005) |
| Compliance Standards | ANSI/EIA RS-310-D, IEC 60297-2, DIN 41494 |
| Dimensions (W x H x D) | 570 x 500 x 450 mm (22.4 x 19.7 x 17.7 in.) |
| Weight | Approx. 19 kg (41.8 lbs) |
