Detailed Specifications

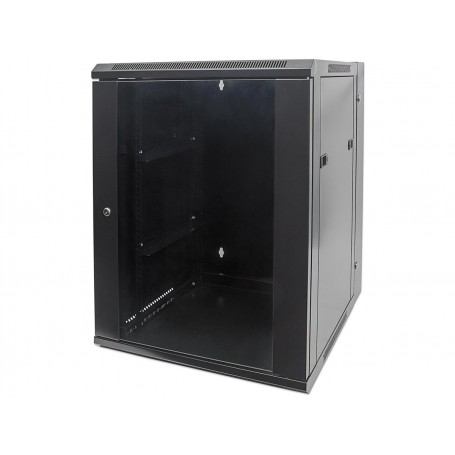

INTELLINET 711845 - 19" Double-Section Wallmount Cabinet, 9U
Overview :
The INTELLINET 711845 19" Double-Section Wallmount Cabinet provides a flexible, swing-out enclosure for housing network switches, patch panels, and AV equipment.
Featuring a dual-section design, the cabinet swings away from the wall-mounted back section to grant effortless access to the rear of installed devices for maintenance and rewiring. Built from cold-rolled galvanized SPCC steel with an antistatic powder coating, it supports up to 30 kg (66 lbs) of static load. The lockable, reversible tempered-glass front door opens beyond 180°, while removable side panels and top cable entries streamline installation. It ships fully assembled for immediate deployment.
Key Features :
Swing-out double-section design allows full rear access to network gear.
9U rack height compatible with standard 19" rackmount equipment.
Maximum static load capacity of 30 kg (66 lbs).
Reversible lockable front door with tempered glass opens greater than 180°.
Removable side panels and top panel cable entry ports for easy cable management.
Ships fully assembled for quick, hassle-free installation.
Specifications :
| Attribute | Specification |
| Brand | INTELLINET |
| Part Number | 711845 |
| Product Type | 19" Double-Section Wallmount Cabinet |
| Rack Height | 9U |
| Rack Width | 19 in. |
| Overall Depth | 550 mm (21.7 in.) |
| Usable Depth | 425 mm (16.73 in.) |
| Static Load Capacity | 30 kg (66 lbs) |
| Material | Cold-Rolled Galvanized SPCC Steel (up to 1.2 mm) |
| Door Type | Tempered Glass (Reversible, >180° Opening) |
| Color | Black |
| Dimensions (W x H x D) | 600 x 500 x 550 mm (23.6 x 19.7 x 21.7 in.) |
| Weight | 21 kg (46.3 lbs) |
