Detailed Specifications

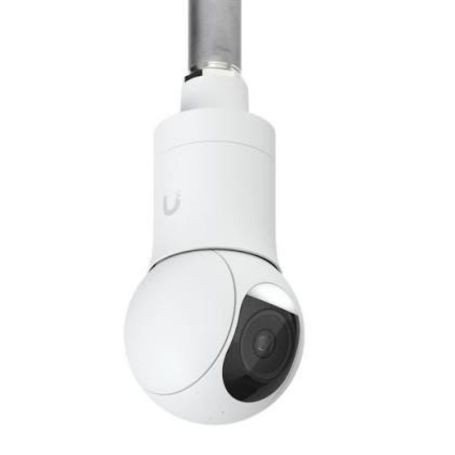

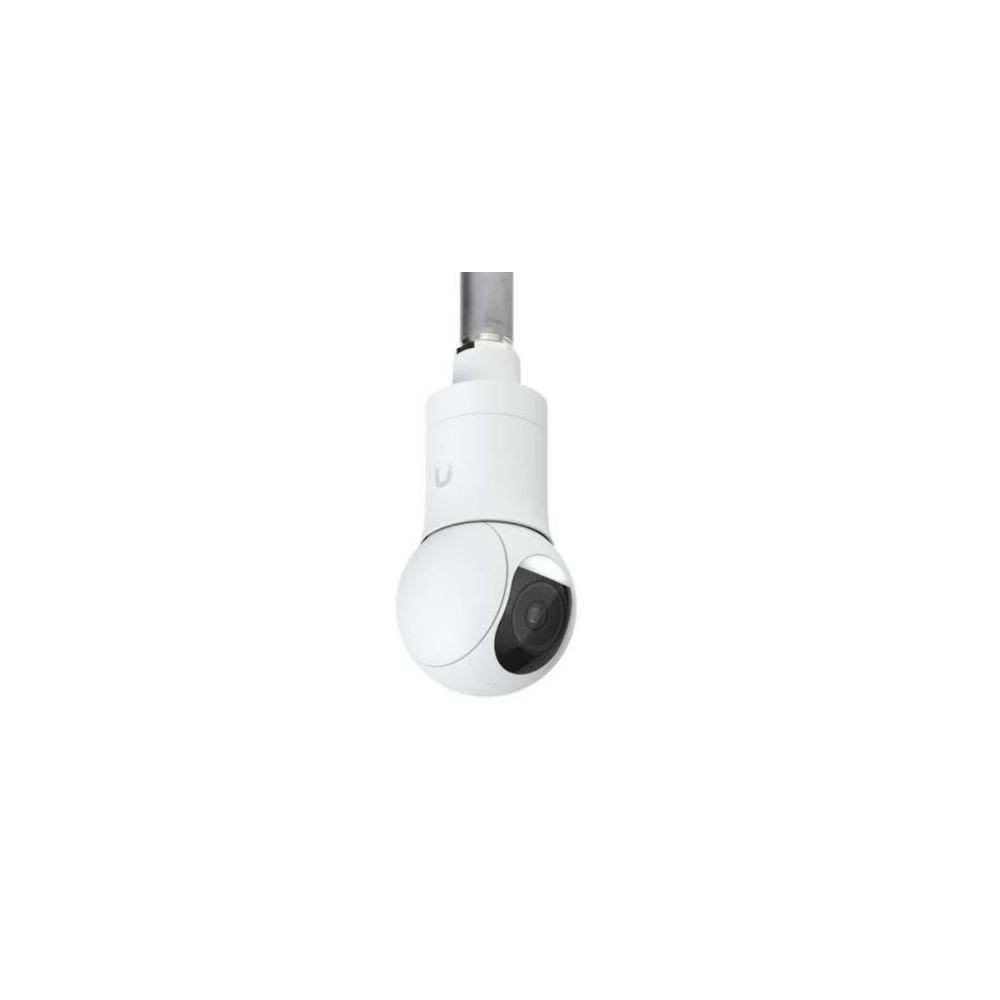

The Ubiquiti G5/G6 PTZ Pendant Mount is a mounting accessory designed for compatible UniFi PTZ security cameras. It enables pendant-style installation and provides a threaded connection for suitable mounting arrangements. Made from polycarbonate, this compact accessory is compatible with the UVC-G5-PTZ and UVC-G6-PTZ camera models.
Key Features
- Pendant mounting: Supports suspended installation of compatible UniFi PTZ cameras.
- G5 and G6 PTZ compatibility: Designed for the UVC-G5-PTZ and UVC-G6-PTZ camera models.
- G3/4-inch threaded outlet: Provides a threaded connection for compatible mounting and conduit arrangements.
- Polycarbonate construction: Both the enclosure and mounting material are made from polycarbonate.
- Compact, lightweight design: Measures 61 mm in diameter and 43.4 mm in height, with a weight of 32 g.
Installation Applications
This pendant mount is suitable for compatible PTZ camera installations where a suspended mounting arrangement is required. Its G3/4-inch threaded outlet supports compatible installation components. Check the installation guide and the requirements of the intended mounting surface or conduit before installation.
Camera Compatibility
According to Ubiquiti's technical specifications, this mount supports the following cameras:
- UniFi G5 PTZ — UVC-G5-PTZ
- UniFi G6 PTZ — UVC-G6-PTZ
DC Supplies Product Note
The UACC-G5-PTZ-PM is listed by Ubiquiti as the G6/G5 PTZ Pendant Mount. Confirm that your camera model and mounting arrangement are compatible with the G3/4-inch threaded connection before ordering. Mounting hardware and other installation accessories should be checked against the manufacturer's package contents and installation guide.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-G5-PTZ-PM |
|---|
| Product Type | PTZ camera pendant mount |
|---|
| Product Name | G6/G5 PTZ Pendant Mount |
|---|
| Compatible Cameras | UVC-G5-PTZ, UVC-G6-PTZ |
|---|
| Dimensions | 61 × 43.4 mm (diameter × height) |
|---|
| Weight | 32 g |
|---|
| Enclosure Material | Polycarbonate |
|---|
| Mounting Material | Polycarbonate |
|---|
| Threaded Outlet | G3/4-inch |
|---|
| Mounting Style | Pendant |
|---|
Frequently Asked Questions
What is the Ubiquiti G5/G6 PTZ Pendant Mount used for?
It is a mounting accessory for suspending compatible UniFi PTZ cameras in a pendant-style configuration.
Which cameras are compatible with this mount?
Ubiquiti lists the UVC-G5-PTZ and UVC-G6-PTZ as compatible camera models.
What is the threaded connection size?
The mount has a G3/4-inch threaded outlet for compatible mounting arrangements.
What material is the mount made from?
Ubiquiti specifies polycarbonate for both the enclosure and mounting material.
Is this mount a complete security camera?
No. It is a mounting accessory. The compatible PTZ camera is a separate product.
