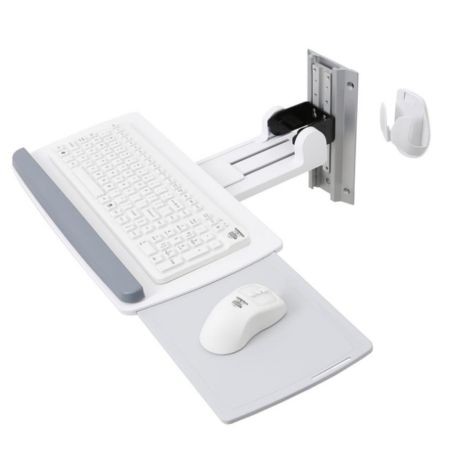

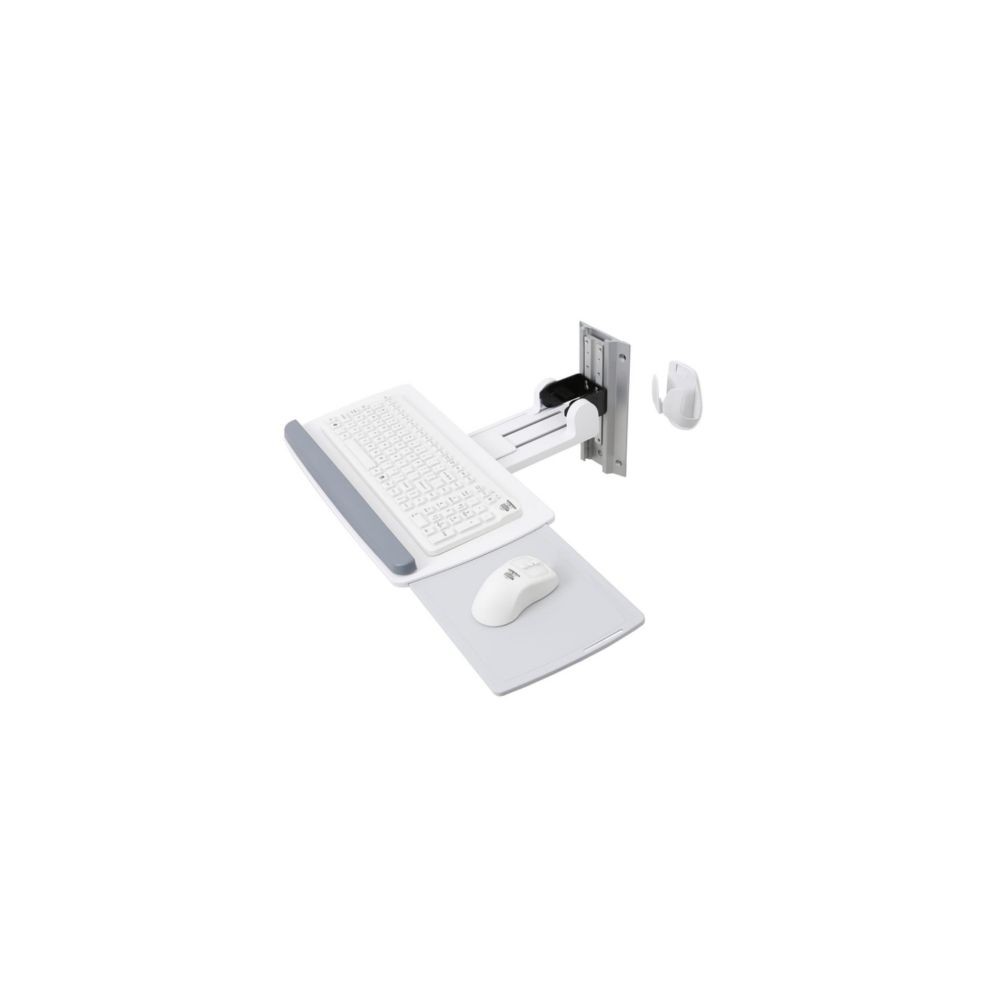

The Ergotron 45-403-062 Neo-Flex Keyboard Wall Mount is a space-saving keyboard and mouse platform designed for workstations where desk space is limited. Its low-profile design allows the tray to fold up close to the wall when not in use, helping maintain a more organised working area.
The adjustable tray moves from side to side, allowing users to position the keyboard conveniently for their workspace. Back-tilt adjustment supports a more comfortable typing position, while the included wrist rest provides additional support during routine computer use. The mount is suitable for professional environments, including imaging workstations and healthcare documentation areas.
Key Features
- Space-saving folding design: Folds close to the wall when the keyboard is not in use.
- Side-to-side adjustment: Pans up to 120 degrees to provide flexible positioning.
- Adjustable keyboard tilt: Back-tilt adjustment from 0 to -10 degrees helps accommodate typing preferences.
- Integrated wrist rest: Provides a resting surface at the front of the keyboard tray.
- Flexible mouse placement: The mouse tray can be configured for left- or right-side use.
Compact Design for Professional Workspaces
The Neo-Flex Keyboard Wall Mount is designed to make computer input more accessible without requiring a conventional desk-mounted keyboard platform. The tray extends approximately 5 inches from its stored position, while the folding mechanism allows it to be moved out of the way when documentation is complete.
For imaging environments, this keyboard mount can be combined with compatible Ergotron Neo-Flex dual-monitor wall-mount systems to create a coordinated workstation. Confirm the compatibility of the monitor mounting system and wall installation before combining products.
Technical Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 45-403-062 |
|---|
| Product Type | Keyboard Wall Mount |
|---|
| Product Family | Neo-Flex |
|---|
| Colour | White |
|---|
| Maximum Load Capacity | 5 lbs (2.3 kg) |
|---|
| Keyboard Tray Dimensions | 17.5 x 9.5 inches (44.5 x 24.1 cm) |
|---|
| Extension Range | Approximately 5 inches (12.7 cm) |
|---|
| Pan Adjustment | Up to 120 degrees |
|---|
| Keyboard Tilt | 0 to -10 degrees |
|---|
| Mounting Type | Wall mount |
|---|
| Included Wall Track | 10 inches |
|---|
| Included Accessories | Keyboard tray, wall track, track mounting bracket, wrist rest, mouse pouch and attachment hardware |
|---|
| Warranty | 5 years |
|---|
Installation and Compatibility
The mount is intended for wall installation using the included 10-inch wall track and mounting bracket. Select appropriate wall fixings for the wall construction and follow the manufacturer's installation instructions. Verify the required mounting support and clearance before installation.
The keyboard and mouse are not included. Check the dimensions of your keyboard and the combined equipment load before use, ensuring the total load remains within the 5 lb capacity.
DC Supplies Product Note
The Ergotron 45-403-062 is a keyboard wall-mount assembly, not a monitor mount. Before ordering, confirm the available wall space, mounting requirements and keyboard dimensions. The product is finished in white and is designed to fold away when not in use.
Frequently Asked Questions
What is the Ergotron 45-403-062 used for?
It provides a wall-mounted platform for a keyboard and mouse, particularly in workspaces where a compact, fold-away solution is useful.
How much weight can the keyboard mount support?
The maximum load capacity is 5 lbs (2.3 kg), including the equipment placed on the platform.
Can the tray move from side to side?
Yes. The tray pans up to 120 degrees to help users position the keyboard according to their workspace needs.
Does the keyboard tray fold away?
Yes. The low-profile design allows the tray to fold close to the wall when it is not being used.
What accessories are included?
The listed package includes the keyboard tray, 10-inch wall track, track mounting bracket, wrist rest, mouse pouch and attachment hardware. The keyboard and mouse are not included.
Can this mount be used with a monitor wall mount?
It can be combined with compatible Ergotron Neo-Flex monitor wall-mount systems to create a workstation. Confirm compatibility and installation requirements for the specific configuration.
