Overview

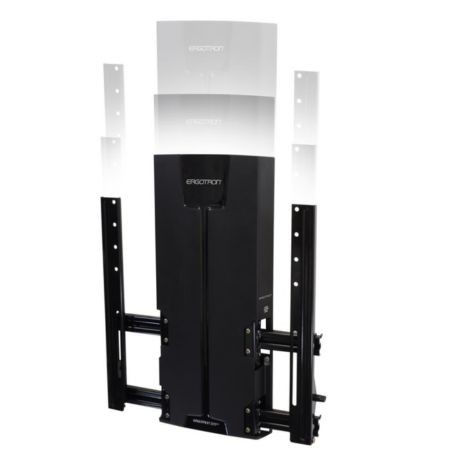

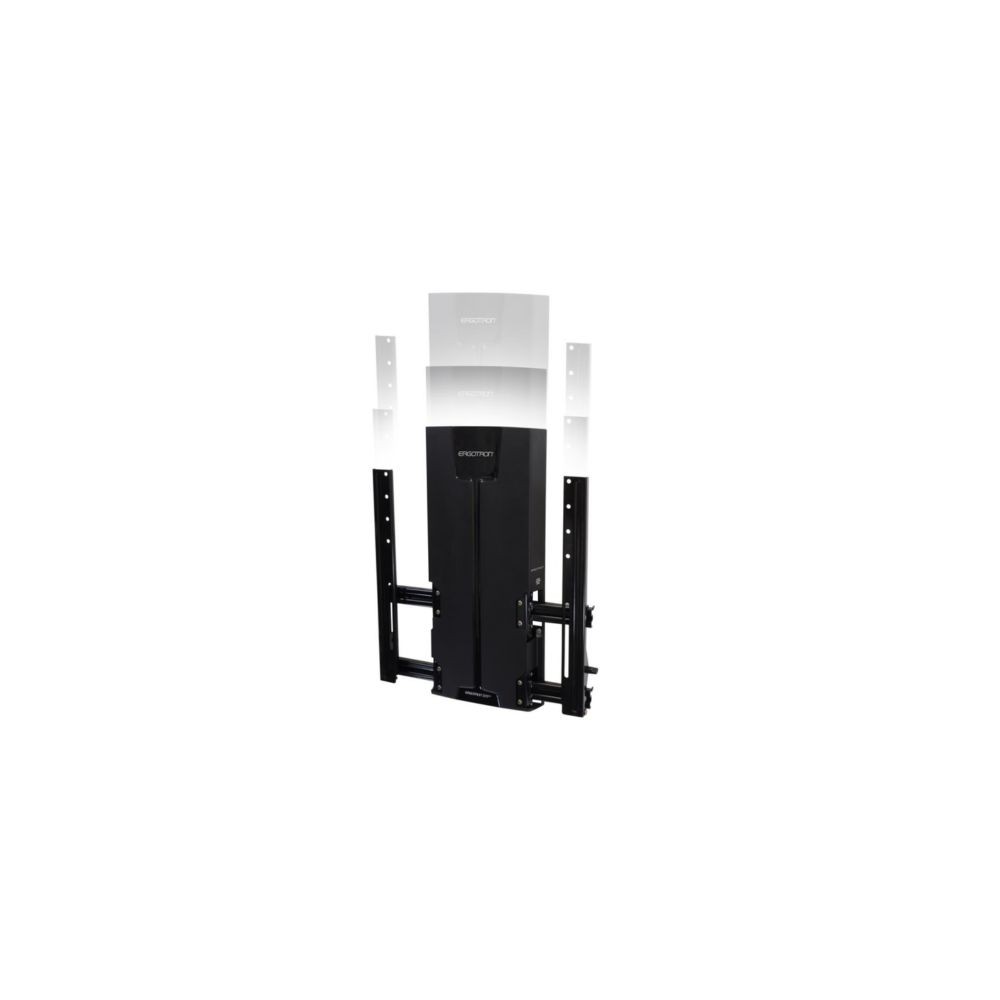

The Ergotron Glide Wall Mount VHD is a very heavy-duty wall mounting solution designed for compatible large TVs and displays. Its height-adjustable lift mechanism allows users to position a screen for seated or standing viewing, while its slim profile keeps the display close to the wall.
Flexible Height and Tilt Adjustment
The mount provides up to 16 inches (40.6 cm) of vertical adjustment and up to 10 degrees of tilt. Ergotron Constant Force technology enables smooth positioning with a light touch, helping users adjust the screen to suit different viewing positions. The tilt mechanism operates without a ratchet.
Display Compatibility and Low-Profile Design
The Glide VHD is designed for displays approximately 46 to 63 inches diagonally, with a supported display weight of 45–70 lb (20.4–31.8 kg). Compatibility should be confirmed using the display's actual weight and VESA mounting-hole pattern rather than screen size alone.
The mount accommodates VESA MIS-D, MIS-E and MIS-F patterns within a horizontal and vertical hole-spacing range of 100 to 400 mm. The back of the display sits approximately 2.5 inches (6.4 cm) from the wall.
Key Features
- Supports compatible displays weighing 45–70 lb (20.4–31.8 kg).
- Provides up to 16 inches (40.6 cm) of vertical height adjustment.
- Offers up to 10 degrees of tilt for viewing-angle adjustment.
- Uses Constant Force technology for smooth screen positioning.
- Low-profile design keeps the display close to the wall.
Installation and Included Components
The package includes the low-profile lift module, mounting template, tilt brackets, installation and mounting hardware, and cable-management hardware. Check the installation instructions and wall structure requirements before mounting. Confirm that the display's weight and mounting-hole pattern fall within the specified limits.
Typical Applications
- Meeting rooms and conference spaces
- Digital signage installations
- Shared viewing areas
- Workspaces requiring seated and standing screen positions
DC Supplies Product Note
Before ordering, verify the display's weight, VESA pattern and mounting-hole spacing against the specifications below. The recommended screen-size range is approximate; display weight and mounting compatibility are the primary selection criteria.
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 61-128-085 |
|---|
| Product Type | Height-adjustable wall mount for large displays |
|---|
| Product Series | Glide Wall Mount VHD (Very Heavy Duty) |
|---|
| Colour | Black |
|---|
| Recommended Display Size | Approximately 46–63 inches |
|---|
| Display Weight Capacity | 45–70 lb (20.4–31.8 kg) |
|---|
| Vertical Adjustment | Up to 16 inches (40.6 cm) |
|---|
| Tilt | Up to 10 degrees |
|---|
| VESA Compatibility | MIS-D, MIS-E and MIS-F |
|---|
| VESA Hole Spacing | Horizontal: 100–400 mm; vertical: 100–400 mm |
|---|
| Distance from Wall | Approximately 2.5 inches (6.4 cm) from wall to the back of the display |
|---|
| Motion Technology | Ergotron Constant Force |
|---|
| Included Components | Low-profile lift module, mounting template, tilt brackets, installation and mounting hardware, and cable-management hardware |
|---|
| Warranty | 5 years |
|---|
Frequently Asked Questions
1. Which display sizes are suitable for this mount?
The recommended screen-size range is approximately 46–63 inches. Always verify the display's weight and VESA mounting pattern before purchasing.
2. What is the maximum supported display weight?
The specified supported weight range is 45–70 lb (20.4–31.8 kg). The installed display must remain within the mount's stated capacity.
3. How far can the display move vertically?
The mount provides up to 16 inches (40.6 cm) of vertical adjustment.
4. Can the display angle be adjusted?
Yes. The mount supports up to 10 degrees of tilt to help adjust the viewing angle.
5. Which VESA mounting patterns are supported?
The mount supports MIS-D, MIS-E and MIS-F patterns with horizontal and vertical hole spacing between 100 and 400 mm. The display's actual hole spacing must fit within these limits.
6. What comes with the mount?
The listed components include the lift module, mounting template, tilt brackets, installation and mounting hardware, and cable-management hardware.
