Overview

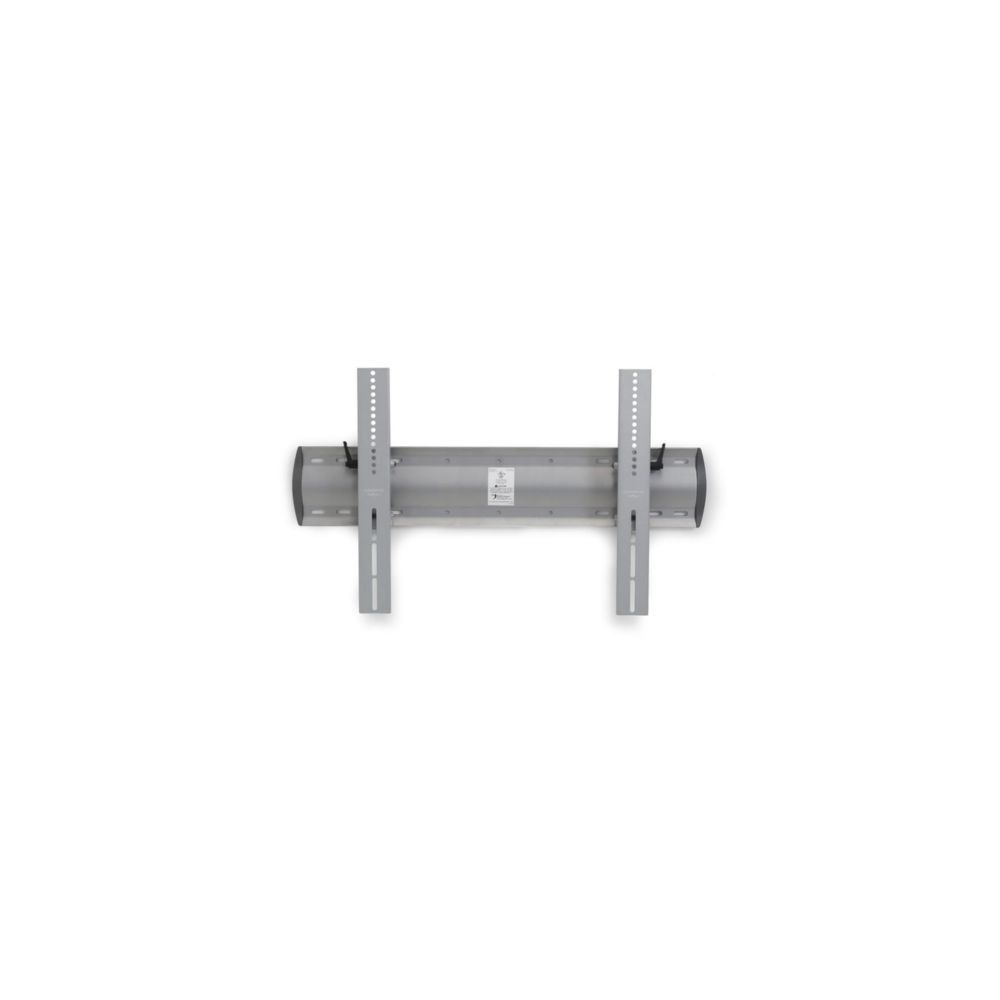

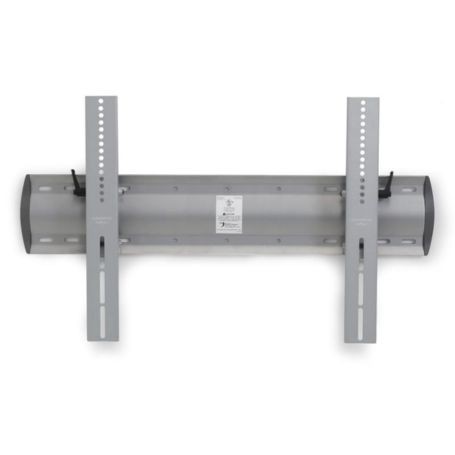

The Ergotron 61-142-003 TM Tilting Wall Mount, XL, is a silver wall-mounting system designed for large flat-panel displays and televisions. Its extra-wide mounting rail accommodates display mounting-hole patterns up to 800 mm horizontally, making it suitable for compatible large-format screens.
The mount combines a steel and extruded-aluminum construction with a tilt-adjustable display interface. Its design supports secure wall installation while allowing the screen angle to be adjusted for viewing comfort and glare reduction.
Display Tilt and Positioning
Ergotron Constant Force technology enables smooth, light-touch tilt adjustment. The integrated tilt-lock feature allows the display angle to be secured in the selected position without relying on adjustment knobs or levers for normal tilt movement.
The mount provides a total tilt range of 20 degrees, with 15 degrees of forward tilt and 5 degrees of backward tilt. The installed display sits approximately 3.5 inches (89 mm) from the wall.
Display Compatibility
The XL configuration is designed for large displays, typically 42 inches or larger, with a maximum supported load of 175 lb (79 kg). Screen size is a guideline rather than the sole compatibility criterion; the display must also meet the weight and mounting-hole requirements.
The mounting interface supports VESA MIS-D, MIS-E and MIS-F patterns within the specified dimensional ranges. Horizontal mounting-hole spacing can range from 100 mm to 800 mm, while vertical spacing can range from 100 mm to 450 mm.
Wall Installation and Security
The wall plate is designed for vertical wall surfaces. The supplied mounting hardware supports installation on suitable wood studs spaced 16 or 24 inches apart, or on concrete walls. Different wall constructions, including metal studs, require appropriate mounting fasteners selected for the installation.
Security fasteners help deter unauthorized removal of the display from its mounting brackets. The installation should be completed using the manufacturer's instructions and verified against the structural capacity of the wall.
Key Features
- Supports compatible large displays weighing up to 175 lb (79 kg).
- Extra-wide XL mounting rail accommodates horizontal mounting-hole spacing up to 800 mm.
- Constant Force technology enables smooth tilt adjustment.
- Integrated tilt-lock feature helps secure the selected viewing angle.
- Security fasteners help deter unauthorized display removal.
Applications
The TM XL mount is suitable for large-display installations in meeting rooms, presentation spaces, educational facilities and commercial viewing areas. It is particularly useful where a large screen requires a wider mounting-hole pattern than a standard wall bracket can accommodate.
DC Supplies Product Note
Before ordering, compare both the horizontal and vertical mounting-hole spacing on the display with the mount's supported ranges. Also verify the wall construction and fastening requirements. The XL model accommodates wider display mounting patterns, but it does not eliminate the need to confirm the display's weight, mounting interface and wall support.
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 61-142-003 |
|---|
| Product Type | Tilting wall mount for large displays |
|---|
| Product Series | TM Tilting Wall Mount |
|---|
| Model | TM Tilting Wall Mount, XL |
|---|
| Color | Silver |
|---|
| Mounting Type | Wall mount |
|---|
| Typical Display Size | 42 inches or larger, subject to mounting and load requirements |
|---|
| Maximum Load Capacity | 175 lb (79 kg) |
|---|
| Tilt Range | 20 degrees total |
|---|
| Forward Tilt | 15 degrees |
|---|
| Backward Tilt | 5 degrees |
|---|
| Wall Profile | 3.5 inches (89 mm) |
|---|
| VESA Compatibility | MIS-D, MIS-E and MIS-F |
|---|
| Horizontal Mounting-Hole Spacing | 100–800 mm |
|---|
| Vertical Mounting-Hole Spacing | 100–450 mm |
|---|
| Construction | Extruded aluminum and steel |
|---|
| Adjustment Technology | Ergotron Constant Force technology |
|---|
| Tilt Lock | Integrated tilt-lock feature |
|---|
| Security | Display-bracket security fasteners |
|---|
| Wall Installation | Suitable wood studs or concrete; other wall types may require separately sourced fasteners |
|---|
| Included Components | Wall plate, two display brackets with tilt-lock levers, and hardware fastener kit |
|---|
| Manufacturer Warranty | 5 years, subject to applicable manufacturer terms |
|---|
Frequently Asked Questions
What is the maximum display weight supported by the Ergotron 61-142-003?
The TM XL Tilting Wall Mount supports displays weighing up to 175 lb (79 kg). The wall structure and installation hardware must also be suitable for the complete load.
What is the difference between the TM and TM XL wall mounts?
The XL version supports wider horizontal mounting-hole patterns, extending to 800 mm. The standard TM model supports horizontal spacing up to 600 mm. Choose the version that matches the display's mounting pattern.
Which VESA mounting patterns are supported?
The mount supports MIS-D, MIS-E and MIS-F interfaces, with horizontal hole spacing from 100 mm to 800 mm and vertical spacing from 100 mm to 450 mm.
Can the screen angle be adjusted after installation?
Yes. The mount provides 15 degrees of forward tilt and 5 degrees of backward tilt. Its tilt-lock feature helps secure the selected angle.
What wall types can accommodate this mount?
The supplied installation hardware supports suitable wood-stud and concrete-wall installations. Other wall types may require different fasteners and a mounting solution appropriate for the wall structure.
Does the package include the wall-mounting components?
The manufacturer lists a wall plate, two display brackets with tilt-lock levers, and a hardware fastener kit. Additional fasteners may be necessary for wall types outside the specified installation options.
