Overview

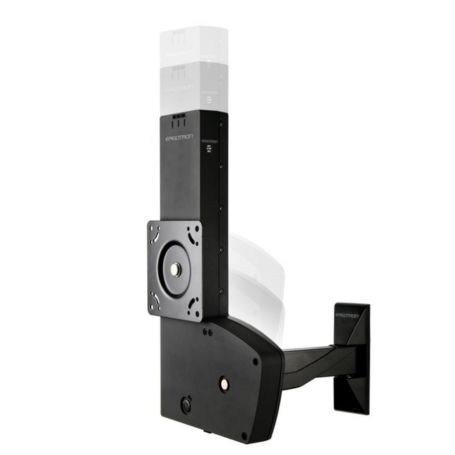

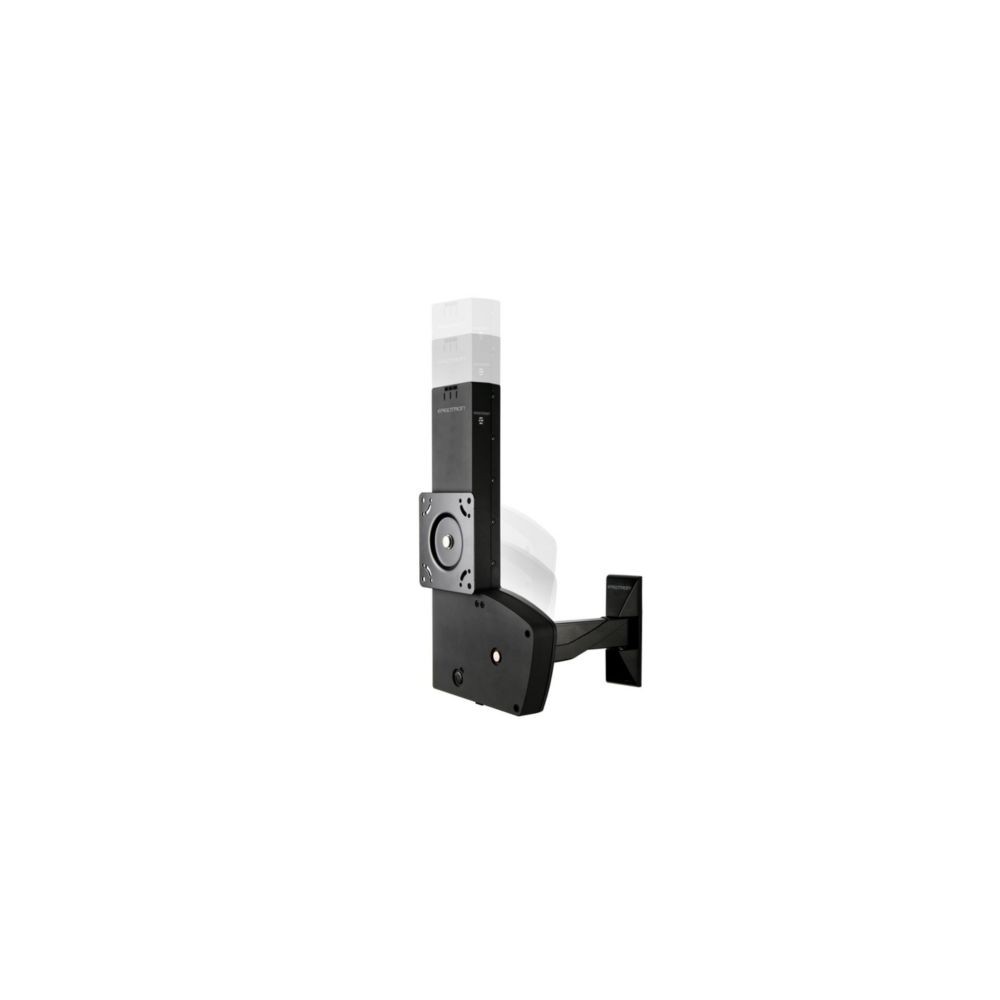

The Ergotron 61-113-085 Glide Wall Mount LD-X is a height-adjustable wall mounting system for compatible flat-panel displays and televisions. Its full-motion arm combines vertical movement with horizontal positioning, allowing users to adjust the display for different viewing positions.
The LD-X configuration includes an extension arm and a lift assembly. Its low-profile design keeps the display close to the wall when retracted while allowing it to extend outward when adjustment is needed.
Display Adjustment and Movement
Ergotron's Constant Force technology enables smooth, light-touch adjustment of the mounted display. The lift mechanism provides 10 inches (25.4 cm) of vertical travel, while the arm supports horizontal panning and display tilt.
The mount supports up to 180 degrees of horizontal panning and 10 degrees of tilt. Its extension arm changes the distance between the display and the wall, accommodating different viewing positions within the installation's available space.
Display Compatibility
The Glide Wall Mount LD-X is designed for compatible flat-panel displays with mounting-hole patterns covered by the MIS-D, MIS-E and MIS-F VESA interface standards. The supported mounting-hole spacing ranges from 100 x 100 mm to 400 x 400 mm.
Ergotron identifies displays up to approximately 42 inches as typical applications. Screen size alone does not determine compatibility: the display must also meet the mount's weight capacity and mounting-interface requirements.
Installation and Cable Management
The mounting assembly includes a full-motion arm, lift assembly, VESA adapter and mounting hardware kit. Integrated cable channels provide a route for organizing cables between the display and the wall.
The installation must use an appropriate wall structure and mounting method for the combined load. Confirm the wall construction, fastening requirements and display mounting pattern before installation.
Key Features
- Constant Force technology supports smooth, light-touch display positioning.
- 10-inch vertical lift accommodates different viewing heights.
- Full-motion arm provides up to 180 degrees of horizontal panning and 10 degrees of tilt.
- Extension arm provides a retracted mounting profile of 4.5 inches and an extended profile of 11 inches.
- Integrated cable channels help organize display cables along the mounting assembly.
Applications
The LD-X mount can be used in meeting rooms, shared workspaces, presentation areas and multipurpose rooms where displays need to move between viewing positions. Vertical adjustment can accommodate seated and standing viewing, while the extension arm supports repositioning when the display needs to be brought farther from the wall.
DC Supplies Product Note
Check the display's actual weight, including any attached accessories, before selecting this mount. The supported load is 12–30 lb (5.4–13.6 kg), and the display must also have a compatible VESA mounting pattern. A display that falls within the typical screen-size range is not automatically compatible if it exceeds the load limit or has an unsupported mounting interface.
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 61-113-085 |
|---|
| Product Type | Articulating wall mount for flat-panel displays |
|---|
| Product Series | Glide Wall Mount |
|---|
| Model | LD-X (Light Duty with Extension) |
|---|
| Color | Black |
|---|
| Mounting Type | Wall mount |
|---|
| Typical Display Size | Up to 42 inches |
|---|
| Weight Capacity | 12–30 lb (5.4–13.6 kg) |
|---|
| Vertical Lift | 10 inches (25.4 cm) |
|---|
| Tilt Range | 10 degrees |
|---|
| Horizontal Pan | 180 degrees |
|---|
| VESA Compatibility | MIS-D, MIS-E and MIS-F |
|---|
| VESA Mounting-Hole Spacing | 100 x 100 mm to 400 x 400 mm |
|---|
| Retracted Mounting Profile | 4.5 inches (11.4 cm) |
|---|
| Extended Mounting Profile | 11 inches (27.8 cm) |
|---|
| Adjustment Technology | Ergotron Constant Force technology |
|---|
| Cable Management | Integrated cable channels |
|---|
| Included Components | Full-motion arm, lift assembly, VESA adapter and complete hardware kit |
|---|
| Additional Installation Feature | Post-installation leveling |
|---|
| Manufacturer Warranty | 5 years, subject to applicable manufacturer terms |
|---|
Frequently Asked Questions
What is the maximum display weight supported?
The Ergotron 61-113-085 supports displays weighing between 12 and 30 lb (5.4–13.6 kg). Confirm that the display's weight falls within this range before installation.
Does the mount support height adjustment?
Yes. The lift assembly provides 10 inches (25.4 cm) of vertical travel, allowing the display to be positioned for different viewing heights.
Which VESA mounting patterns are supported?
The mount supports MIS-D, MIS-E and MIS-F interfaces with mounting-hole spacing ranging from 100 x 100 mm to 400 x 400 mm. The display's mounting pattern must fall within the supported range.
Can the display be moved away from the wall?
Yes. The LD-X extension arm allows the display to move outward from its retracted position. The mounting profile is 4.5 inches when nested and 11 inches when extended.
Does the mount include installation hardware?
The listed assembly includes a full-motion arm, lift assembly, VESA adapter and complete hardware kit. Verify the installation requirements for the specific wall structure before mounting.
Is this mount suitable for every 42-inch display?
No. The stated screen size is a typical application, not a guarantee of compatibility. The display must meet the 12–30 lb weight requirement and have a compatible VESA mounting pattern.
