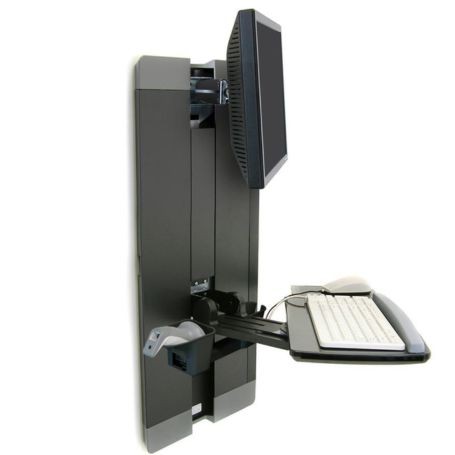

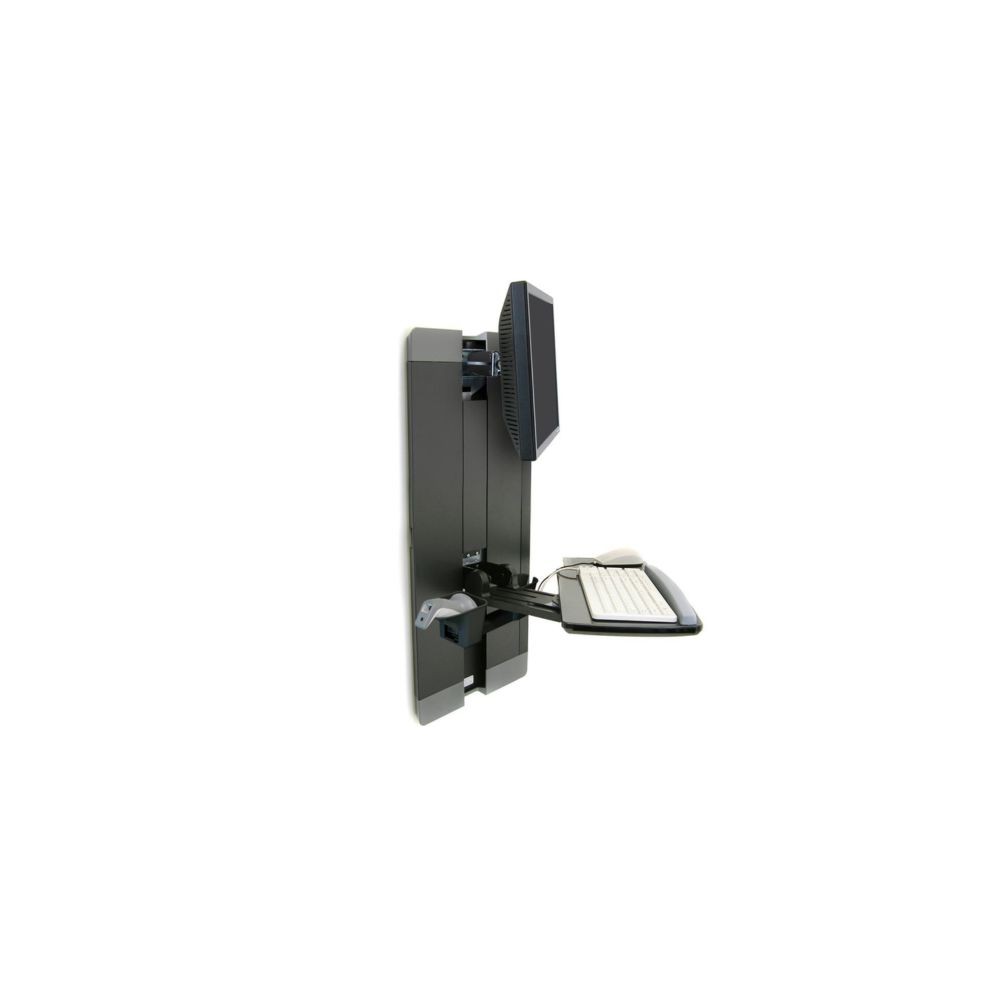

The Ergotron 60-609-195 StyleView Vertical Lift is a wall-mounted computer workstation designed for patient rooms and healthcare environments. Its adjustable vertical lift, extendable keyboard tray, and flexible monitor positioning support convenient access to digital information while helping conserve workspace.
Key Features
- 9-inch vertical adjustment: Provides 9 inches (22.9 cm) of smooth height adjustment for different users.
- Extendable keyboard tray: Slides outward by up to 5 inches (12.7 cm) when in use and folds away to save space.
- Flexible positioning: The keyboard tray pans left or right by up to 120°, while the monitor pans up to 50°, depending on display size.
- Ergonomic keyboard design: The tray offers adjustable back tilt from 0° to -10° and includes a built-in mouse-pad surface.
- Integrated cable management: Can be configured on either side to organize cables and simplify cleaning.
Designed for Patient Rooms
The StyleView Vertical Lift is designed to support computer use in patient rooms where staff need to access information from different positions. The monitor and keyboard can be repositioned to facilitate interaction between caregivers and patients.
The steel construction provides durability for everyday use. The wall-mounted design helps free up floor and desk space, while the fold-down keyboard tray keeps the workstation compact when it is not being used.
Monitor Compatibility and Load Capacity
This workstation supports displays with VESA MIS-D mounting patterns of 75 × 75 mm or 100 × 100 mm. Displays up to 24 inches are recommended. Larger displays may interfere with the keyboard tray folding completely flat.
The total supported load is 8–33 lb (3.6–15 kg), including the monitor and items placed on the keyboard tray. The monitor itself must not exceed 25 lb (11.3 kg). Monitors thicker than 3 inches (7.6 cm) may reduce the available capacity.
Product Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 60-609-195 |
|---|
| Product Type | Wall-Mounted Vertical Lift Workstation |
|---|
| Product Series | StyleView |
|---|
| Configuration | Patient Room |
|---|
| Color | Black |
|---|
| Construction | Steel |
|---|
| Vertical Adjustment | 9 in (22.9 cm) |
|---|
| Recommended Display Size | Up to 24 in |
|---|
| Total Load Capacity | 8–33 lb (3.6–15 kg), including monitor and keyboard-tray contents |
|---|
| Maximum Monitor Weight | 25 lb (11.3 kg) |
|---|
| VESA Compatibility | MIS-D, 75 × 75 mm and 100 × 100 mm |
|---|
| Monitor Pan | Up to 50°, depending on display size |
|---|
| Keyboard Tray Extension | Up to 5 in (12.7 cm) |
|---|
| Keyboard Tray Pan | Up to 120° left or right |
|---|
| Keyboard Tray Tilt | 0° to -10° |
|---|
| Cable Management | Integrated, configurable on either side |
|---|
| Included Accessories | Mouse pad, wrist rest, mouse pouch, mouse and scanner holder, and attachment hardware |
|---|
| Shipping Dimensions | 39.5 × 16 × 10.75 in (1000 × 406 × 273 mm) |
|---|
| Shipping Weight | 35.5 lb (16.1 kg), according to the manufacturer product sheet |
|---|
| Warranty | 5 years |
|---|
Frequently Asked Questions
What is the Ergotron 60-609-195 used for?
It is a wall-mounted computer workstation designed for patient rooms and healthcare environments that require adjustable monitor and keyboard positioning.
How much height adjustment does it provide?
The workstation provides 9 inches (22.9 cm) of vertical adjustment.
Which monitors are compatible?
Compatible monitors use VESA 75 × 75 mm or 100 × 100 mm mounting patterns. Displays up to 24 inches are recommended, although the physical dimensions of the monitor can affect how the keyboard tray folds.
What is the maximum weight capacity?
The total supported load is 33 lb (15 kg), including the monitor and keyboard-tray contents. The monitor itself must not exceed 25 lb (11.3 kg).
Does the workstation include a keyboard and monitor?
The listed package includes the workstation's keyboard tray and mounting components, along with a mouse pad, wrist rest, mouse pouch, and mouse and scanner holder. The computer, monitor, keyboard, and mouse should be confirmed separately with the supplier.
DC Supplies Product Note
Before ordering, check the monitor's weight, thickness, and VESA mounting pattern. The total load capacity includes the monitor and items placed on the keyboard tray. Ensure the wall structure and mounting method are suitable for the complete installation.
