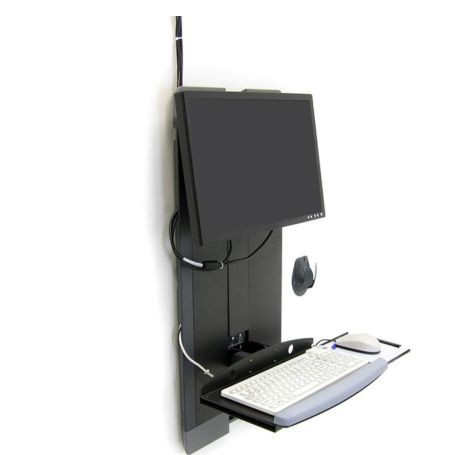

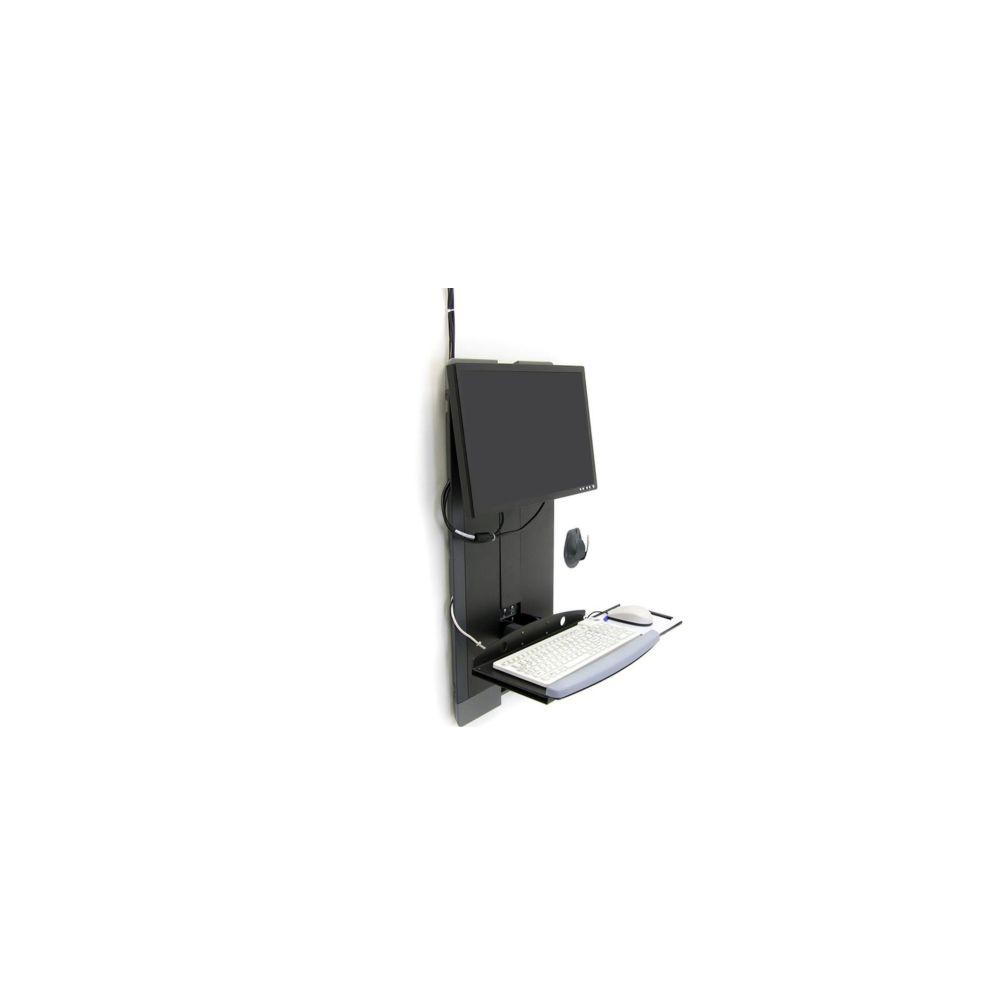

The Ergotron 60-593-195 StyleView Vertical Lift is a wall-mounted workstation designed for space-constrained and high-traffic environments. Its compact profile, adjustable display position, and fold-down keyboard tray help create a functional workspace while keeping equipment close to the wall when not in use.
Key Features
- Space-saving design: Folds into a compact position with a system depth of approximately 4 inches (10.2 cm) when the keyboard tray is stowed.
- 9-inch vertical adjustment: Provides approximately 9 inches (23 cm) of smooth height adjustment to accommodate different users.
- Ergonomic keyboard tray: Features a fold-down tray with adjustable negative tilt from 0° to -10°.
- Flexible cable management: The cable management system can be configured on either side to help keep cords organized.
- Durable construction: Steel construction and an easy-to-clean exterior suit demanding workstation environments.
Designed for High-Traffic Workspaces
The StyleView Vertical Lift is intended for areas where workspace efficiency and a low-profile installation are important. When the keyboard tray is folded away, the workstation occupies minimal space, helping reduce obstruction in busy environments.
The integrated counterbalance system supports smooth adjustment while helping maintain touchscreen stability. The display can be tilted, and the keyboard tray can be positioned for comfortable data entry.
Display and Load Compatibility
This model supports displays using VESA MIS-D mounting patterns of 75 × 75 mm or 100 × 100 mm. The recommended display size is up to 24 inches, although the ability to fold the keyboard tray completely flat may depend on the display's dimensions and thickness.
The total supported load is 5–30 lb (2.3–13.6 kg), including the monitor and items placed on the keyboard tray. The maximum monitor weight is 25 lb (11.3 kg); a monitor thicker than 3 inches (7.6 cm) may reduce the available capacity. Always confirm the complete system weight before installation.
Product Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 60-593-195 |
|---|
| Product Type | Wall-Mounted Vertical Lift Workstation |
|---|
| Product Series | StyleView |
|---|
| Configuration | High-Traffic Areas |
|---|
| Color | Black |
|---|
| Construction | Steel |
|---|
| Vertical Adjustment | 9 in (23 cm) |
|---|
| Keyboard Tray Tilt | 0° to -10° |
|---|
| Display Size | Up to 24 in recommended |
|---|
| Total Load Capacity | 5–30 lb (2.3–13.6 kg), including monitor and keyboard-tray contents |
|---|
| Maximum Monitor Weight | 25 lb (11.3 kg) |
|---|
| VESA Compatibility | 75 × 75 mm and 100 × 100 mm (MIS-D) |
|---|
| Keyboard Tray | Fold-down tray with negative tilt adjustment |
|---|
| Cable Management | Integrated; configurable on either side |
|---|
| Included Accessories | Mouse pad, wrist rest and mouse pouch |
|---|
| Shipping Dimensions | 39.5 × 16 × 10.75 in (1000 × 406 × 273 mm) |
|---|
| Shipping Weight | 36.4 lb (16.5 kg) |
|---|
| Warranty | 5 years |
|---|
Frequently Asked Questions
What is the Ergotron 60-593-195 used for?
It is a wall-mounted vertical lift workstation designed for space-constrained, high-traffic environments that require an adjustable display and fold-down keyboard tray.
How much vertical adjustment does it provide?
The workstation offers approximately 9 inches (23 cm) of vertical adjustment.
Which displays are compatible?
Displays must support VESA 75 × 75 mm or 100 × 100 mm mounting. A display up to 24 inches is recommended, and its dimensions and thickness should be checked to ensure the keyboard tray can fold correctly.
What is the maximum supported weight?
The total supported load is 30 lb (13.6 kg), including the monitor and keyboard-tray contents. The monitor itself must not exceed 25 lb (11.3 kg), and other installation limits may apply.
What accessories are included?
The listed package includes a mouse pad, wrist rest and mouse pouch. Check the supplier's package details to confirm the exact contents of the unit being purchased.
DC Supplies Product Note
Before ordering, verify the monitor's weight, thickness and VESA mounting pattern. The total load includes the monitor and items on the keyboard tray. This model is designed for wall installation, so the mounting surface and installation hardware must be suitable for the intended setup.
