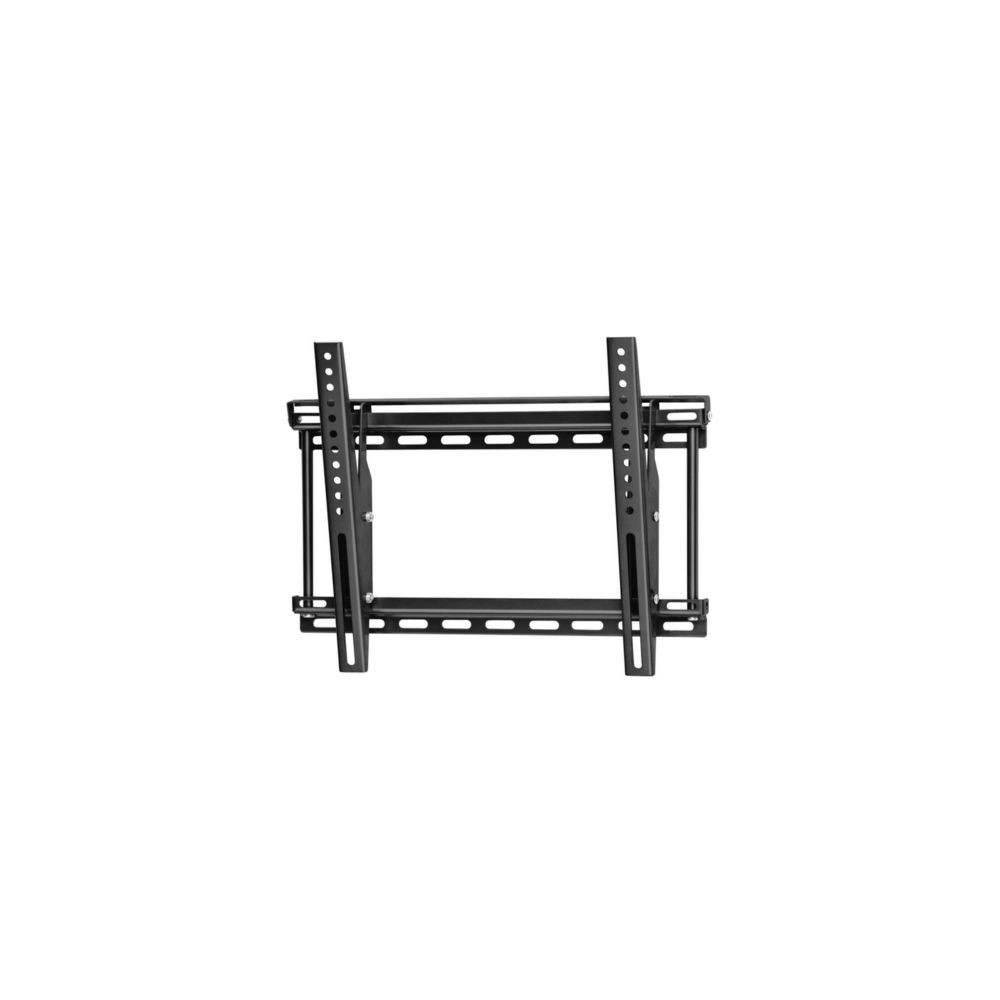

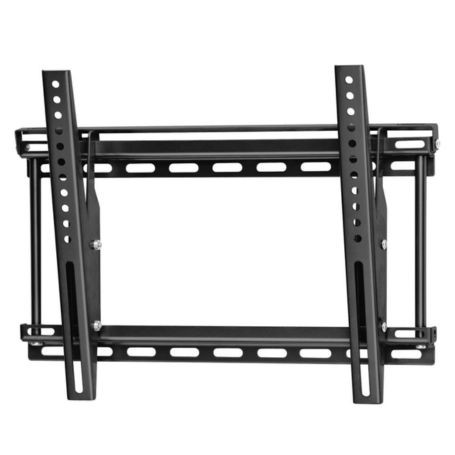

The Ergotron 60-613 Neo-Flex Tilting Wall Mount VHD is a heavy-duty mounting solution for compatible flat-panel displays and televisions. Designed for professional AV installations, offices, meeting rooms, and digital signage environments, this black wall mount supports displays weighing up to 80 lb (36.3 kg). Its adjustable tilt helps improve viewing angles and reduce screen glare.
Key Features
- Heavy-duty display support: Holds compatible displays weighing up to 80 lb (36.3 kg).
- Adjustable tilt: Provides up to 20° of tilt to help reduce glare and improve viewing comfort.
- Universal mounting rails: Accommodates supported VESA mounting patterns for broad display compatibility.
- Lift n' Lock design: Helps simplify attaching the display to the wall mount.
- Tilt tension adjustment: Allows the tilt resistance to be adjusted for the mounted display.
- Lateral positioning: Allows horizontal adjustment along the wall plate for convenient screen placement.
- Integrated security: A locking bar helps secure the display to the mount.
Product Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 60-613 |
|---|
| Product Type | Tilting wall mount for flat-panel displays |
|---|
| Product Series | Neo-Flex |
|---|
| Model | Neo-Flex Tilting Wall Mount, VHD |
|---|
| Color | Black |
|---|
| Mounting Location | Wall |
|---|
| Recommended Display Size | 23–42 inches |
|---|
| Maximum Load Capacity | 80 lb (36.3 kg) |
|---|
| Tilt Range | Up to 20° |
|---|
| VESA Compatibility | MIS-D, MIS-E and MIS-F; mounting-hole spacing must fall within the supported range |
|---|
| Horizontal Mounting-Hole Spacing | 100–400 mm |
|---|
| Vertical Mounting-Hole Spacing | 100–300 mm |
|---|
| Distance from Wall | 1.9 inches (49 mm) |
|---|
| Product Weight | 5.7 lb (approximately 2.6 kg) |
|---|
| GTIN | 00698833017670 |
|---|
| Warranty | 3 years |
|---|
Included in the Package
- Wall plate
- Two tilt rails
- Locking bar
- Installation and attachment hardware
Applications
- Office and conference-room displays
- Commercial AV installations
- Digital signage systems
- Compatible flat-panel televisions in professional environments
Compatibility and Installation
Before ordering, verify the display's weight, mounting-hole pattern and physical dimensions. The mount is specified for displays in the 23–42-inch range, but compatibility depends on the supported mounting pattern and weight capacity rather than screen size alone. Install the wall plate using appropriate fasteners for the wall construction and follow the manufacturer's installation instructions.
DC Supplies Product Note
Please confirm your display model, weight and VESA mounting-hole spacing before purchase. The display is not included. Installation hardware is supplied, but the appropriate wall fasteners must be suitable for the installation surface.
Frequently Asked Questions
What is the Ergotron 60-613 used for?
It is a tilting wall mount for compatible flat-panel displays and televisions in office, commercial AV and digital signage environments.
What is the maximum supported display weight?
The maximum load capacity is 80 lb (36.3 kg).
Can the display be tilted after installation?
Yes. The mount provides up to 20° of tilt, with tension adjustment to help accommodate the mounted display.
Which VESA patterns are supported?
The mount supports compatible MIS-D, MIS-E and MIS-F patterns, provided the mounting-hole spacing falls within the specified horizontal and vertical ranges.
What is included with the mount?
The package includes the wall plate, two tilt rails, locking bar, and installation and attachment hardware.
What warranty does this product have?
Ergotron lists a three-year warranty for model 60-613. Confirm applicable warranty coverage with the seller for your region.
