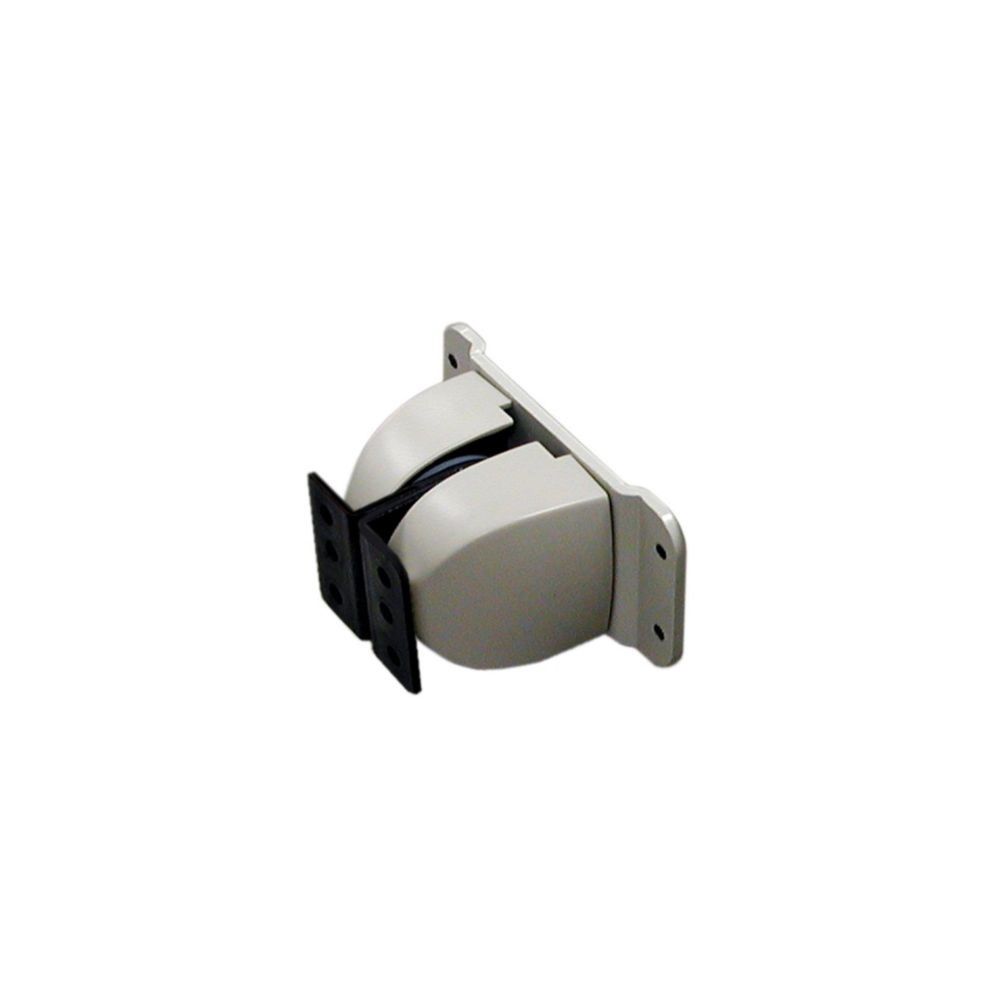

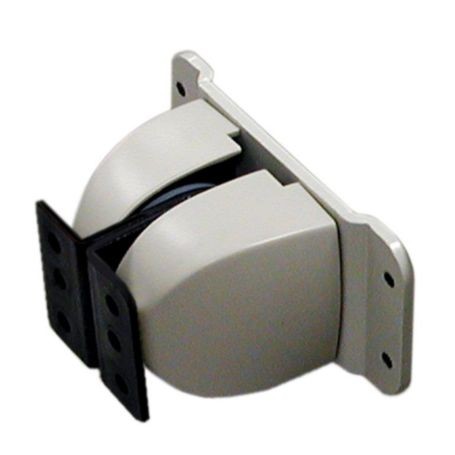

The Ergotron 47-094-800 100 Series Keyboard Pivot is a compact wall-mounted pivot designed for space-efficient keyboard workstations. Its folding design helps keep the work area clear when the keyboard position is not needed, making it suitable for environments where efficient use of space is important.
This model is supplied without a keyboard tray. Pair it with a compatible Ergotron 77-050 series keyboard tray, available separately, to create a complete keyboard mounting solution.
Key Features
- Space-saving folding design: Folds flat against the wall when not in use.
- Adjustable working angle: Provides up to 180° of tilt adjustment for positioning the keyboard tray.
- Reliable load support: Supports a maximum combined load of 7.5 lb (3.4 kg).
- Two cover colours included: Supplied with black and grey covers so the preferred finish can be selected during installation.
- Compatible tray options: Designed for use with separately purchased Ergotron keyboard trays 77-050-180 or 77-050-200.
Designed for Space-Efficient Workstations
The 100 Series Keyboard Pivot helps create a practical keyboard station without a permanently extended support arm occupying the work area. Its folding movement is useful in shared workspaces, service counters, offices and other installations where the keyboard position needs to be moved out of the way between uses.
Compatibility and Installation
Order a compatible keyboard tray separately to complete the workstation. The maximum supported load applies to the assembled setup, so account for the tray, keyboard and any other equipment when checking the total weight. Wall fasteners are not included; the correct mounting interface and fasteners depend on the wall construction and installation method.
For added support, Ergotron identifies compatible options such as Wall Plate 97-101-003 or its Wall Track system. Wall Track installations also require the separately ordered bracket 97-091. Confirm the mounting configuration and wall structure before installation.
Technical Specifications
| Brand | Ergotron |
|---|
| MPN | 47-094-800 |
|---|
| Product Type | 100 Series Keyboard Pivot Wall Mount |
|---|
| Mounting Type | Wall-mounted pivot |
|---|
| Maximum Load Capacity | 7.5 lb (3.4 kg) |
|---|
| Tilt Adjustment | Up to 180° |
|---|
| Colour | Black and grey covers included |
|---|
| Compatible Keyboard Trays | Ergotron 77-050-180 or 77-050-200, sold separately |
|---|
| Product Weight | Approximately 1.2 lb (0.54 kg) |
|---|
| Wall Fasteners | Not included |
|---|
| Warranty | 5 years |
|---|
DC Supplies Product Note
This is the pivot mechanism only; a keyboard tray is not included. Before ordering, verify tray compatibility, total equipment weight and the appropriate wall-mounting hardware for your installation.
Frequently Asked Questions
Does the Ergotron 47-094-800 include a keyboard tray?
No. The pivot is sold without a tray. Compatible options include Ergotron models 77-050-180 and 77-050-200, which must be ordered separately.
What is the maximum weight capacity?
The pivot supports up to 7.5 lb (3.4 kg). Check the combined weight of the tray, keyboard and other equipment against this limit.
Can the pivot fold away when not in use?
Yes. Its folding design allows the keyboard position to fold flat against the wall, helping save space.
Are black and grey covers included?
Yes. Both black and grey covers are included, allowing you to choose the visible colour during installation.
Are wall fasteners included?
No. Wall fasteners are not included. Select suitable hardware and any required mounting interface according to the wall material and installation method.
What warranty does this product have?
Ergotron specifies a five-year warranty for the 100 Series Keyboard Pivot.
