Overview

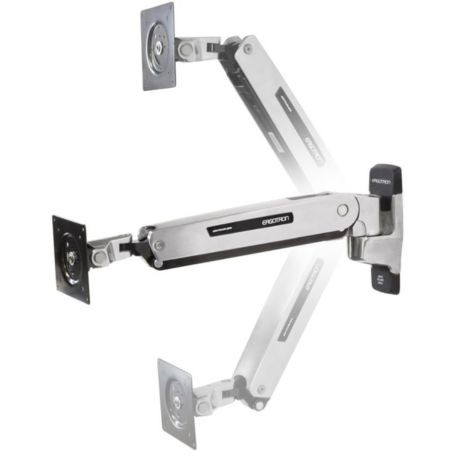

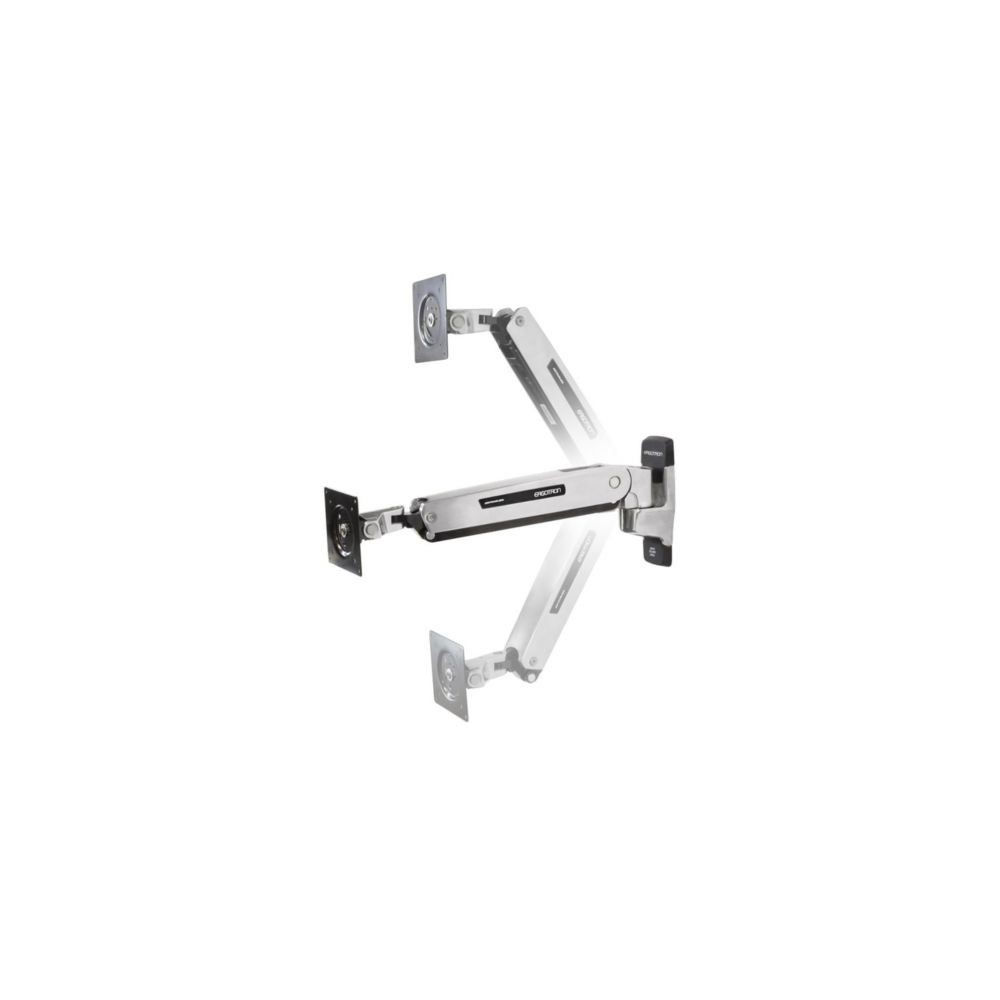

The Ergotron Interactive Arm LD, part number 45-361-026, is a wall-mounted articulating arm designed to support compatible LCD monitors, televisions, and interactive displays. Finished in polished aluminum, it allows users to reposition a mounted screen by lifting, swinging, extending, or turning the display.
The arm is designed for environments where a screen needs to move between viewing and interaction positions. Its articulated construction supports adjustable display placement without requiring the wall mount itself to be relocated.
Adjustment and Movement
Ergotron's Constant Force technology enables light-touch positioning. The arm provides up to 20 inches (50.8 cm) of vertical adjustment and extends approximately 24 inches (61 cm) from the wall. When retracted, it sits approximately 5.5 inches (14 cm) from the wall.
The gravity pivot allows the display to tilt, while a locking knob can secure the selected tilt position. A post-installation leveling adjustment of plus or minus 5 degrees helps correct the screen's alignment after mounting.
Display Compatibility
The Interactive Arm LD supports displays up to 42 inches, subject to a maximum supported display weight of 25 lb (11.3 kg). The manufacturer's stated load range is 7–25 lb (3.2–11.3 kg).
Display size alone does not establish compatibility. Before installation, confirm the monitor or television's weight, mounting-hole pattern, and suitability for the arm's VESA mounting interface.
Mounting and Installation
This model is designed for wall installation. The documented package contents include the articulating arm, wall mount bracket, VESA adapter brackets, and a hardware kit.
Installation must use a suitable wall structure and mounting method. The appropriate fasteners and installation procedure depend on the wall construction. Review the manufacturer's installation instructions before mounting the display.
Key Features
- Constant Force technology: Supports smooth, light-touch display repositioning.
- Extended reach: Extends approximately 24 inches from the wall and retracts close to the mounting surface.
- Vertical adjustment: Provides up to 20 inches of height adjustment.
- Gravity pivot: Enables display tilt, with a locking knob to secure the selected tilt position.
- Polished aluminum finish: Provides the specified finish for this model.
Applications
The arm can be used for compatible displays in meeting rooms, collaborative work areas, educational spaces, interactive presentation environments, and other installations where a wall-mounted screen needs to move between viewing positions.
DC Supplies Product Note
Check both display weight and mounting compatibility before ordering. The 42-inch maximum screen size is not a guarantee that every display of that size will fit. The display must also remain within the arm's supported weight range, and the wall structure must be suitable for the mounting arrangement.
Specifications
| Brand | Ergotron |
|---|---|
| Part Number / MPN | 45-361-026 |
| Product Type | Articulating display wall mount arm |
| Product Series | Interactive Arm |
| Model | Interactive Arm LD |
| Finish | Polished aluminum |
| Mounting Type | Wall mount |
| Supported Display Type | LCD monitor, television, or compatible display |
| Maximum Display Size | 42 inches |
| Weight Capacity | 7–25 lb (3.2–11.3 kg) |
| Vertical Adjustment | Up to 20 inches (50.8 cm) |
| Maximum Extension from Wall | 24 inches (61 cm) |
| Retracted Distance from Wall | 5.5 inches (14 cm) |
| Tilt Adjustment | Gravity pivot with locking knob |
| Pan | 180 degrees |
| Display Rotation | 360 degrees |
| Post-Installation Leveling | Plus or minus 5 degrees |
| Adjustment Technology | Constant Force |
| Included Components | Arm, wall mount bracket, VESA adapter brackets, complete hardware kit |
| Warranty | 5 years, according to the manufacturer's product sheet |
Frequently Asked Questions
What display size does the Ergotron 45-361-026 support?
The arm supports displays up to 42 inches, provided the display also meets the specified weight and mounting requirements.
Can the display be moved after installation?
Yes. The articulating arm supports vertical adjustment and horizontal repositioning, allowing the screen to be moved within the arm's range of motion.
How far does the arm extend from the wall?
The arm extends approximately 24 inches (61 cm) from the wall and retracts to approximately 5.5 inches (14 cm).
Does the package include the wall bracket and mounting hardware?
The manufacturer's product documentation lists the arm, wall mount bracket, VESA adapter brackets, and a complete hardware kit as included components.
Will this arm fit any monitor or television under 42 inches?
No. The display must fall within the specified weight range and have a compatible mounting interface. The wall and installation hardware must also be suitable for the installation.
