Product Overview

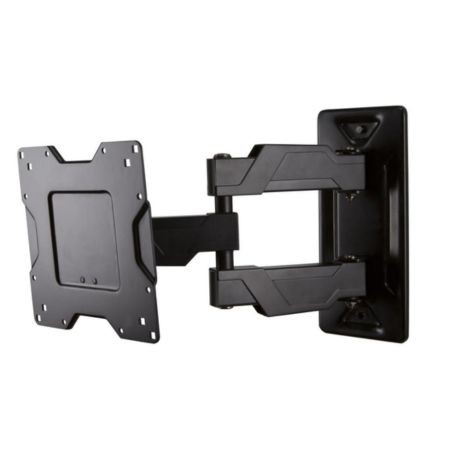

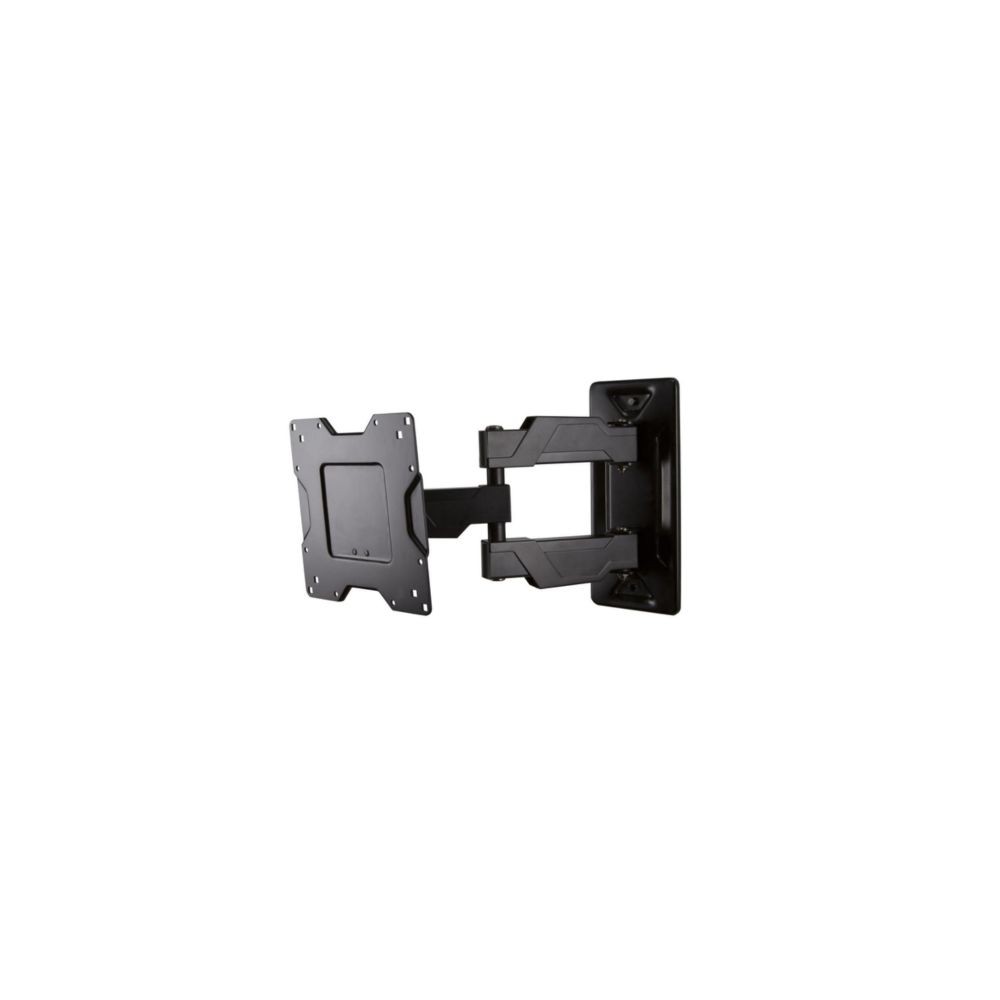

The Ergotron 45-385-223 Neo-Flex VHD Cantilever Wall Mount is a heavy-duty mounting solution for compatible large flat-panel displays and televisions. Its articulated cantilever arm allows the screen to extend away from the wall and move horizontally for flexible viewing. The low-profile design allows the display to sit close to the wall when the arm is retracted.
Designed for commercial display installations, meeting rooms, presentation areas, and other environments requiring adjustable screen positioning, this mount combines an articulated arm, display mounting plate, wall plate, and cable management components.
Display Movement and Positioning
The cantilever mechanism allows the mounted display to move between a retracted wall position and an extended viewing position. Tilt adjustment helps users establish a suitable viewing angle, while horizontal movement supports repositioning within the limits of the installation.
- Tilt adjustment: Up to 20 degrees.
- Horizontal movement: Up to 180 degrees of pan, subject to the installation and surrounding clearance.
- Maximum extension: Approximately 14 inches (35.7 cm) from the wall.
- Minimum profile: Approximately 3.2 inches (8.2 cm) from the wall.
- Screen leveling: Integrated leveling adjustment helps align the mounted display.
Display Compatibility
The Neo-Flex VHD is designed for compatible flat-panel displays typically measuring 37 to 63 inches and weighing no more than 80 lb (36.3 kg). Screen size is a guideline rather than the sole compatibility criterion. The display's weight and mounting-hole configuration must also be supported.
The mount accommodates supported VESA mounting patterns ranging from 200 x 100 mm to 600 x 400 mm. Verify the exact mounting pattern of the intended display before ordering.
Construction and Cable Management
The mount uses extruded aluminum arm components and a black finish. Integrated cable management and covers help organize display cables along the moving arm, reducing exposed cable runs around the installation.
The included Lift n' Lock attachment design simplifies attaching a compatible display to the mount. A Spider 46 adapter is supplied to support additional display mounting configurations.
Key Features
- Supports compatible flat-panel displays weighing up to 80 lb (36.3 kg).
- Articulated cantilever arm extends up to approximately 14 inches from the wall.
- Tilt adjustment up to 20 degrees and horizontal pan up to 180 degrees.
- Compatible with supported VESA mounting patterns from 200 x 100 mm to 600 x 400 mm.
- Integrated cable management, screen leveling, and supplied Spider 46 adapter.
Applications
This mount can be used for compatible large displays in conference rooms, meeting spaces, presentation areas, commercial environments, and shared viewing spaces. Its articulated design is useful where the screen needs to be repositioned for different viewing locations or returned close to the wall when not in use.
DC Supplies Product Note
Before selecting this mount, confirm the display's weight and VESA hole pattern, and check the wall structure and installation requirements. The arm's full movement also requires sufficient clearance around the display and adjacent walls or furniture. Do not exceed the stated maximum load capacity.
Technical Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 45-385-223 |
|---|
| Product Type | Articulated cantilever wall mount for flat-panel displays |
|---|
| Product Series | Neo-Flex VHD |
|---|
| Mounting Type | Wall mount |
|---|
| Color | Black |
|---|
| Recommended Display Size | 37 to 63 inches |
|---|
| Maximum Load Capacity | 80 lb (36.3 kg) |
|---|
| Tilt Range | Up to 20 degrees |
|---|
| Pan Range | Up to 180 degrees |
|---|
| Maximum Extension | Approximately 14 inches (35.7 cm) |
|---|
| Minimum Wall Profile | Approximately 3.2 inches (8.2 cm) |
|---|
| VESA Mounting Compatibility | Supported patterns from 200 x 100 mm to 600 x 400 mm |
|---|
| Arm Material | Extruded aluminum |
|---|
| Cable Management | Integrated cable management and covers |
|---|
| Screen Leveling | Built-in leveling adjustment |
|---|
| Display Attachment | Lift n' Lock design |
|---|
| Included Components | Wall plate, cantilever arm, monitor plate, cable management components, Spider 46 adapter, and mounting hardware kit |
|---|
| Certifications and Compliance | UL listed and RoHS compliant |
|---|
| Warranty | 3 years |
|---|
| UPC / GTIN | 698833040173 |
|---|
Frequently Asked Questions
1. Which displays are compatible with the Ergotron 45-385-223?
The mount is designed for compatible flat-panel displays typically measuring 37 to 63 inches and weighing up to 80 lb (36.3 kg). The display must also use a supported mounting-hole pattern.
2. Can the display be tilted and moved sideways?
Yes. The mount supports tilt adjustment up to 20 degrees and horizontal pan up to 180 degrees, subject to installation clearance.
3. How far does the mount extend from the wall?
The cantilever arm extends approximately 14 inches (35.7 cm) from the wall and retracts to a profile of approximately 3.2 inches (8.2 cm).
4. Does the mounting kit include an adapter?
Yes. The listed kit includes a Spider 46 adapter, along with the wall plate, cantilever arm, monitor plate, cable management components, and mounting hardware kit.
5. What should be checked before installation?
Confirm the display weight, supported mounting pattern, wall construction, and required installation hardware. Allow enough surrounding clearance for the display to tilt and pan without contacting adjacent surfaces or equipment.
