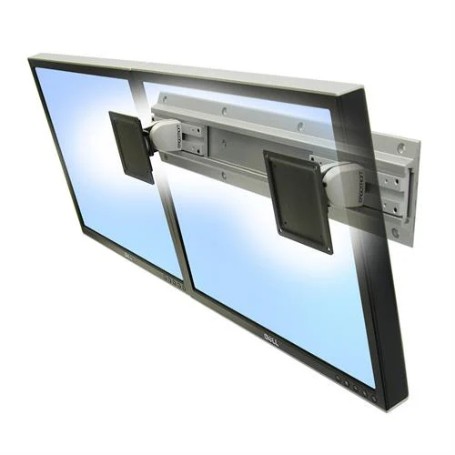

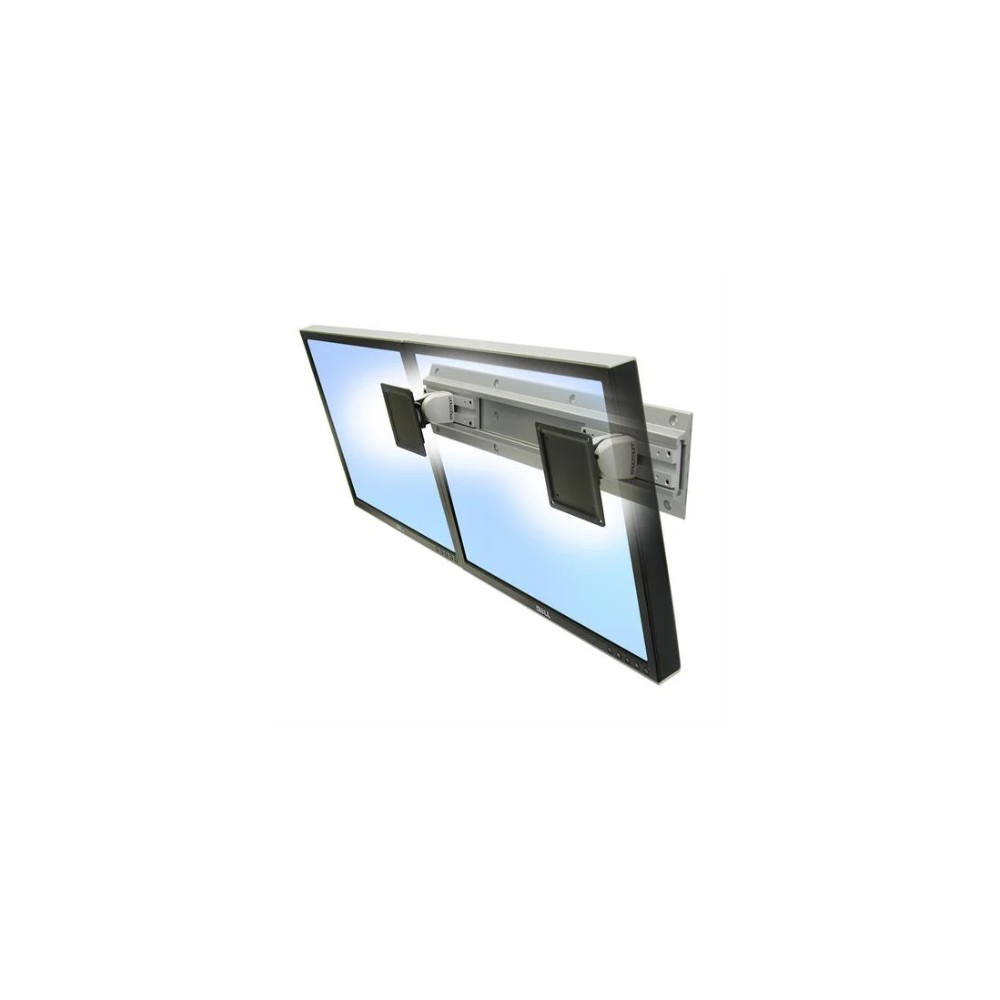

Ergotron 28-514-800 – Neo-Flex Dual Monitor Wall Mount
Overview
The Ergotron 28-514-800 Neo-Flex Dual Monitor Wall Mount is a low-profile wall-mounted display system designed for two monitors in space-constrained work environments. The assembly includes two 100 Series monitor pivots, a 26-inch Wall Track and two Track Mount Bracket Kits. It supports displays up to 24 inches with up to 25 lb capacity per pivot.
Technical Information
Each monitor pivot supports up to 25 lb, providing a maximum combined display capacity of 50 lb. The pivots provide up to 180° of tilt and 360° rotation for portrait or landscape positioning. The monitor mounting interface supports VESA 75 × 75 mm and 100 × 100 mm patterns.
Compatibility
The 28-514-800 is designed for two VESA-compatible displays with a typical maximum screen size of 24 inches. The included 26-inch Wall Track provides the mounting structure for the two display pivots. The separately available Neo-Flex Keyboard Wall Mount 45-403-062 can be used when a keyboard mounting solution is required; it is not included with this MPN.
Key Features
- Supports two displays up to 24 inches.
- Supports up to 25 lb per monitor and 50 lb total.
- Includes a 26-inch Wall Track and two monitor pivots.
- Provides up to 180° monitor tilt and 360° rotation.
- Supports VESA 75 × 75 mm and 100 × 100 mm mounting patterns.
Applications
The Neo-Flex Dual Monitor Wall Mount is suited to PACS and digital-imaging environments, professional workstations, control areas and other installations where two monitors need to be mounted directly to the wall while minimizing workspace footprint.
DC Supplies Product Note
This listing is specifically for Ergotron MPN 28-514-800. It is a dual-monitor wall mounting system and does not include the separately available keyboard wall mount. The 26-inch Wall Track, two monitor pivots and two Track Mount Bracket Kits are included with this exact configuration.
Specifications
| Brand | Ergotron |
|---|
| MPN | 28-514-800 |
|---|
| Product Type | Dual Monitor Wall Mount |
|---|
| Series | Neo-Flex |
|---|
| Configuration | Dual Monitor |
|---|
| Finish | Gray and Black |
|---|
| Display Capacity | 2 monitors |
|---|
| Typical Maximum Display Size | 24 inches |
|---|
| Load Capacity per Display | 25 lb (11.3 kg) |
|---|
| Total Display Capacity | 50 lb (22.7 kg) |
|---|
| Tilt | 180° |
|---|
| Rotation | 360° |
|---|
| VESA Compatibility | MIS-D, 75 × 75 mm and 100 × 100 mm |
|---|
| Mounting Type | Wall mount |
|---|
| Wall Track Length | 26 inches (66 cm) |
|---|
| Distance from Wall | Approx. 4.5 inches (11.4 cm) |
|---|
| Included Components | 2 × 100 Series monitor pivots, 26-inch Wall Track, 2 × Track Mount Bracket Kits |
|---|
| Keyboard Mount | Not included; 45-403-062 available separately |
|---|
| Product Weight | 4.6 kg (10.1 lb) |
|---|
| Shipping Dimensions | 30 × 6 × 6 inches |
|---|
| Shipping Weight | 12 lb (5.5 kg) |
|---|
| Warranty | 5 years |
|---|
FAQs
How many monitors does the Ergotron 28-514-800 support?
The Neo-Flex Dual Monitor Wall Mount supports two monitors.
What monitor size is supported?
Ergotron specifies a typical maximum display size of 24 inches.
What is the weight capacity?
Each monitor pivot supports up to 25 lb (11.3 kg), for a combined display capacity of up to 50 lb (22.7 kg).
What VESA patterns are supported?
The monitor pivots support VESA MIS-D mounting with 75 × 75 mm and 100 × 100 mm hole patterns.
How much monitor adjustment is available?
Each monitor pivot provides up to 180° of tilt and 360° of rotation, allowing portrait or landscape positioning.
Is the keyboard mount included?
No. The Neo-Flex Keyboard Wall Mount 45-403-062 is a separate accessory.
What is included with the 28-514-800?
The exact configuration includes two 100 Series monitor pivots, one 26-inch Wall Track and two Track Mount Bracket Kits.
Verification
Verification status: VERIFIED — exact MPN 28-514-800. The product identity, dual-monitor configuration, 24-inch display size, 25 lb per-pivot capacity, 50 lb combined capacity, VESA compatibility, tilt, rotation, included Wall Track and mounting components were cross-checked against Ergotron documentation and exact-MPN distributor data.
