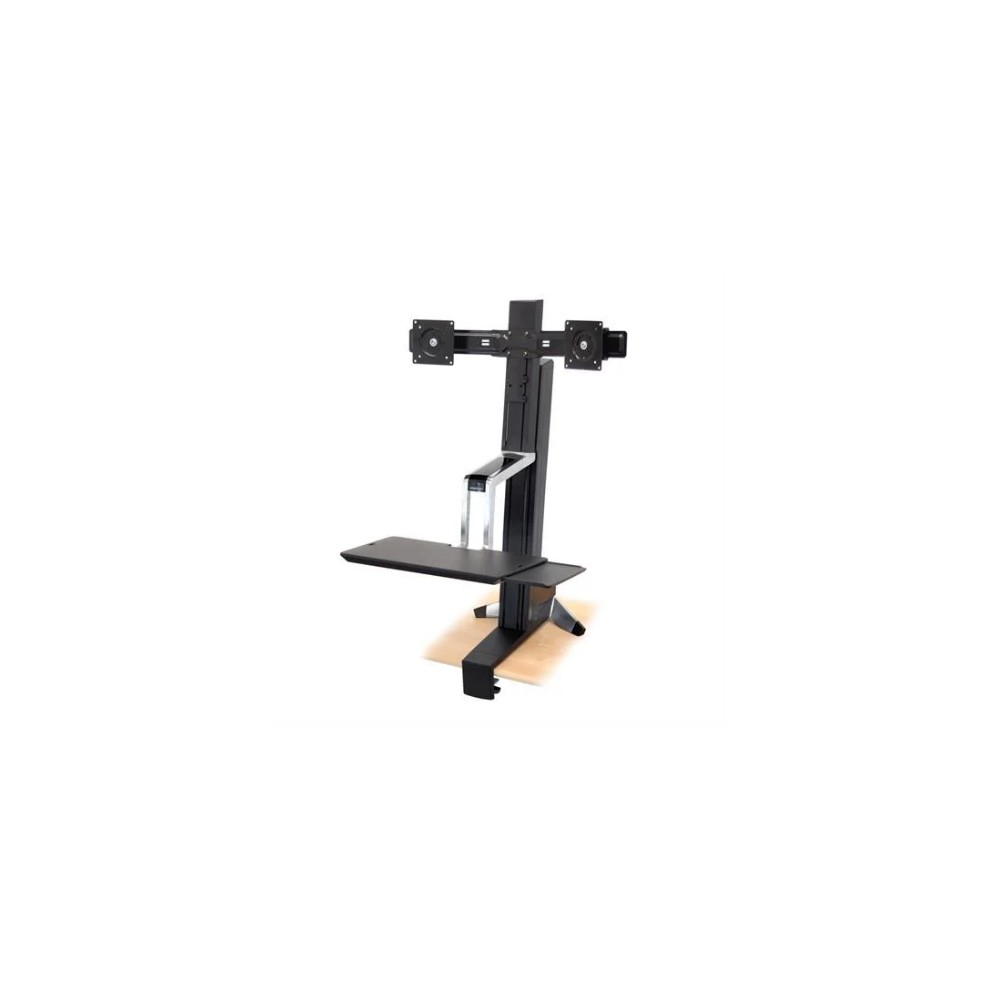

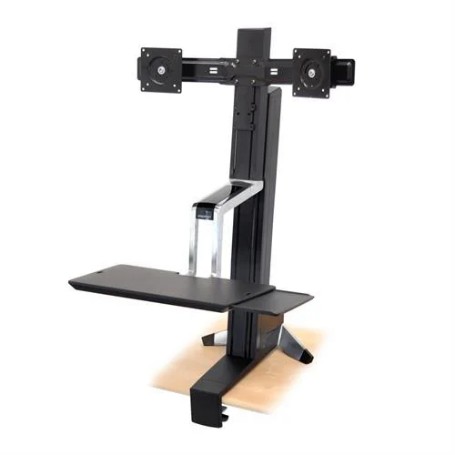

Ergotron 33-341-200 – WorkFit-S Dual Monitor Sit-Stand Workstation
Overview
The Ergotron 33-341-200 WorkFit-S is a front-clamp dual-monitor sit-stand workstation designed to convert an existing desk or work surface into an adjustable-height computer workstation. It supports two displays, with each monitor rated for 6–14 lb, and provides simultaneous height adjustment for the displays and keyboard tray.
Technical Information
The WorkFit-S provides 18 inches of tandem adjustment for the LCD displays and keyboard tray, plus 5 inches of independent LCD adjustment. This provides a maximum LCD height adjustment of 23 inches. The system has a 31 lb maximum load on the height-adjustment assembly, including the displays and keyboard tray.
Compatibility
The 33-341-200 accommodates two displays with a typical screen size of up to 24 inches. Ergotron specifies a maximum outside display width of 24.5 inches when the display is 2 inches thick, although actual allowable width varies with display thickness. The mounting interface uses VESA MIS-D with 75 × 75 mm and 100 × 100 mm hole patterns.
Key Features
- Supports two monitors with a 6–14 lb capacity per display.
- Provides up to 31 lb total load capacity on the height-adjustment assembly.
- Offers 18 inches of tandem adjustment plus 5 inches of independent LCD adjustment.
- Supports 360° monitor rotation and VESA MIS-D mounting.
- Front desk clamp accommodates surfaces approximately 0.47–2.4 inches thick.
Applications
The WorkFit-S Dual is suited to office workstations, professional computing environments, shared work areas and ergonomic desktop deployments requiring two-monitor sit-stand operation without replacing the existing desk.
DC Supplies Product Note
This listing is specifically for Ergotron MPN 33-341-200, the black WorkFit-S Dual configuration without an integrated worksurface. It should not be confused with the related 33-349-200 WorkFit-S Dual Workstation with Worksurface, or the single-monitor 33-350-200 and 33-351-200 configurations. Ergotron's documentation identifies 33-341-200 as the dual-monitor model and lists the worksurface as a separate accessory.
Specifications
| Brand | Ergotron |
|---|
| MPN | 33-341-200 |
|---|
| Product Type | Sit-Stand Workstation |
|---|
| Series | WorkFit-S |
|---|
| Configuration | Dual Monitor |
|---|
| Color | Black |
|---|
| Display Capacity | 2 monitors |
|---|
| Typical Maximum Display Size | 24 inches |
|---|
| Maximum Outside Display Width | 24.5 inches when display is 2 inches thick |
|---|
| Monitor Weight Capacity | 6–14 lb (2.7–6.3 kg) per monitor |
|---|
| Maximum Total Load | 31 lb (14 kg) |
|---|
| Tandem Height Adjustment | 18 inches (46 cm) |
|---|
| Independent LCD Adjustment | 5 inches (13 cm) |
|---|
| Maximum LCD Height Adjustment | 23 inches (58 cm) |
|---|
| Monitor Rotation | 360° |
|---|
| VESA Compatibility | MIS-D, 75 × 75 mm and 100 × 100 mm |
|---|
| Keyboard Tray | Includes left/right mouse tray |
|---|
| Keyboard Tray Maximum Load | 5 lb (2.3 kg) |
|---|
| Desk Clamp Range | 0.47–2.4 inches (1.2–6 cm) |
|---|
| Mounting Type | Front desk clamp |
|---|
| Construction | Aluminum, high-grade plastic and powder-coated painted steel |
|---|
| Shipping Dimensions | 8 × 23 × 44 inches (20 × 58 × 115 cm) |
|---|
| Shipping Weight | 40 lb (18 kg) |
|---|
| Warranty | 5 years |
|---|
The specifications above are based primarily on Ergotron's exact-model documentation, with current exact-MPN distributor data used for confirmation.
FAQs
How many monitors does the Ergotron 33-341-200 support?
The WorkFit-S 33-341-200 supports two monitors.
What monitor size is supported?
Ergotron specifies a typical maximum display size of 24 inches. The exact allowable display width depends on monitor thickness; Ergotron's exact-model data gives a maximum outside width of 24.5 inches for a display that is 2 inches thick.
What is the monitor weight capacity?
Each monitor should weigh 6–14 lb, with a maximum combined load of 31 lb on the height-adjustment assembly. The total includes the mounted displays and keyboard tray.
How much height adjustment does it provide?
The displays and keyboard tray move together through 18 inches, while the displays have an additional 5 inches of independent adjustment. The maximum LCD height adjustment is 23 inches.
What VESA mounting patterns are supported?
The monitor pivots use VESA MIS-D mounting with 75 × 75 mm and 100 × 100 mm hole patterns.
What desk thickness is supported?
The front desk clamp attaches to a surface edge approximately 0.47–2.4 inches (1.2–6 cm) thick.
Does the 33-341-200 include a worksurface?
No. The exact 33-341-200 configuration includes the height-adjustment column, desk clamp, crossbar, two LCD pivots and keyboard tray with left/right mouse tray. Ergotron lists the 97-581-019 Worksurface as a separate accessory compatible with this model.
Verification
Verification status: VERIFIED — exact MPN 33-341-200. The exact model identity, dual-monitor configuration, display capacity, total load, height adjustment, VESA mounting, desk clamp range, included components and warranty were cross-checked against Ergotron documentation and exact-MPN distributor data.
