Overview

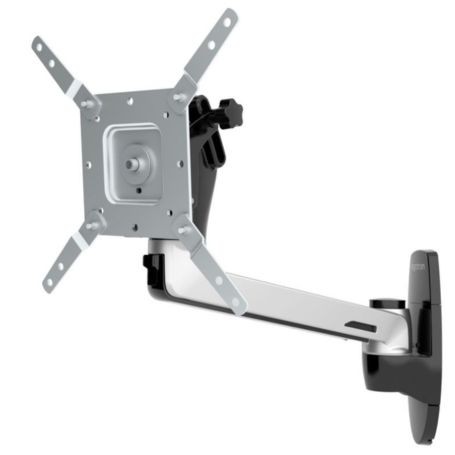

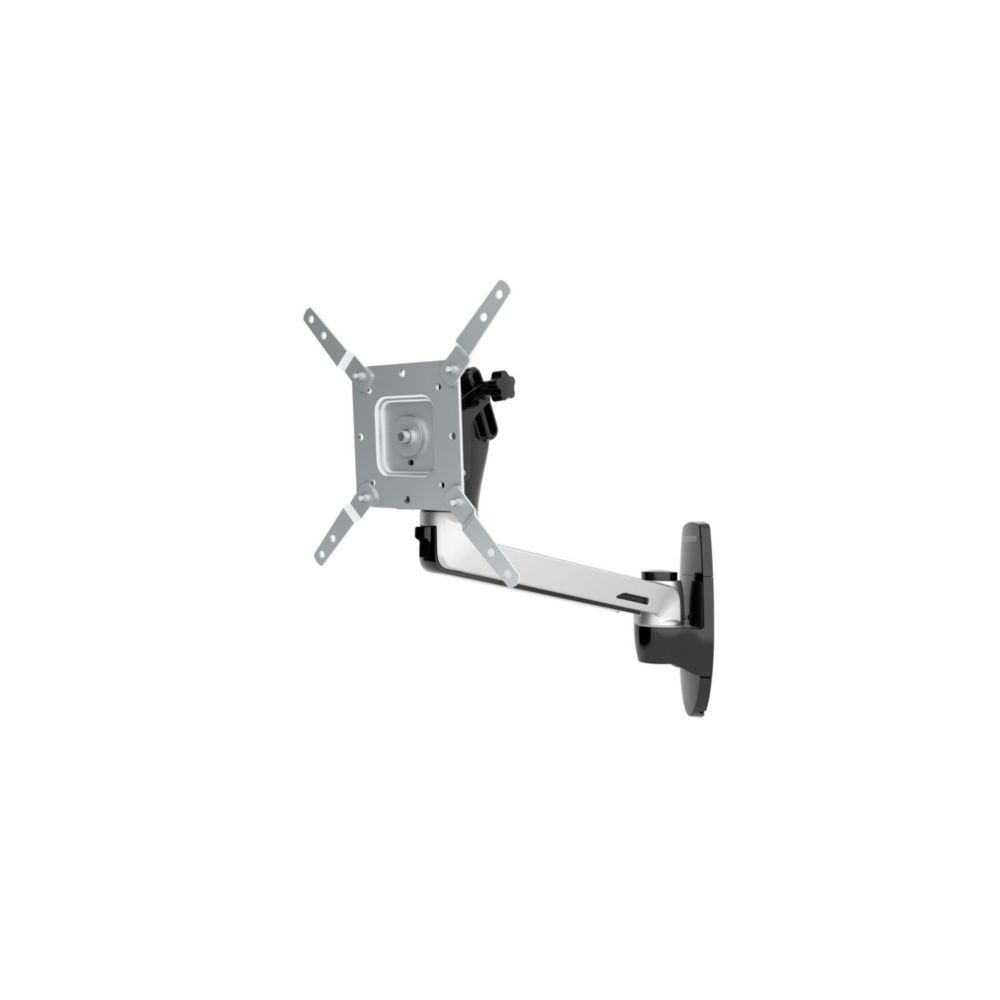

The Ergotron 45-268-026 LX HD Wall Mount Swing Arm is a heavy-duty wall-mounted display arm with a polished aluminum finish. It supports displays up to 42 inches and up to 50 lb (23 kg), while providing adjustable tilt, pan, and rotation for flexible viewing.
Display Support
The 45-268-026 is designed for VESA-compatible LCD displays and TVs with a maximum supported load of 50 lb (23 kg). The specified display size is up to 42 inches; Ergotron notes that screen size is an approximation and that the display weight and VESA pattern determine actual compatibility.
Adjustment and Movement
The LX HD Wall Mount Swing Arm provides up to 20° of smooth continuous tilt adjustment, with 15° forward and 5° backward movement. The swing arm provides up to 360° of pan motion and 360° of display rotation for landscape or portrait orientation.
Wall Mounting
The arm attaches directly to sturdy vertical surfaces. The installation hardware supports mounting to a wood stud or concrete wall. The wall-mounted design provides a fixed mounting point while allowing the display to swing and reposition within the arm's movement range.
VESA Compatibility
The 45-268-026 supports VESA MIS-D, MIS-E, and MIS-F interfaces. Supported patterns include 75 x 75 mm, 100 x 100 mm, 200 x 100 mm, and 200 x 200 mm. A separate VESA Bracket Adaptor Kit is available for specified larger 400 mm mounting patterns.
Constant Force Adjustment
Ergotron's Constant Force technology provides smooth adjustment of the display with light-touch movement. A tilt lock-down feature can provide additional tilt tension for displays with an unusually forward center of gravity.
Key Features
- Supports displays up to 42 inches and 50 lb (23 kg)
- 20° continuous tilt adjustment with 15° forward and 5° backward movement
- Up to 360° pan and 360° display rotation
- VESA MIS-D, MIS-E, and MIS-F compatibility
- Constant Force adjustment with tilt lock-down feature
Applications
The LX HD Wall Mount Swing Arm is designed for wall-mounted LCD displays and TVs where a heavy-duty adjustable swing arm is required. Its combination of tilt, pan, and rotation allows the mounted display to be positioned for different viewing directions.
DC Supplies Product Note
The 45-268-026 is the LX HD Wall Mount Swing Arm in polished aluminum. It is distinct from the black 45-269-009 LX HD Wall Mount Pivot, which provides a fixed-point pivot rather than the swing-arm configuration.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-268-026 |
| Product Type | LX HD Wall Mount Swing Arm |
| Product Series | LX HD |
| Finish | Polished aluminum |
| Display Configuration | Single display |
| Maximum Display Size | 42 inches |
| Maximum Load Capacity | 50 lb (23 kg) |
| Tilt | 20°; 15° forward / 5° backward |
| Pan | 360° |
| Rotation | 360°; portrait or landscape |
| VESA Standard | MIS-D / MIS-E / MIS-F |
| VESA MIS-D Patterns | 75 x 75 mm and 100 x 100 mm |
| VESA MIS-E Pattern | 200 x 100 mm |
| VESA MIS-F Pattern | 200 x 200 mm |
| Optional Larger VESA Pattern | 400 x 200 mm, 400 x 300 mm, or 400 x 400 mm with appropriate adaptor |
| Mounting Type | Wall mount |
| Mounting Surfaces | Sturdy vertical surfaces, wood stud, or concrete wall |
| Depth | 3.7 inches (9.1 cm) |
| Adjustment Technology | Constant Force |
| Product Weight | 4.0 lb (1.8 kg) |
| Shipping Weight | 5.5 lb (2.5 kg) |
| Shipping Dimensions | 12.5 x 7.75 x 4.5 inches (31.8 x 19.7 x 11.4 cm) |
| Warranty | 5 years |
Package Contents
- LX HD Wall Mount Swing Arm
- Hardware for mounting to a wood stud or concrete wall
Frequently Asked Questions
What is the Ergotron 45-268-026?
It is an LX HD Wall Mount Swing Arm for a single large display, finished in polished aluminum and designed for displays up to 50 lb.
What size display does it support?
The specified display size is up to 42 inches, with a maximum supported weight of 50 lb (23 kg).
How much can the display tilt?
The arm provides up to 20° of continuous tilt adjustment, with 15° forward and 5° backward movement.
Can the display rotate to portrait orientation?
Yes. The 45-268-026 provides 360° display rotation for landscape or portrait positioning.
Which VESA mounting patterns are supported?
The arm supports VESA MIS-D 75 x 75 mm and 100 x 100 mm, MIS-E 200 x 100 mm, and MIS-F 200 x 200 mm patterns. Larger specified patterns require the appropriate VESA adaptor.
Is this the same as the Ergotron 45-269-009?
No. The 45-268-026 is the LX HD Wall Mount Swing Arm in polished aluminum, while the 45-269-009 is the LX HD Wall Mount Pivot in black with a different pan configuration.
