Overview

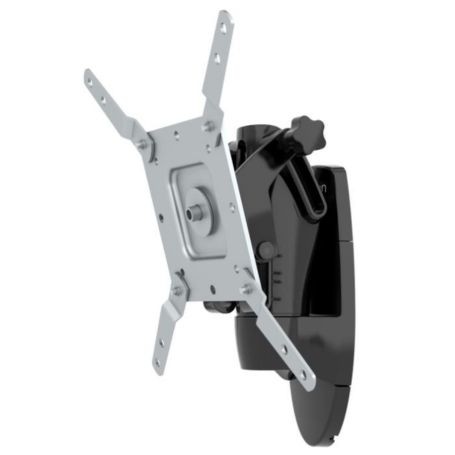

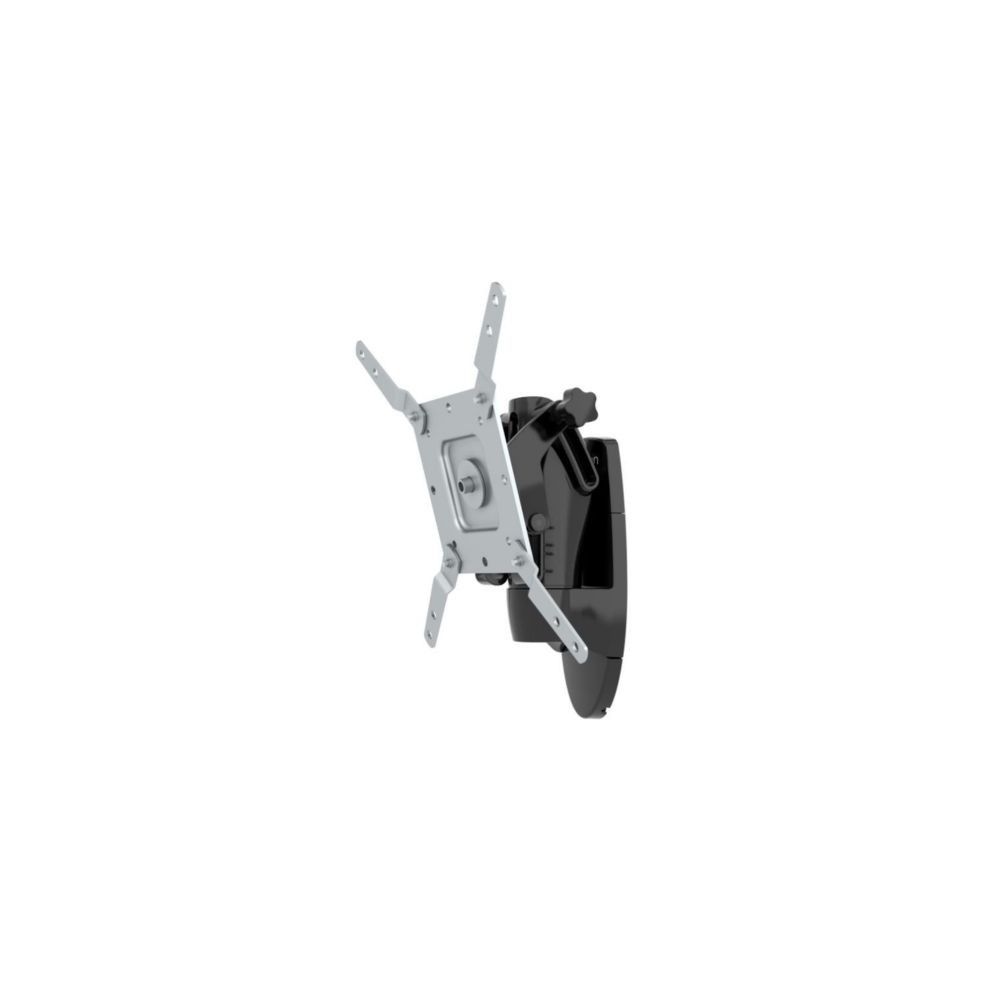

The Ergotron 45-269-009 LX HD Wall Mount Pivot is a heavy-duty fixed-point display mount for large LCD screens and TVs. The black pivot supports displays up to 42 inches and 50 lb (23 kg), providing smooth Constant Force adjustment for positioning the screen.
Display Support
The 45-269-009 is rated for displays weighing up to 50 lb (23 kg) and is specified for screens up to 42 inches. Ergotron notes that display size is an approximation and that the maximum weight capacity remains the governing limit.
Adjustment
The LX HD Wall Mount Pivot provides up to 20° of smooth continuous tilt adjustment, with 15° forward and 5° backward movement. It also provides up to 40° of pan adjustment and 360° rotation for landscape or portrait viewing.
VESA Compatibility
The mount supports selected VESA mounting patterns across MIS-D, MIS-E, and MIS-F interfaces. Supported hole patterns include 75 x 75 mm, 100 x 100 mm, 200 x 100 mm, and 200 x 200 mm. A separate VESA Bracket Adaptor Kit can be used for the specified 400 x 200 mm MIS-F pattern.
Wall Installation
The 45-269-009 is designed for installation on sturdy vertical surfaces. The supplied installation hardware supports mounting to a wood stud or concrete wall. The pivot has a 3.7-inch (9.1 cm) depth.
Constant Force Technology
Ergotron's Constant Force technology provides smooth adjustment so the display can be positioned with light-touch movement. An integrated tilt lock-down feature also provides additional tilt tension for displays with an unusually forward center of gravity.
Key Features
- Supports displays up to 42 inches and 50 lb (23 kg)
- 20° continuous tilt adjustment
- 40° pan adjustment and 360° landscape/portrait rotation
- Supports selected VESA MIS-D, MIS-E, and MIS-F patterns
- Constant Force adjustment with integrated tilt lock-down
Applications
The 45-269-009 is intended for wall-mounted LCD displays and TVs where a heavy-duty fixed-point pivot is required rather than an extending swing arm. Its adjustment range allows the mounted screen to be tilted, panned, and rotated for different viewing orientations.
DC Supplies Product Note
The 45-269-009 is the LX HD Wall Mount Pivot, not the LX HD Swing Arm. It keeps the display at a fixed wall mounting point while providing tilt, pan, and rotation adjustment.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-269-009 |
| Product Type | LX HD Wall Mount Pivot |
| Product Series | LX HD |
| Color | Black |
| Display Configuration | Single display |
| Maximum Display Size | 42 inches |
| Maximum Load Capacity | 50 lb (23 kg) |
| Tilt | 20°; 15° forward / 5° backward |
| Pan | 40° |
| Rotation | 360°; portrait or landscape |
| VESA Standard | MIS-D / MIS-E / MIS-F |
| VESA MIS-D Patterns | 75 x 75 mm and 100 x 100 mm |
| VESA MIS-E Pattern | 200 x 100 mm |
| VESA MIS-F Pattern | 200 x 200 mm |
| Optional MIS-F Pattern | 400 x 200 mm with optional VESA Bracket Adaptor Kit 97-474 |
| Mounting Type | Wall mount |
| Depth | 3.7 inches (9.1 cm) |
| Adjustment Technology | Constant Force |
| Construction | Heavy-duty display mounting assembly |
| Installation Surfaces | Wood stud or concrete wall |
| Shipping Weight | 4.6 lb (2.1 kg) |
| Warranty | 5 years |
| UPC | 069883301802 |
Package Contents
- LX HD Wall Mount Pivot
- Hardware for mounting to a wood stud or concrete wall
Frequently Asked Questions
What is the Ergotron 45-269-009?
It is an LX HD Wall Mount Pivot designed for a single large display, with heavy-duty support and adjustable tilt, pan, and rotation.
What size and weight display does it support?
The mount supports displays up to 42 inches and up to 50 lb (23 kg).
How much can the display tilt?
The pivot provides up to 20° of continuous tilt adjustment, with 15° forward and 5° backward movement.
Can the display be used in portrait orientation?
Yes. The 45-269-009 provides 360° rotation for portrait or landscape viewing.
Which VESA patterns are supported?
Supported patterns include 75 x 75 mm, 100 x 100 mm, 200 x 100 mm, and 200 x 200 mm across the specified MIS-D, MIS-E, and MIS-F interfaces.
Is the 45-269-009 an extending monitor arm?
No. It is the LX HD Wall Mount Pivot. The related 45-268-026 is the LX HD Wall Mount Swing Arm, while the 45-269-009 is the fixed-point pivot configuration.
