Overview

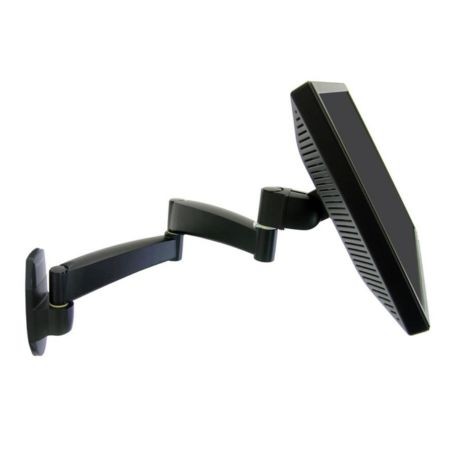

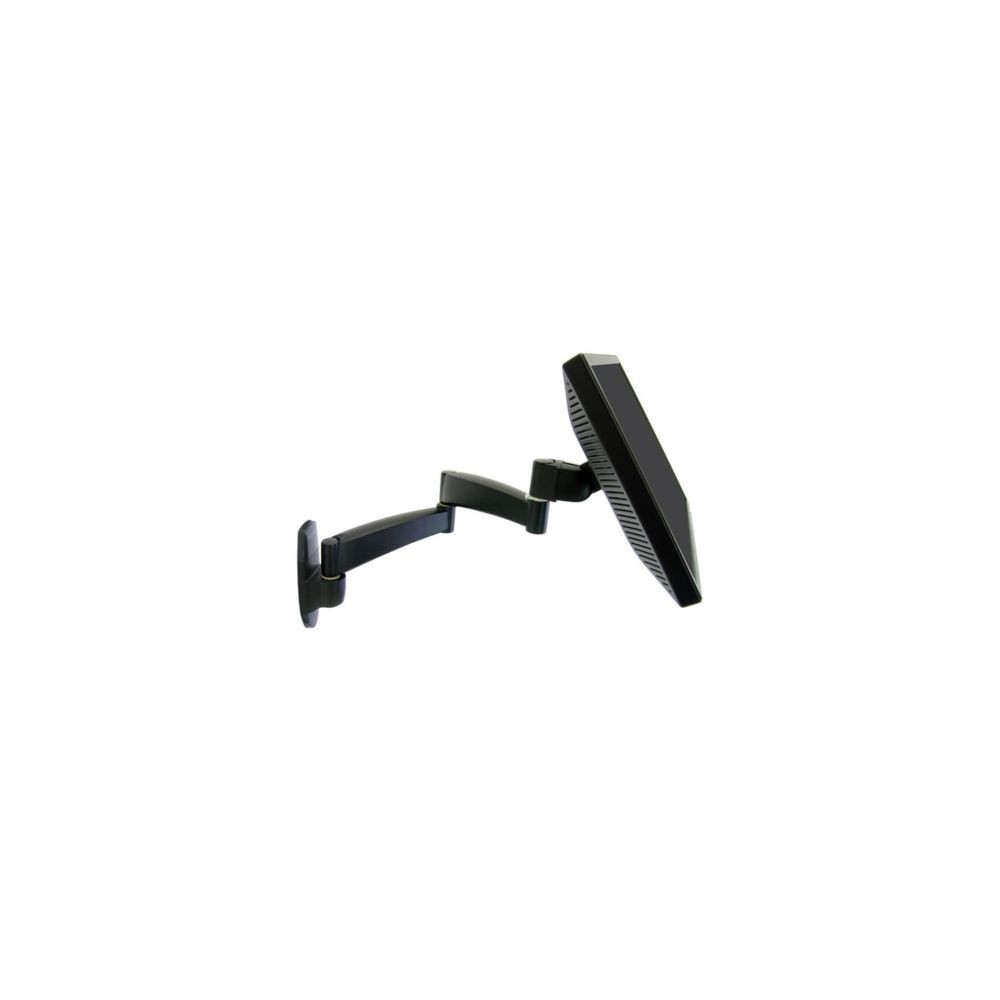

The Ergotron 45-234-200 is a 200 Series Wall Mount Arm with two extensions for positioning a single flat-panel display. Its three-point telescoping design allows the display to extend up to 23.8 inches (60.5 cm) from the wall and retract to approximately 5.8 inches (14.8 cm), excluding monitor depth.
Display Support
The 45-234-200 supports compatible displays up to 24 inches with a maximum load capacity of 25 lb (11.3 kg). Display compatibility is determined by the supported weight and VESA mounting pattern, while display size can affect the available range of motion.
Adjustability
The wall arm provides 180° tilt, 360° pan, and 360° rotation. The three-point telescoping configuration provides an extension range of up to 23.8 inches from the wall and retracts to approximately 5.8 inches, excluding the depth of the mounted display.
VESA Compatibility
The monitor mounting interface uses VESA FDMI MIS-D with 75 x 75 mm and 100 x 100 mm hole patterns. The supplied mounting hardware is intended for compatible VESA displays.
Wall Mounting
The 200 Series arm mounts to sturdy vertical surfaces and can be attached to a wood stud where applicable. The assembly uses a wall mount bracket together with the two included extensions and 200 Series wall mount pivot.
Key Features
- Supports displays up to 24 inches and 25 lb (11.3 kg)
- Two-extension design with three-point telescoping motion
- Extends up to 23.8 inches (60.5 cm) from the wall
- Provides 180° tilt, 360° pan, and 360° rotation
- Supports VESA 75 x 75 mm and 100 x 100 mm mounting patterns
Applications
The 45-234-200 is designed for wall-mounted display installations where the screen needs to extend, retract, tilt, pan, and rotate from a fixed mounting surface. Its telescoping configuration provides a broad positioning range while maintaining a compact retracted profile.
DC Supplies Product Note
The two extensions are a defining feature of this exact 45-234-200 configuration. The extensions are removable, allowing the arm configuration to be adjusted when a shorter reach is required.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-234-200 |
| Product Type | 200 Series Wall Mount Arm, 2 Extensions |
| Product Series | 200 Series |
| Color | Black |
| Display Configuration | Single display |
| Maximum Display Size | 24 inches |
| Maximum Load Capacity | 25 lb (11.3 kg) |
| Extension | Up to 23.8 inches (60.5 cm) from wall |
| Retracted Distance | Approximately 5.8 inches (14.8 cm), excluding monitor depth |
| Tilt | 180° |
| Pan | 360° |
| Rotation | 360° |
| Motion System | Three-point telescoping motion |
| VESA Standard | VESA FDMI MIS-D |
| VESA Mounting Patterns | 75 x 75 mm and 100 x 100 mm |
| Mounting Type | Wall mount |
| Mounting Surface | Sturdy vertical surfaces; wood stud where applicable |
| Construction | Aluminum, high-grade plastic, and powder-coated painted steel |
| Included Extensions | 2 |
| Shipping Weight | 8.6 lb (3.9 kg) |
| Warranty | 5 years |
| UPC | 698833010619 |
Package Contents
- 200 Series wall mount pivot
- Wall mount bracket
- Two extensions
- VESA monitor mounting screws
Frequently Asked Questions
What is the Ergotron 45-234-200?
It is a 200 Series wall-mounted monitor arm with two extensions and three-point telescoping motion for a single display.
What size display does it support?
The exact product documentation specifies displays up to 24 inches with a maximum supported load of 25 lb (11.3 kg).
How far can the arm extend?
The arm extends up to 23.8 inches (60.5 cm) from the wall and retracts to approximately 5.8 inches (14.8 cm), excluding monitor depth.
Which VESA patterns are supported?
The 45-234-200 supports VESA MIS-D mounting patterns of 75 x 75 mm and 100 x 100 mm.
Can the extensions be removed?
Yes. The two extensions are removable, allowing the configuration to be shortened when less reach is required.
What is included with the arm?
The package includes the 200 Series wall mount pivot, wall mount bracket, two extensions, and VESA monitor mounting screws.
