Overview

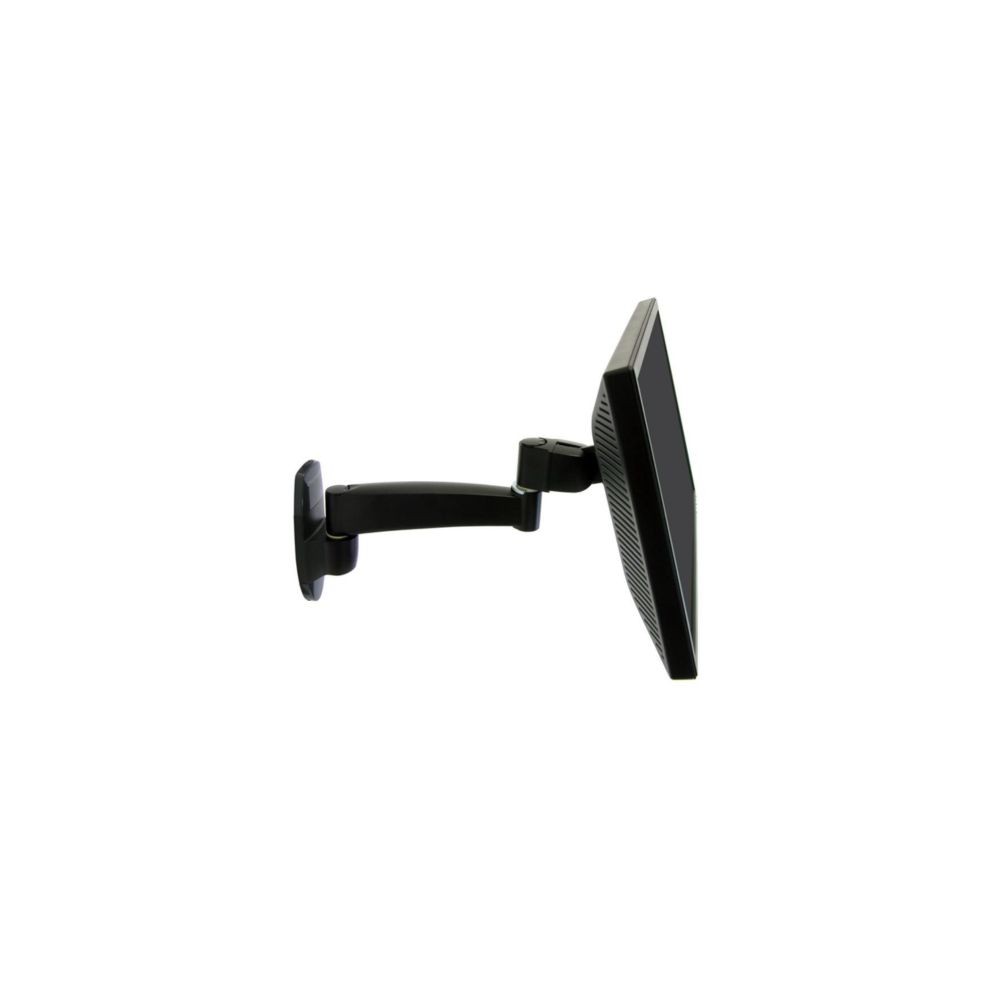

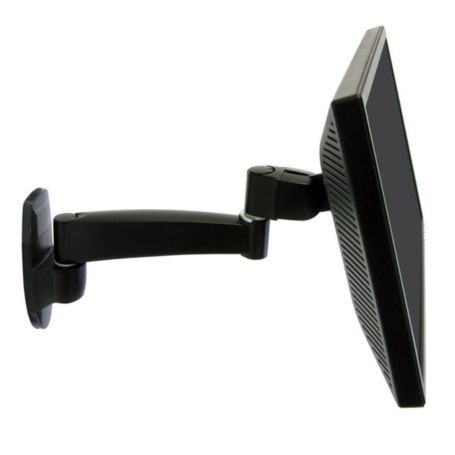

The Ergotron 45-233-200 200 Series Wall Mount Arm, 1 Extension is a single-display wall mounting solution designed to provide adjustable positioning while maintaining a compact wall profile. The arm allows a mounted display to extend away from the wall, swing into position, tilt for viewing, and rotate between landscape and portrait orientations.
Display Support
The 45-233-200 supports a single display with a maximum rated load of 25 lb (11.3 kg). Ergotron's documentation lists the typical display size as up to 24 inches, while other product documentation indicates that screen size is approximate and actual compatibility should be determined by display weight, depth, and VESA mounting pattern.
Extension and Positioning
The single-extension configuration extends up to 14.8 inches (37.6 cm) from the wall and retracts to approximately 5.8 inches (14.8 cm), excluding the depth of the display. This allows the monitor to be pulled forward for viewing and returned close to the wall when less workspace is required.
Display Adjustment
The mount provides 180° tilt, 360° pan, and 360° display rotation. The rotation capability supports both landscape and portrait display orientation. Display size can affect the available range of tilt and pan.
VESA Compatibility
The 45-233-200 uses VESA FDMI MIS-D mounting with 75 x 75 mm and 100 x 100 mm hole patterns. The included monitor mounting hardware is designed for displays using these supported patterns.
Wall Mounting
The arm mounts to sturdy vertical surfaces and, where appropriate, can be attached to a wood stud. The assembly includes the 200 Wall Mount Pivot, wall mount bracket, one extension, and VESA monitor mounting screws.
Cable Management
The 200 Series design provides cable management beneath the arm, helping route and conceal display cables as the monitor is extended and repositioned.
Key Features
- Supports a single display with up to 25 lb (11.3 kg) load capacity
- Extends up to 14.8 inches (37.6 cm) from the wall
- Retracts to approximately 5.8 inches (14.8 cm), excluding display depth
- Provides 180° tilt, 360° pan, and 360° rotation
- Supports VESA MIS-D 75 x 75 mm and 100 x 100 mm patterns
Applications
The 45-233-200 is suited to wall-mounted single-monitor installations where adjustable viewing position and a compact retracted profile are required. Its one-extension configuration provides more reach than the 45-232-200 Wall Mount Pivot while remaining more compact than the two-extension 45-234-200 configuration.
DC Supplies Product Note
When specifying this mount, verify the display's weight and VESA pattern before installation. The 25 lb rating is the key load limit, while display size may affect the available range of movement.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-233-200 |
| Product Type | 200 Series Wall Mount Arm, 1 Extension |
| Color | Black |
| Display Configuration | Single monitor |
| Typical Maximum Display Size | 24 inches |
| Maximum Load Capacity | 25 lb (11.3 kg) |
| Lift | None |
| Tilt | 180° |
| Pan | 360° |
| Rotation | 360° |
| Maximum Extension | 14.8 inches (37.6 cm) |
| Retracted Depth | Approximately 5.8 inches (14.8 cm), excluding display depth |
| VESA Standard | VESA FDMI MIS-D |
| VESA Patterns | 75 x 75 mm and 100 x 100 mm |
| Mounting Type | Wall mount |
| Mounting Surface | Sturdy vertical surfaces; wood stud where applicable |
| Cable Management | Integrated routing beneath arm |
| Construction | Aluminum, high-grade plastic, and powder-coated painted steel |
| Shipping Weight | 7.3 lb (3.3 kg) |
| Warranty | 5 years |
| UPC | 698833010602 |
Package Contents
- 200 Wall Mount Pivot
- Wall mount bracket
- One extension
- VESA monitor mounting screws
FAQs
What display size does the Ergotron 45-233-200 support?
Ergotron documentation lists the typical display size as up to 24 inches. Actual compatibility should also be checked against the 25 lb weight limit and supported VESA pattern.
What is the maximum weight capacity?
The maximum rated load is 25 lb (11.3 kg).
How far does the arm extend?
The single extension provides up to 14.8 inches (37.6 cm) of extension from the wall.
How close does it retract to the wall?
The arm retracts to approximately 5.8 inches (14.8 cm) from the wall, excluding the depth of the mounted display.
Which VESA patterns are supported?
The mount supports VESA MIS-D patterns of 75 x 75 mm and 100 x 100 mm.
Can the display be rotated?
Yes. The mount provides 360° display rotation, allowing landscape or portrait positioning.
