Overview

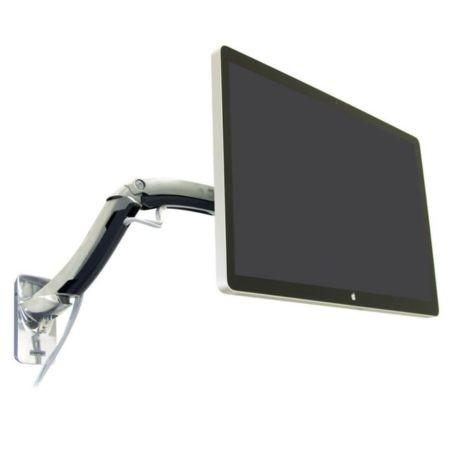

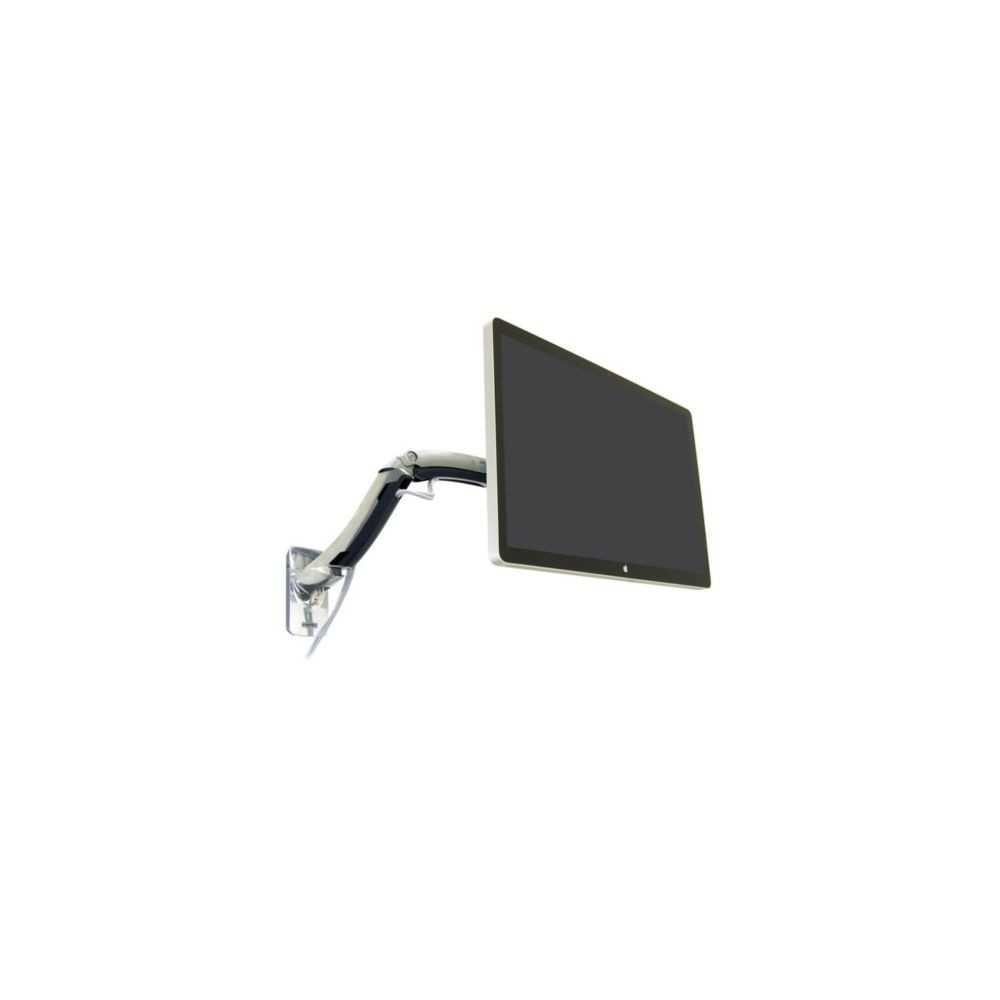

The Ergotron 45-228-026 MX Wall Mount LCD Arm is a polished aluminum wall-mounted display arm designed for mid-sized monitors, LCD displays, TVs, and compatible all-in-one computers. Its Constant Force technology provides smooth positioning, while the articulated arm extends the display from the wall and supports portrait or landscape orientation.
Display Support
The 45-228-026 supports displays up to 42 inches with a rated capacity of 14–30 lb (6.3–13.6 kg). Display size is approximate and compatibility should also be checked against the display's weight, depth, and VESA mounting pattern. Displays deeper than 4 inches (102 mm) may reduce the rated capacity.
Adjustment and Movement
The MX arm provides 5 inches (13 cm) of vertical lift, 80° of total tilt, 360° pan, and 90° rotation. The arm extends and retracts by up to 17 inches (42 cm), allowing the display to be brought forward for viewing or moved back toward the wall when not in use.
Wall Mounting
The arm uses a vertical wall-mount base and is intended for installation on a suitable structural wall surface. Ergotron recommends positioning the upper mounting hole of the base no higher than 60 inches (152 cm) above the floor.
VESA Compatibility
The 45-228-026 supports VESA FDMI MIS-D mounting patterns of 75 x 75 mm and 100 x 100 mm, MIS-E with a 200 x 100 mm pattern, and MIS-F with a 200 x 200 mm pattern. A separate VESA adaptor kit is available for certain larger 400 mm mounting patterns.
Cable Management
Integrated cable management routes and conceals display cables beneath the arm, helping keep the installation organized as the arm is repositioned.
Key Features
- Supports displays up to 42 inches and 30 lb
- Provides 5 inches of vertical lift with Constant Force positioning
- Offers 360° pan and 90° display rotation
- Extends and retracts up to 17 inches from the wall
- Supports multiple VESA MIS-D, MIS-E, and MIS-F mounting patterns
Applications
The 45-228-026 is suited to wall-mounted display installations where adjustable viewing position, portrait/landscape orientation, and substantial forward reach are required. It can accommodate mid-sized displays and compatible all-in-one computers within its specified weight and mounting limits.
DC Supplies Product Note
Before installation, verify the display's weight and depth as well as its VESA pattern. The 30 lb maximum capacity applies within the specified configuration, while displays deeper than 4 inches may reduce the supported capacity.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-228-026 |
| Product Type | MX Wall Mount LCD Arm |
| Color / Finish | Polished Aluminum |
| Display Configuration | Single display |
| Maximum Display Size | 42 inches |
| Weight Capacity | 14–30 lb (6.3–13.6 kg) |
| Lift | 5 inches (13 cm) |
| Tilt | 80° total; 75° up / 5° down |
| Pan | 360° |
| Rotation | 90° with position lock |
| Extension / Retraction | Up to 17 inches (42 cm) |
| Orientation | Landscape / Portrait |
| VESA MIS-D | 75 x 75 mm and 100 x 100 mm |
| VESA MIS-E | 200 x 100 mm |
| VESA MIS-F | 200 x 200 mm |
| Additional VESA Patterns | 400 x 200, 400 x 300, and 400 x 400 mm with separate adaptor kit |
| Mounting Type | Wall mount |
| Cable Management | Integrated |
| Construction | Aluminum |
| Product Weight | 8.1 lb (3.7 kg) |
| Warranty | 10 years |
| UPC | 698833010466 |
Package Contents
- MX Wall Mount Arm
- Vertical mount base
- VESA adaptor brackets
- Attachment hardware
FAQs
What size display does the Ergotron 45-228-026 support?
The MX Wall Mount LCD Arm supports displays up to 42 inches, subject to the specified weight capacity and mounting requirements.
What is the maximum weight capacity?
The rated capacity is 14–30 lb (6.3–13.6 kg). Displays deeper than 4 inches may reduce the supported capacity.
How far can the display extend from the wall?
The arm extends and retracts by up to 17 inches (42 cm).
Can the display be used in portrait orientation?
Yes. The mount provides 90° rotation with a position lock for landscape or portrait positioning.
Which VESA patterns are supported?
The mount supports 75 x 75 mm and 100 x 100 mm MIS-D, 200 x 100 mm MIS-E, and 200 x 200 mm MIS-F patterns. Larger 400 mm patterns require a separate VESA adaptor kit.
Does the mount provide cable management?
Yes. Integrated cable management routes cables beneath the arm.
