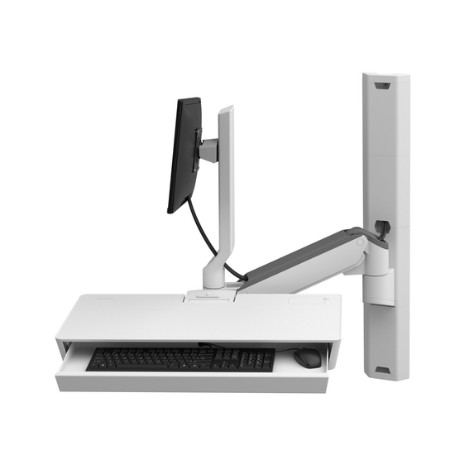

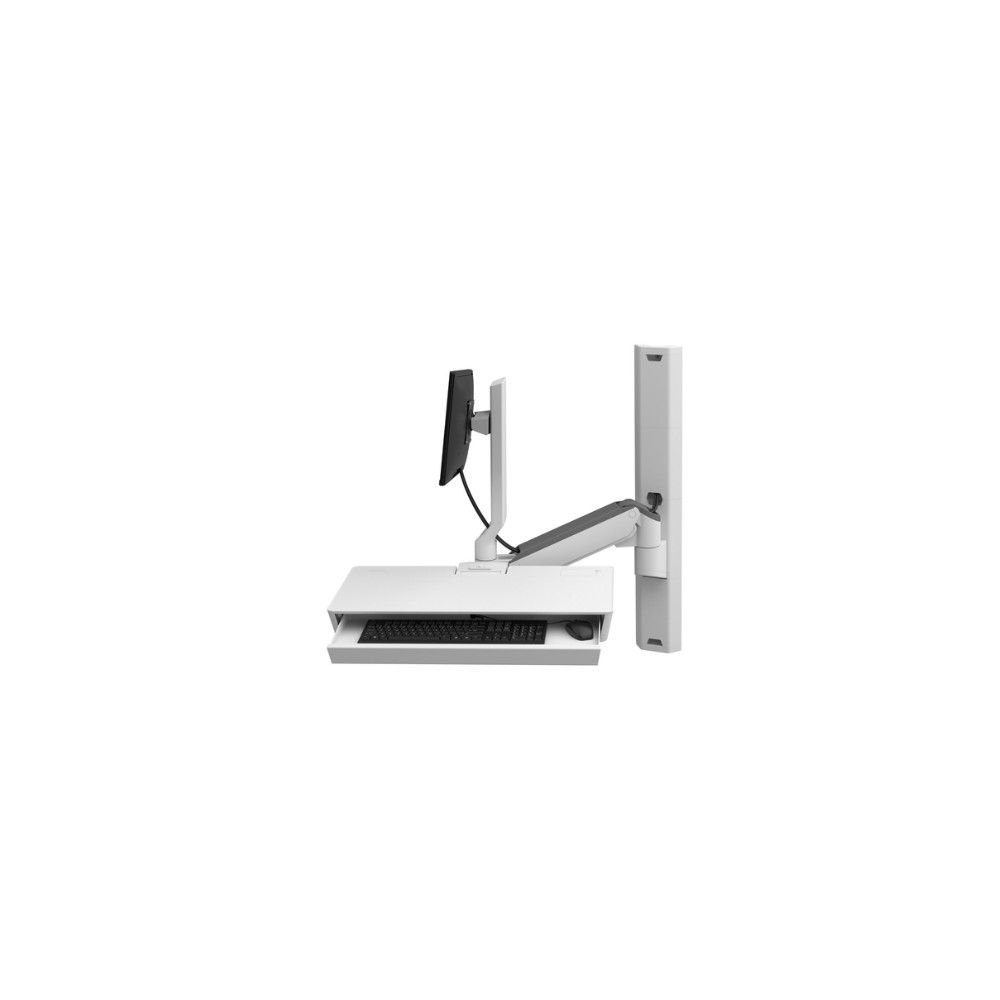

Ergotron 45-619-251 – CareFit Combo System with Worksurface
Overview
The Ergotron 45-619-251 is a CareFit™ Combo System with a full-size integrated worksurface, pull-out keyboard tray, and adjustable monitor arm. The white wall-mounted workstation is designed for healthcare environments where documentation and computer access are required at the point of care. Its modular wall-track design provides flexible positioning while concealed cable management helps maintain a clean workspace.
The system combines a monitor mount, keyboard tray, integrated worksurface, wall mount base, track adapter, and 34-inch wall track into a single workstation. The worksurface and keyboard tray can be repositioned and folded toward the wall when the workstation is not in use.
Technical Information
The CareFit Combo uses Ergotron Constant Force™ motion technology to reduce the force required to adjust the worksurface, monitor, and keyboard. The monitor and keyboard can be adjusted together through a 20-inch (51 cm) lift range, with an additional 5-inch (13 cm) independent monitor adjustment, providing a maximum monitor height adjustment of 25 inches (64 cm).
The monitor arm provides 180° of pan at two points for 360° total side-to-side arm movement. The monitor can independently pan 180° and tilt through 25°. The keyboard tray can tilt 90° upward for space-saving storage.
Compatibility
The 45-619-251 supports a single LCD monitor up to 27 inches with VESA FDMI MIS-D mounting patterns of 75 x 75 mm or 100 x 100 mm. Ergotron's current CareFit Combo documentation specifies an LCD capacity of 8–22 lb (3.6–10 kg). The keyboard and mouse support a load of 1.5 lb (0.68 kg).
The system is designed for wall installation using the included 34-inch wall track, track mount adapter, track mount bracket, wall-track covers, and mounting hardware. The full-size worksurface configuration is identified by Ergotron as 45-619-251, while 45-618-251 is the related shelf-area configuration.
Key Features
- Full-size CareFit Combo wall workstation with integrated worksurface
- 20-inch (51 cm) tandem monitor and keyboard adjustment range
- Additional 5-inch (13 cm) independent monitor adjustment
- Supports LCD displays up to 27 inches and 8–22 lb (3.6–10 kg)
- Includes pull-out keyboard tray, 34-inch wall track, concealed cable management components, and mounting hardware
Applications
The 45-619-251 is intended for healthcare and clinical workstation deployments requiring an ergonomic computer station at the point of care. Typical applications include patient rooms, examination areas, treatment spaces, clinical documentation stations, and other healthcare environments where caregivers need flexible access to a monitor, keyboard, and worksurface.
DC Supplies Product Note
Verify the wall construction, installation hardware requirements, monitor weight, VESA pattern, and available installation space before deployment. The current Ergotron CareFit Combo documentation specifies an LCD capacity of 8–22 lb (3.6–10 kg). Do not substitute the higher 23.5-lb capacity reported by some reseller listings; the current manufacturer documentation should be used for deployment planning.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-619-251 |
| Product Type | Wall-Mounted Workstation |
| Product Series | CareFit Combo |
| Configuration | Combo System with Full Worksurface |
| Color | White |
| Monitor Support | 1 LCD Display |
| Maximum Monitor Size | 27 in |
| LCD Capacity | 8–22 lb (3.6–10 kg) |
| Keyboard and Mouse Capacity | 1.5 lb (0.68 kg) |
| Tandem Lift Range | 20 in (51 cm) |
| Independent Monitor Adjustment | 5 in (13 cm) |
| Maximum Monitor Height Adjustment | 25 in (64 cm) |
| Arm Pan | 360° total side-to-side |
| Independent Monitor Pan | 180° |
| Monitor Tilt | 25° |
| Monitor Rotation | 360° |
| Keyboard Tray Tilt | 90° upward |
| VESA Mounting | VESA FDMI MIS-D |
| VESA Hole Patterns | 75 x 75 mm and 100 x 100 mm |
| Wall Track Length | 34 in |
| Mounting Type | Wall Track / Wall Mount |
| Cable Management | Concealed cable management |
| Exterior Material | Aluminum and high-grade plastic |
| Product Weight | 47.9 lb (21.8 kg) |
| Shipping Dimensions | 37.1 × 26.1 × 10 in (94 × 66 × 25 cm) |
| Shipping Weight | 59.7 lb (27.1 kg) |
| Warranty | 5 years |
FAQs
What is the Ergotron 45-619-251?
The Ergotron 45-619-251 is a CareFit Combo System with a full-size worksurface, pull-out keyboard tray, and adjustable monitor arm for wall-mounted healthcare workstation applications.
What monitor size does the 45-619-251 support?
The system supports a single LCD monitor up to 27 inches with VESA MIS-D mounting patterns of 75 x 75 mm or 100 x 100 mm.
What is the current monitor weight capacity?
Ergotron's current CareFit Combo documentation specifies an LCD capacity of 8–22 lb (3.6–10 kg).
How much height adjustment is available?
The monitor and keyboard adjust together through 20 inches (51 cm), with an additional 5 inches (13 cm) of independent monitor adjustment. The maximum monitor height adjustment is 25 inches (64 cm).
How far can the monitor arm move?
The arm provides 360° total side-to-side movement through 180° of pan at two points. The monitor can also independently pan 180°.
Can the monitor rotate?
Yes. The monitor provides 360° rotation, subject to the installed display and mounting configuration.
Can the keyboard tray be stored?
Yes. The keyboard tray tilts 90° upward for space-saving storage when the workstation is not in use.
What VESA mounting patterns are supported?
The monitor mount supports VESA FDMI MIS-D patterns of 75 x 75 mm and 100 x 100 mm.
What is included with the 45-619-251?
The system includes the combo arm, pull-out keyboard tray with integrated worksurface, wall mount base, track mount adapter, 34-inch wall track, track mount bracket, wall-track covers, cable ties, and mounting hardware.
What is the warranty?
Ergotron specifies a 5-year warranty for the CareFit Combo system.
