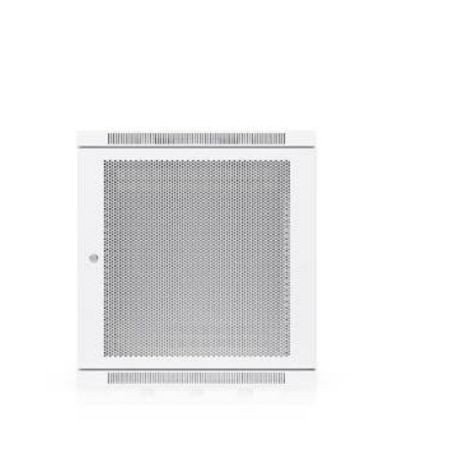

Ubiquiti UACC-RACK-12U-WALL-600-P – UniFi 12U Wall Rack Cabinet with Perforated Door
Overview
The Ubiquiti UACC-RACK-12U-WALL-600-P is a 12U, 4-post enclosed rack cabinet designed for wall-mounted network and IT equipment installations. The 600 mm cabinet depth provides space for standard 19-inch rack equipment, while the perforated front door supports airflow through the enclosure.
The cabinet is supplied as a fully assembled wall-mount rack and includes two pre-installed 120 × 120 × 38 mm AC fan units. Removable, lockable side panels provide access for installation and maintenance, while adjustable rack mounting depth accommodates equipment with different chassis depths.
Technical Information
The cabinet provides 12U of rack capacity with square mounting holes and an adjustable mounting depth of 448 mm by default or up to 508 mm. The rack enclosure measures 598 × 600 × 639 mm and supports a maximum equipment load of 80 kg.
The enclosure is constructed from SPCC steel with 1.2 mm main body and door/side-panel material and 2 mm mounting posts. The perforated front door is reversible and configured for left-hand outswing by default. Two solid side panels are removable and lockable.
Compatibility
The UACC-RACK-12U-WALL-600-P is intended for standard 19-inch rack equipment compatible with its 12U height, square mounting holes, and available mounting depth. Before installation, verify that the equipment chassis depth, cable routing, wall structure, and combined installed equipment weight are within the cabinet's specifications.
Key Features
- 12U, 4-post enclosed wall-mount rack cabinet.
- 600 mm cabinet depth with 448 mm default and 508 mm maximum adjustable mounting depth.
- Perforated reversible front door for airflow through the rack enclosure.
- Two pre-installed 120 × 120 × 38 mm AC fan units.
- 80 kg maximum weight capacity with removable and lockable side panels.
Applications
The cabinet is suited to wall-mounted network rooms, communications spaces, branch installations, small equipment rooms, and other deployments requiring enclosed 19-inch rack storage where floor space is limited.
DC Supplies Product Note
Confirm the wall structure and anchoring method can support the cabinet together with the installed equipment. The rack has an 80 kg maximum weight capacity, but the suitability of a particular wall and fixing method depends on the installation structure.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-RACK-12U-WALL-600-P |
| Product Type | 12U Wall-Mount Rack Cabinet |
| Rack Type | 4-post, enclosed cabinet |
| U Height | 12U |
| Mounting | Wall mount |
| Mounting Hole Type | Square |
| Rack Dimensions | 598 × 600 × 639 mm |
| Adjustable Mounting Depth | 448 mm default; 508 mm maximum |
| Adjustable Pitch | 20 mm |
| Maximum Weight Capacity | 80 kg |
| Front Door | Perforated; reversible; default left-hand outswing |
| Side Panels | 2 solid, removable and lockable |
| Fan Module | 2 × 120 × 120 × 38 mm AC fan units, pre-installed |
| Acoustic Noise | ≤ 50 dB(A) sound pressure level |
| Enclosure Material | SPCC steel |
| Main Body Thickness | 1.2 mm |
| Door / Side Panel Thickness | 1.2 mm |
| Mounting Post Thickness | 2 mm |
| Color | White |
| Surface Treatment | Powder coating |
| Rack Weight | 26.4 kg |
| Cable Entry | Rear wall: 350 × 100 mm; Top/Bottom: 336.5 × 52.5 mm |
| Security | Front door lock; 4 side-panel locks; 2 keys |
| Standards | CE; EIA/ECA-310-E; RoHS |
| NDAA Compliant | Yes |
FAQs
How many rack units does the UACC-RACK-12U-WALL-600-P provide?
The cabinet provides 12U of rack mounting capacity.
What is the maximum mounting depth?
The adjustable mounting depth is 448 mm by default and can be increased to a maximum of 508 mm.
Does the rack have built-in cooling?
Yes. The cabinet includes two pre-installed 120 × 120 × 38 mm AC fan units.
What type of front door does this rack use?
The cabinet has a perforated front door. It is reversible and is configured for left-hand outswing by default.
What is the maximum equipment weight?
The specified maximum weight capacity is 80 kg.
Are the side panels removable?
Yes. Both solid side panels are removable and lockable.
