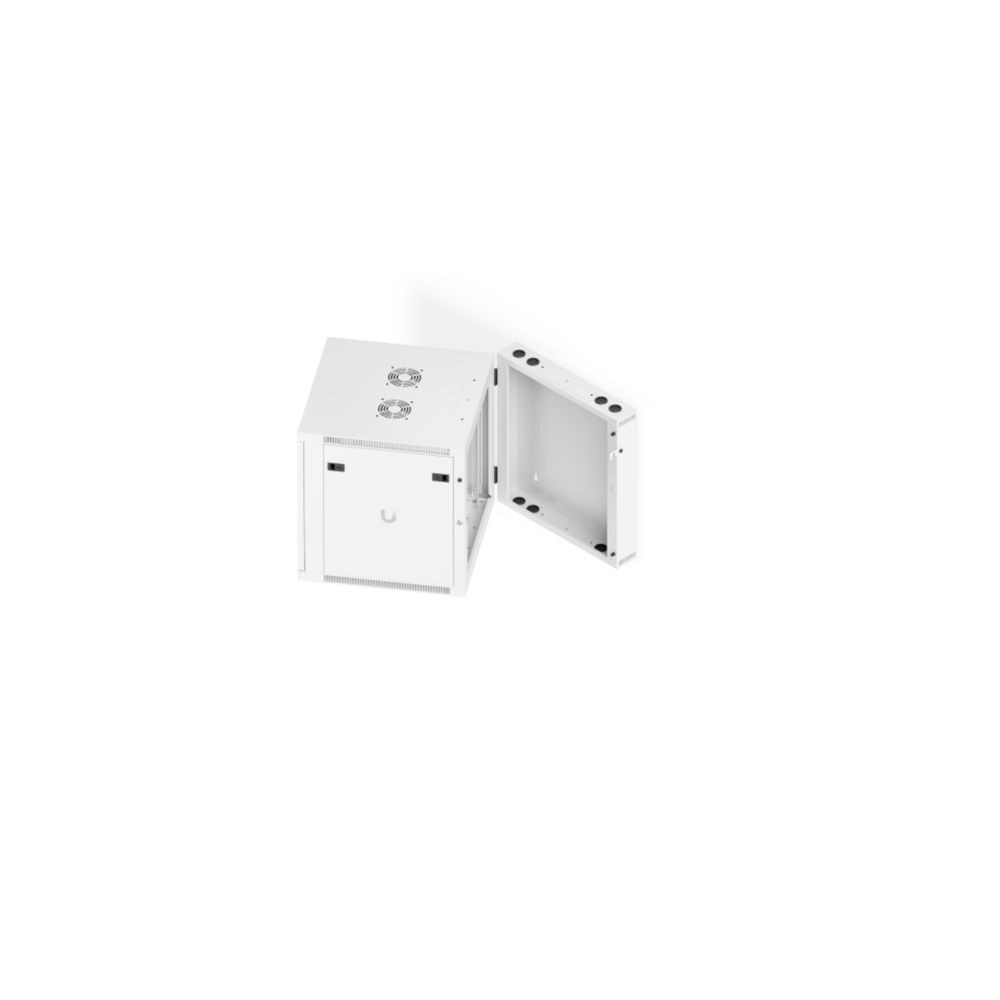

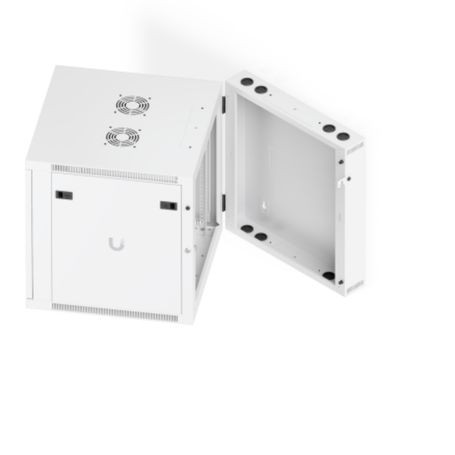

Ubiquiti UACC-RACK-12U-WALL-SW-G – 12U Swing Wall-Mount Rack Cabinet with Glass Door
Overview
The Ubiquiti UACC-RACK-12U-WALL-SW-G is a 12U, four-post enclosed rack cabinet designed for wall-mounted network equipment installations. It combines a tempered glass front door with a solid swing-out rear door, removable lockable side panels, and integrated cooling fans.
The cabinet provides 80 kg maximum load capacity and adjustable equipment mounting depth from 434 mm to 559 mm. Its 600 × 703 × 639 mm rack dimensions provide a compact enclosure for network and infrastructure equipment where wall-mounted installation and rear access are required.
Technical Information
The cabinet is constructed from SPCC steel with 1.2 mm door and side panels, a 1.2 mm main body, and 2 mm mounting posts. The front tempered-glass door is configured for left-hand outward swing and can be reversed.
Two pre-installed 120 × 120 × 38 mm AC fan units provide active cabinet ventilation. Ubiquiti specifies acoustic noise of ≤50 dB(A) and provides cable-entry openings on the rear wall, top, and bottom of the cabinet.
Compatibility
UACC-RACK-12U-WALL-SW-G is a standard 19-inch, four-post rack cabinet with square mounting holes. Its adjustable mounting depth accommodates equipment according to the available 434–559 mm mounting range. Confirm equipment depth, rear clearance, cable routing, and total installed weight before deployment.
Key Features
- 12U four-post enclosed wall-mount rack cabinet
- Tempered glass reversible front door with swing-out rear door
- 80 kg maximum weight capacity
- Two pre-installed 120 × 120 × 38 mm AC fan units
- Removable and lockable side panels with adjustable mounting depth
Applications
- Wall-mounted network equipment installations
- Small and medium-sized network infrastructure deployments
- Branch and edge network equipment rooms
- Security and communications equipment installations
- Compact rack deployments requiring front and rear equipment access
DC Supplies Product Note
The swing-out rear section provides access to the rear of installed equipment without removing the cabinet from the wall. Verify wall construction and mounting requirements against the installed equipment load before deployment.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-RACK-12U-WALL-SW-G |
| Product Type | 12U Wall-Mount Rack Cabinet |
| Rack Size | 12U, 19-inch |
| Rack Type | 4-post, enclosed cabinet |
| Mounting | Wall mount |
| Mounting Hole Type | Square |
| Rack Dimensions | 600 × 703 × 639 mm |
| Adjustable Mounting Depth | 434 mm default; 559 mm maximum |
| Adjustable Pitch | 25 mm |
| Maximum Weight Capacity | 80 kg |
| Enclosure Material | SPCC steel |
| Front Door | Tempered glass, reversible, left-hand outswing default |
| Rear Door | Solid swing-out |
| Side Panels | 2 solid, removable and lockable |
| Fan Module | 2 pre-installed 120 × 120 × 38 mm AC fans |
| Acoustic Noise | ≤50 dB(A) |
| Color | White |
| Treatment | Powder coating |
| Rack Weight | 29.4 kg |
| Grounding | Grounding lugs |
| Standards | CE, EIA/ECA-310-E, RoHS |
| NDAA Compliant | Yes |
FAQs
What is the Ubiquiti UACC-RACK-12U-WALL-SW-G?
It is a 12U, four-post enclosed rack cabinet designed for wall-mounted installation of compatible 19-inch equipment.
What is the maximum equipment depth?
The adjustable mounting depth ranges from 434 mm by default to a maximum of 559 mm.
How much equipment can the cabinet support?
The specified maximum weight capacity is 80 kg.
What type of front door does the cabinet have?
The cabinet uses a tempered glass front door that is reversible and configured for left-hand outward swing by default.
Does the cabinet include cooling fans?
Yes. Two 120 × 120 × 38 mm AC fan units are pre-installed.
Can the side panels be removed?
Yes. Both solid side panels are removable and lockable.
