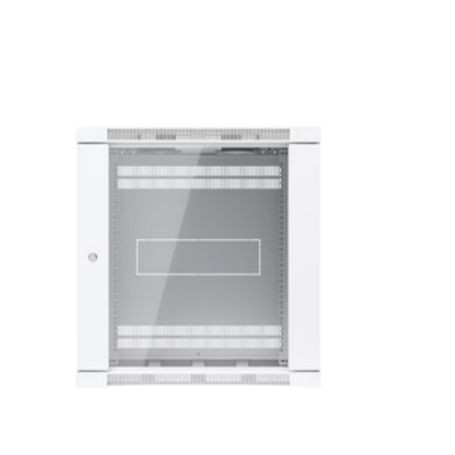

Ubiquiti UACC-RACK-12U-WALL-600-G 12U Wall-Mount Rack Cabinet with Glass Door
Overview
The Ubiquiti UACC-RACK-12U-WALL-600-G is a 12U, four-post enclosed rack cabinet designed for wall-mounted network and IT equipment installations. The cabinet has a 600 mm rack depth, tempered glass front door, removable lockable side panels, and integrated AC fan units for equipment enclosure ventilation. Ubiquiti specifies a maximum equipment weight capacity of 80 kg.
Rack Configuration
The cabinet provides square mounting holes with an adjustable mounting depth of 448 mm by default and up to 508 mm maximum. The mounting depth has a 20 mm adjustment pitch. The four-post enclosure is designed for 19-inch rack equipment and provides 12U of vertical equipment space.
Access and Ventilation
The front door uses tempered glass and is configured for left-hand outswing by default, with a reversible door design. Two solid side panels are removable and lockable. The cabinet includes two pre-installed 120 × 120 × 38 mm AC fan units, and Ubiquiti specifies acoustic noise of ≤50 dB(A) sound pressure level.
Cable Management and Security
Cable entry openings are provided at the rear wall, top, and bottom of the cabinet. Grounding lugs are included. Security provisions include one front door lock, four side panel locks, and two keys.
Key Features
- 12U four-post enclosed wall-mount rack cabinet
- 600 mm rack depth with 448–508 mm adjustable mounting depth
- Tempered glass front door with reversible left-hand outswing configuration
- Two pre-installed 120 × 120 × 38 mm AC fan units
- 80 kg maximum weight capacity with removable lockable side panels
Applications
The UACC-RACK-12U-WALL-600-G is intended for indoor wall-mounted installations where rack equipment needs enclosed protection and controlled physical access. Its 12U capacity and adjustable mounting depth can accommodate compatible network, security, and IT equipment within the specified mechanical limits.
DC Supplies Product Note
Confirm equipment depth and mounting requirements before installation. Although the cabinet has a 600 mm overall rack depth, the specified adjustable equipment mounting depth is 448 mm by default and 508 mm maximum. Equipment exceeding the supported mounting depth should not be assumed to fit.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-RACK-12U-WALL-600-G |
| Product Type | 12U Wall-Mount Rack Cabinet |
| Rack Size | 19-inch |
| U Height | 12U |
| Rack Type | 4-post, enclosed cabinet |
| Mounting | Wall mount |
| Mounting Hole Type | Square |
| Rack Dimensions | 598 × 600 × 639 mm (23.5 × 23.6 × 25.2") |
| Adjustable Mounting Depth | 448 mm default; 508 mm maximum |
| Mounting Depth Adjustment Pitch | 20 mm (0.8") |
| Maximum Weight Capacity | 80 kg (176 lb) |
| Enclosure Material | SPCC steel |
| Door and Side Panel Thickness | 1.2 mm (0.05") |
| Post Thickness | 2 mm (0.08") |
| Color | White |
| Surface Treatment | Powder coating |
| Front Door | Tempered glass; left-hand outswing, reversible |
| Side Panels | 2 solid, removable and lockable |
| Fan Module | 2 pre-installed 120 × 120 × 38 mm AC fan units |
| Acoustic Noise | ≤50 dB(A) sound pressure level |
| Rear Cable Entry | 350 × 100 mm (13.8 × 3.9") |
| Top and Bottom Cable Entry | 336.5 × 52.5 mm (13.2 × 2.1") each |
| Security | 1 front door lock, 4 side panel locks, 2 keys |
| Grounding Lugs | Yes |
| Standards | CE; EIA/ECA-310-E; RoHS |
| NDAA Compliant | Yes |
| Rack Weight | 28.2 kg (62.2 lb) |
Frequently Asked Questions
How many rack units does the UACC-RACK-12U-WALL-600-G provide?
The cabinet provides 12U of rack space in a four-post enclosed configuration.
What is the maximum mounting depth?
The adjustable mounting depth is 448 mm by default and can be increased to 508 mm maximum in 20 mm adjustment increments.
How much equipment weight can the cabinet support?
Ubiquiti specifies a maximum weight capacity of 80 kg (176 lb).
Does the cabinet include ventilation fans?
Yes. Two 120 × 120 × 38 mm AC fan units are pre-installed in the cabinet.
Can the front door be reversed?
Yes. The tempered glass front door is specified as a reversible design and defaults to left-hand outswing.
Are the side panels removable?
Yes. Both solid side panels are removable and lockable.
