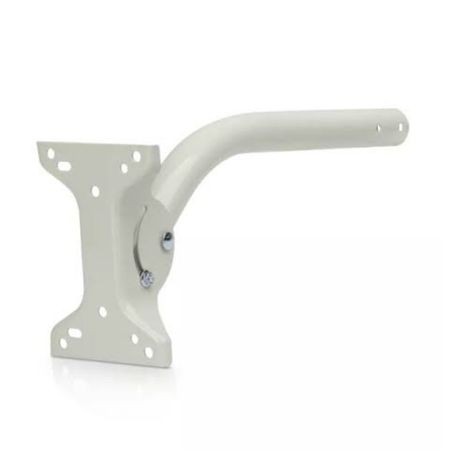

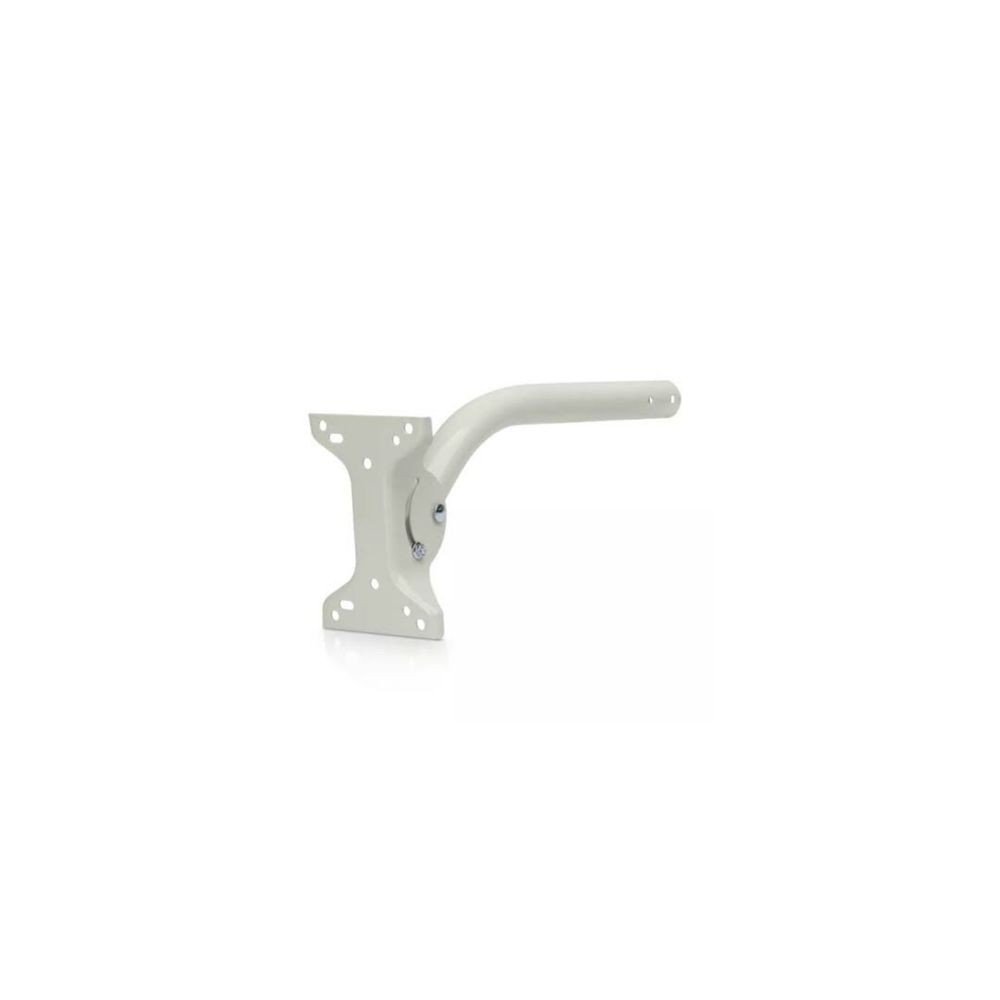

The Ubiquiti UB-AM-10 is a 10-pack of Universal Antenna Mounts designed to provide flexible wall and pole mounting for compatible Ubiquiti wireless equipment. Each mount uses a galvanized steel and powder-coated construction with an adjustable 90° tilt mechanism for installation alignment.
Overview
The UB-AM provides a versatile mounting platform for compatible Ubiquiti antennas and wireless devices. Its wall-mount design incorporates a pivoting pole section that allows the mounted equipment to be positioned and aligned after installation.
Mounting and Adjustment
The mount provides up to 90° tilt adjustment and includes mounting hardware for assembly. The design incorporates a 1.5-inch diameter steel pipe and multiple pipe-mount holes to provide installation flexibility. A standard U-bolt can be used for pole mounting where appropriate.
Construction
The mount is constructed from galvanized steel with a powder-coated finish for outdoor deployment. The supplied mounting components include the base, pole, pivot bolt, adjusting bolts, and serrated flange nuts.
Key Features
- 10 universal antenna mounts per pack
- Up to 90° tilt adjustment
- Galvanized steel construction with powder-coated finish
- 1.5-inch diameter steel mounting pipe
- Supports wall and pole mounting configurations
Applications
The UB-AM-10 is suited to wireless infrastructure deployments requiring multiple mounting brackets for compatible Ubiquiti antennas, radios, and other equipment. The adjustable design can be used where mounting orientation needs to be fine-tuned during installation.
DC Supplies Product Note
The UB-AM-10 is a 10-pack variant of the UB-AM Universal Antenna Mount, making it suitable for installations requiring multiple identical mounting assemblies.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UB-AM-10 |
|---|
| Product Type | Universal Antenna Mount, 10-Pack |
|---|
| Pack Quantity | 10 Mounts |
|---|
| Mounting Type | Wall / Pole |
|---|
| Tilt Adjustment | Up to 90° |
|---|
| Pipe Diameter | 1.5 in |
|---|
| Construction | Galvanized Steel |
|---|
| Finish | Powder Coated |
|---|
| Dimensions | 19.1 × 6.4 × 4.9 in per mount |
|---|
| Weight | 2.2 lb per mount |
|---|
FAQs
How many mounts are included in UB-AM-10?
The UB-AM-10 contains 10 Universal Antenna Mount assemblies.
Can the UB-AM be wall mounted?
Yes. The UB-AM is designed as a universal mounting bracket for wall-mounted installations and can also be configured for pole mounting.
Does the mount provide tilt adjustment?
Yes. The mounting assembly provides up to 90° of tilt adjustment.
What is the UB-AM made from?
The mount uses galvanized steel with a powder-coated finish.
What is the difference between UB-AM and UB-AM-10?
UB-AM is the individual Universal Antenna Mount, while UB-AM-10 is the 10-pack variant.
