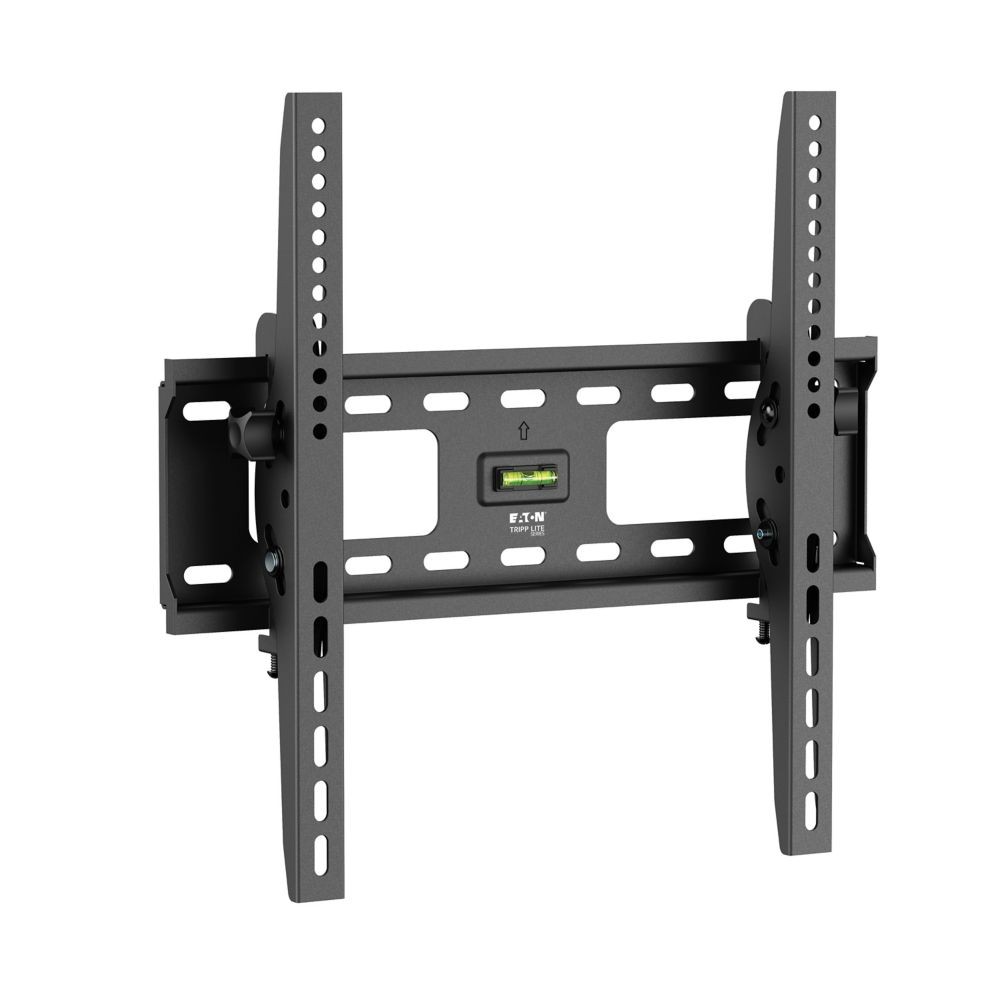

Eaton Tripp Lite DWT2655XP Tilt Wall Mount
The Eaton Tripp Lite DWT2655XP is a VESA-compliant tilt wall mount for mounting compatible flat-panel TVs, monitors and other displays from 26 to 55 inches. Its low-profile steel construction supports displays weighing up to 165 pounds (74.8 kg) and provides -10° to +10° tilt adjustment for changing the viewing angle.
Mounting and Display Adjustment
The DWT2655XP uses adjustable mounting rails to accommodate off-center wall studs and a built-in bubble level to assist with display alignment during installation. Its open-frame design provides access to the wall area behind the display, while the low-profile configuration keeps the mount largely concealed behind the installed screen.
VESA Compatibility
The mount supports multiple VESA mounting patterns, including 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300 and 400 x 400 mm. The compatible display must fall within the specified screen-size and weight limits and have a supported VESA hole pattern.
Construction and Installation
The wall mount is constructed from steel with a black scratch-resistant powder-coated finish. Mounting hardware is included for installation on compatible wood-stud, concrete or brick walls. Assembly and installation require tools.
Key Features
- Supports most compatible 26–55 inch flat-panel displays
- Supports up to 165 lb. (74.8 kg)
- -10° to +10° tilt adjustment
- Multiple VESA mounting patterns from 200 x 200 through 400 x 400 mm
- Built-in bubble level and adjustable rails for installation alignment
Applications
- Wall-mounted TVs in home theater environments
- Classroom and training-room displays
- Conference-room and boardroom monitors
- Hotel, restaurant and commercial displays
- Digital signage and presentation displays with compatible VESA patterns
DC Supplies Product Note
Before installation, verify both the display's VESA pattern and total weight; the DWT2655XP's 165 lb. rating does not replace the need to confirm that the mounting surface can safely support the complete installation.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | DWT2655XP |
| Product Type | Tilt Wall Mount |
| Display Type | Monitor / HDTV |
| Number of Displays | 1 |
| Supported Screen Size | 26–55 in. |
| Maximum Weight Capacity | 165 lb. (74.8 kg) |
| Motion | Tilt |
| Tilt Range | -10° to +10° |
| VESA Patterns | 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400 mm |
| Mounting Location | Wall |
| Material | Steel |
| Color | Black |
| Finish | Scratch-resistant powder coat |
| Mounting Features | Adjustable rails, built-in bubble level |
| Wall Compatibility | Wood stud, brick and concrete |
| Product Dimensions | 19.2 x 6.2 x 3.0 in. |
| Product Weight | 6.28 lb. |
| Assembly | Required |
| Tools Required | Yes |
| Compliance | RoHS, RoHS3, REACH |
| Warranty | 5-year limited warranty |
Frequently Asked Questions
What screen sizes does the DWT2655XP support?
The DWT2655XP is designed for compatible flat-panel displays from 26 to 55 inches.
How much weight can the mount support?
The maximum listed weight capacity is 165 pounds (74.8 kg).
How much can the display tilt?
The mount provides -10° to +10° of tilt adjustment.
Which VESA patterns are supported?
Supported patterns include 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300 and 400 x 400 mm.
Does the DWT2655XP include mounting hardware?
Yes. The manufacturer lists multiple M5, M6 and M8 screws, washers, spacers, anchor bolts and concrete anchors among the included mounting hardware.
