Detailed Specifications

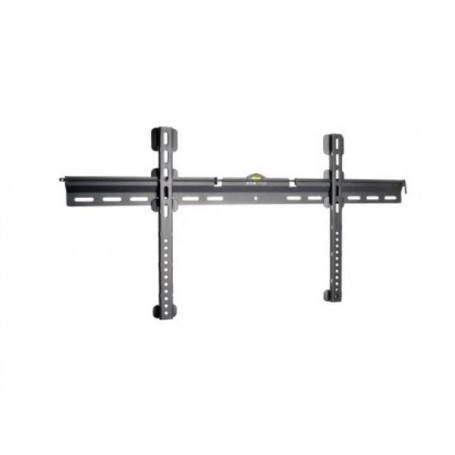

Eaton DWF3770L Fixed TV Wall Mount Compatible Tripp Lite
Overview :
The Eaton DWF3770L is a VESA-compatible fixed wall mount for flat-panel TVs, monitors and commercial displays from 37 to 70 inches. Its low-profile design positions the display approximately 1.18 inches (30 mm) from the wall for a compact installation.
The all-steel construction supports displays weighing up to 65 kg (143 lb). Horizontal adjustment helps compensate for off-center wall studs, while the built-in bubble level assists with accurate installation. The open-frame design provides easier access to the wall area during installation.
Key Features :
- Fixed wall-mount design for flat-panel displays
- Supports 37–70 inch screens
- Maximum load capacity 65 kg / 143 lb
- Low-profile 1.18 in / 30 mm wall clearance
- VESA-compatible mounting system
- Durable all-metal steel construction
- Scratch-resistant powder-coated black finish
- Horizontal rail adjustment for off-center studs
- Built-in bubble level for display alignment
- Open-frame design for easier wall access
- Suitable for TVs, monitors, classrooms, boardrooms and digital signage
- Mounting hardware included
- 5-year limited worldwide warranty
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Model | DWF3770L |
| Product Type | Fixed TV/Monitor Wall Mount |
| Mounting Type | Wall Mount |
| Motion | Fixed |
| Display Size | 37–70 in. |
| Maximum Load | 65 kg / 143 lb |
| VESA Patterns | 300×200 to 800×400 mm |
| Maximum VESA | 800×400 mm |
| Wall Clearance | 1.18 in. / 30 mm |
| Material | Steel |
| Finish | Black powder coat |
| Horizontal Adjustment | Yes |
| Bubble Level | Built-in |
| Number of Displays | 1 |
| Installation Location | Wall |
| Mounting Hardware | Included |
