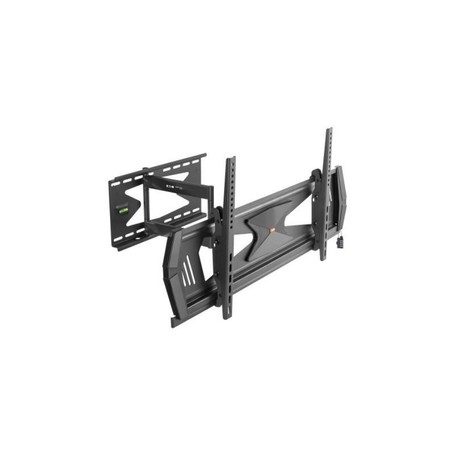

Eaton DWMSC3780MUL Heavy-Duty Full-Motion Security TV Wall Mount Compatible Tripp Lite

Overview :

The Eaton DWMSC3780MUL is a heavy-duty full-motion security wall mount for 37- to 80-inch flat or curved displays. The product is part of the TRIPP LITE by Eaton display-mount range and supports a single display weighing up to 88 lb (39.9 kg). It is designed for wall-mounted TVs, monitors and displays in commercial, institutional and public-facing environments.

The mount provides full-motion positioning with 180° swivel capability, -10° to +5° tilt, and -4° to +4° screen-level adjustment. Its open-frame construction provides access to display cabling, while the built-in bubble level assists with installation alignment.

A solid steel security bar and included combination lock help deter tampering and unauthorized removal. The assembly is function- and weight-tested to 200 lb (90.7 kg) in accordance with UL 2442, while the specified maximum display load is 88 lb.

Key Features :

• Supports 37- to 80-inch flat or curved displays
• Maximum display load of 88 lb (39.9 kg)
• Function- and weight-tested to 200 lb under UL 2442
• Full-motion design with 180° swivel capability
• Tilt adjustment from -10° to +5°
• Screen-level adjustment from -4° to +4°
• Supports VESA mounting patterns up to 800 × 400 mm
• Solid steel security bar with included combination lock
• Open-frame design provides cable access
• Built-in bubble level for installation alignment
• Heavy-duty steel construction with black finish
• Five-year limited warranty
