Detailed Specifications

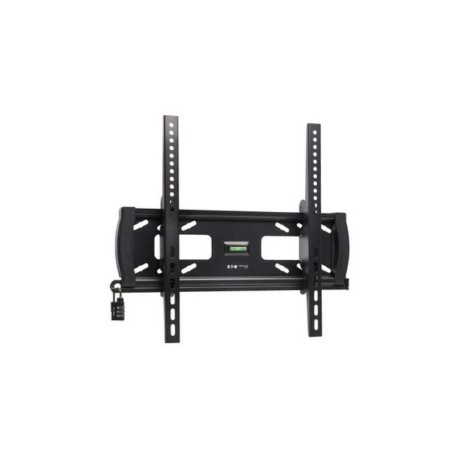

Eaton DWTSC3255MUL Heavy-Duty Tilt Security Wall Mount for 32-55" Displays Compatible Tripp Lite
Overview :
The Eaton DWTSC3255MUL is a heavy-duty tilt security wall mount designed for flat or curved displays from 32 to 55 inches. Eaton is the manufacturer/brand, while Tripp Lite is the compatible brand. The mount supports displays weighing up to 99 lb (45 kg) and provides -15° to +10° tilt adjustment.
The steel wall mount supports VESA mounting patterns from 200 × 200 mm through 400 × 400 mm, including 200 × 200, 300 × 300, 400 × 200 and 400 × 400 mm configurations. A security bar with combination lock helps deter unauthorized removal of the display.
Key Features :
- Heavy-duty security wall mount
- Supports 32-55 inch flat or curved displays
- Maximum display weight: 99 lb (45 kg)
- Tilt adjustment from -15° to +10°
- Supports VESA patterns up to 400 × 400 mm
- Solid steel construction
- Security bar with combination lock
- Open architecture for cable access
- Built-in level adjustment
- Includes mounting hardware
- Black finish
- UL 2442 certified
- 5-year limited warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | DWTSC3255MUL |
| Product Type | Heavy-Duty Tilt Security Wall Mount |
| Mounting Location | Wall |
| Supported Display Size | 32-55 in |
| Number of Displays | 1 |
| Maximum Load Capacity | 99 lb (45 kg) |
| Maximum Tested Load | 150 lb (68 kg) |
| Motion | Tilt |
| Tilt Range | -15° to +10° |
| VESA Pattern | 200 × 200 to 400 × 400 mm |
| VESA Configurations | 200×200, 300×300, 400×200, 400×400 mm |
| Material | Steel |
| Color | Black |
| Security Lock | Yes |
| Cord Management | No |
| Assembly Required | Yes |
| Tools Required | Yes |
| Certifications | UL 2442 |
| Compliance | RoHS3, REACH |
