Detailed Specifications

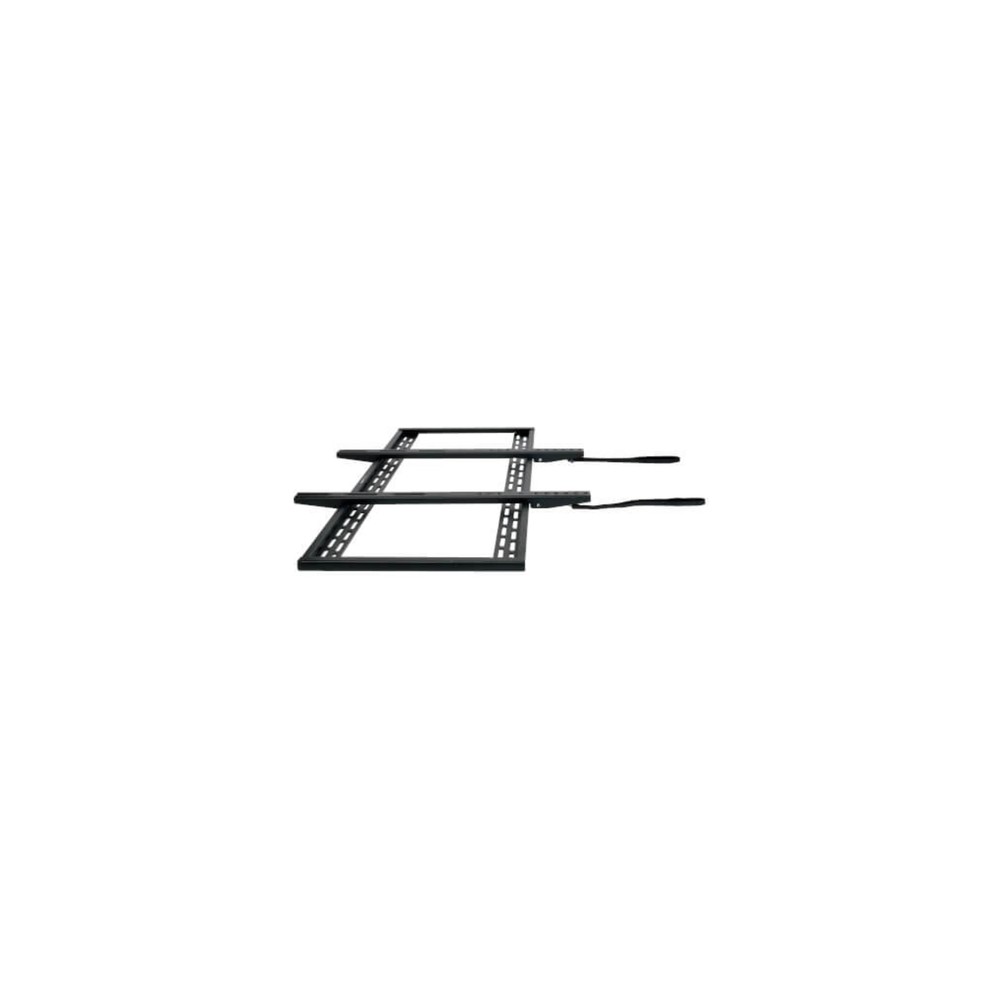

Eaton DWF60100XX Fixed Wall Mount for 60,100 Displays
Overview
The Eaton DWF60100XX is a heavy-duty fixed wall mount designed for large-format displays ranging from 60 to 100 inches. It is used in commercial AV installations where a low-profile, high-load-capacity mounting solution is required for televisions and professional displays.
This mount supports up to 350 lb (158.8 kg) and is built with an all-metal steel frame for structural rigidity and long-term stability. The fixed, non-tilt design keeps displays flush against the wall, making it suitable for boardrooms, control rooms, classrooms, hospitality environments, retail signage, and digital display deployments.
It is VESA-compatible across a wide range of mounting patterns (up to 900 × 600 mm), allowing integration with most commercial large-format displays. The open-frame design provides wall access for cabling and simplifies installation alignment on standard wall studs.
This mount is not intended for adjustable viewing angles, articulated motion, or small consumer TVs below 60 inches. It is strictly a fixed-position structural mounting system for large, heavy displays.
Key Features
- Supports large displays from 60" to 100"
- Heavy-duty steel construction rated up to 350 lb
- Low-profile fixed design keeps display flush to wall
- Wide VESA compatibility up to 900 × 600 mm
- Open-frame structure simplifies installation access
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | DWF60100XX |
| Product Type | Fixed Wall Mount |
| Supported Display Size | 60-100 in |
| Load Capacity | 350 lb (158.8 kg) |
| Mount Type | Fixed (non-tilt) |
| VESA Compatibility | Up to 900 × 600 mm |
| Material | Steel |
| Finish | Powder-coated black |
| Installation Type | Wall-mounted |
| Design | Open-frame low-profile |
| Application | Commercial AV / signage |
