Detailed Specifications

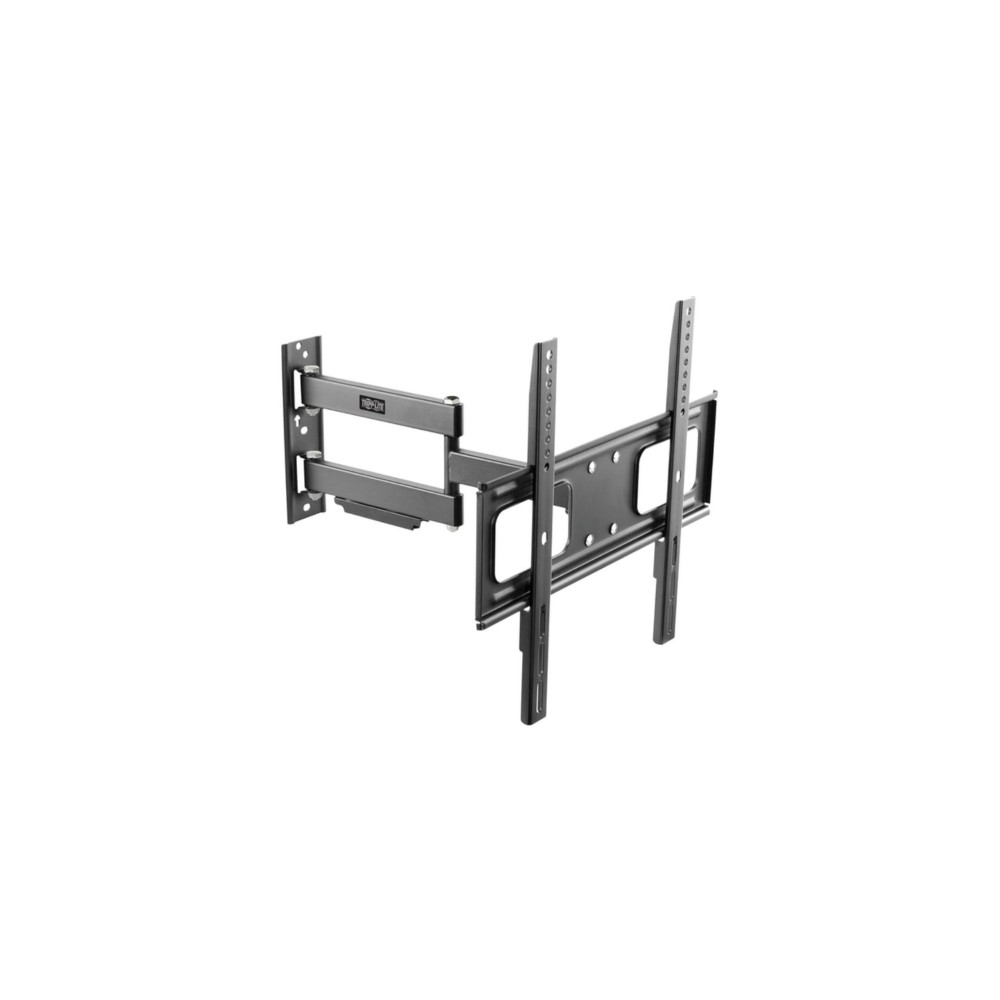

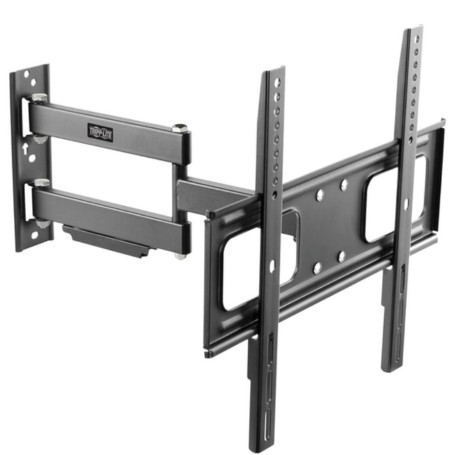

Eaton DWM3270XOUT Outdoor Full Motion Wall Mount
Overview
The Eaton DWM3270XOUT is a heavy-duty outdoor-rated full-motion wall mount designed for 32-80 inch flat-panel displays. It is engineered for digital signage, AV installations, and outdoor viewing environments such as patios, stadium-adjacent areas, transportation hubs, retail exteriors, and hospitality venues.
It features a fully articulating arm mechanism that enables tilt, swivel, and extension adjustments to optimize viewing angles and reduce glare in variable lighting conditions. The mount supports up to 110 lb (≈50 kg), making it suitable for large commercial displays used in continuous-duty applications.
Designed with a weather-resistant steel frame and powder-coated finish, the unit is built to withstand outdoor exposure including rain and environmental humidity while maintaining structural stability under repeated movement.
It supports standard VESA mounting patterns up to 400 × 400 mm and is intended for fixed wall installations only. It is not designed for ceiling mounting, freestanding deployment, or non-VESA compatible displays.
Key Features
- Full-motion arm supports tilt, swivel, and extension adjustments
- Outdoor-rated steel construction with weather-resistant finish
- Supports large displays up to 80 inches and 110 lb load
- Wide VESA compatibility for enterprise display integration
- Cable management integrated into articulating arm system
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | DWM3270XOUT |
| Product Type | Outdoor Full-Motion Wall Mount |
| Display Size Support | 32-80 in |
| Maximum Load Capacity | 110 lb (50 kg) |
| Motion Type | Full-motion (tilt / swivel / extension) |
| Tilt Range | -20° to +10° |
| Swivel Range | ±90° to ±180° |
| VESA Compatibility | 200×200 to 400×400 mm |
| Material | Steel |
| Finish | Powder-coated |
| Mount Type | Wall mount |
| Application | Outdoor / commercial AV / signage |
| Installation Surface | Wood, brick, concrete |
