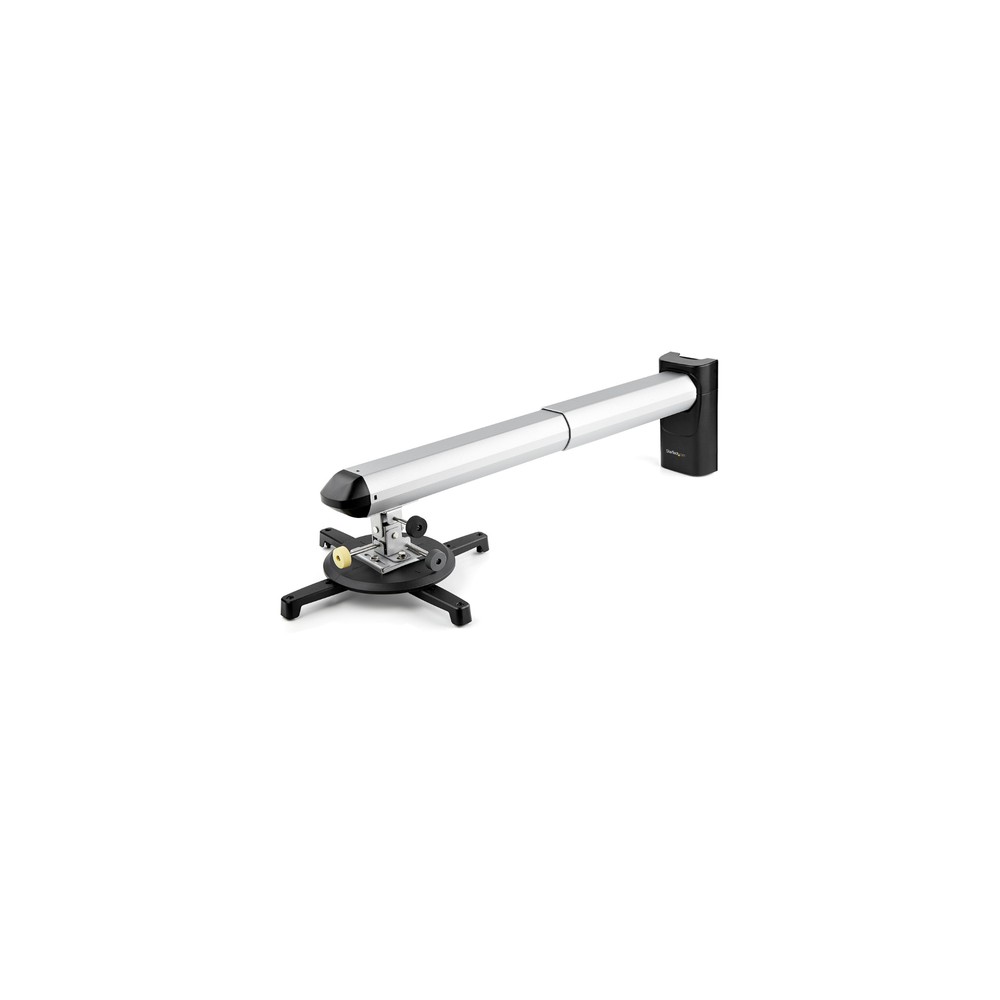

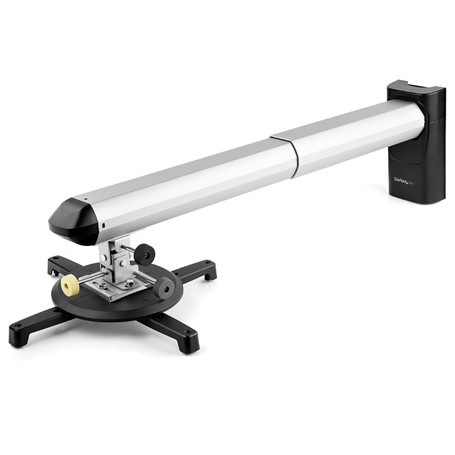

The StarTech PROJWALLMNT is a heavy-duty, commercial-grade universal projector mounting solution designed for boardrooms, classrooms, and hospitality venues. It is utilized by AV integrators and facility managers who require a stable, wall-anchored installation for short-throw or standard projectors in spaces where ceiling mounting is impractical or restricted by HVAC ducting.
Technically, the mount is constructed from robust steel and supports a high weight capacity of 52 lb (23.6 kg). It features a telescopic arm that extends from 13.7 inches to 15.6 inches from the wall, allowing for precise throw distance adjustments. The universal mounting interface consists of four adjustable support arms that can reach mounting holes spaced between 0.7" and 12.8" apart, ensuring compatibility with the vast majority of projector brands.
Deployment is simplified with an integrated cable management system that hides power and HDMI cables within the telescopic arm for a clean, professional finish. The mount offers a +/- 30° tilt and +/- 15° swivel, enabling installers to square the image perfectly to the screen even if the wall surface is slightly uneven. This mount is not intended for ultra-short throw projectors that require specialized vertical offset brackets.
Universal mounting arms fit most projectors with 52 lb weight capacity.
Telescopic arm extends 15.6" from wall for flexible throw distance.
Integrated cable management track conceals wiring for a clean look.
Toolless tilt and swivel adjustments for precise image alignment.
Solid steel construction ensures long-term stability and safety.
| Property | Specification |
| Brand | StarTech.com |
| Part Number | PROJWALLMNT |
| Product Type | Projector Wall Mount |
| Weight Capacity | 52.1 lb (23.6 kg) |
| Adjustable Extension | 13.7 in to 15.6 in (348 mm to 396 mm) |
| Mounting Range | 0.7 in to 12.8 in (18 mm to 325 mm) |
| Tilt | +30° / -30° |
| Swivel | +15° / -15° |
| Rotation | 360° |
| Material | Steel and Plastic |
| Cable Management | Internal Cable Track |
| Color | Black |
| Warranty | 2 Years |
