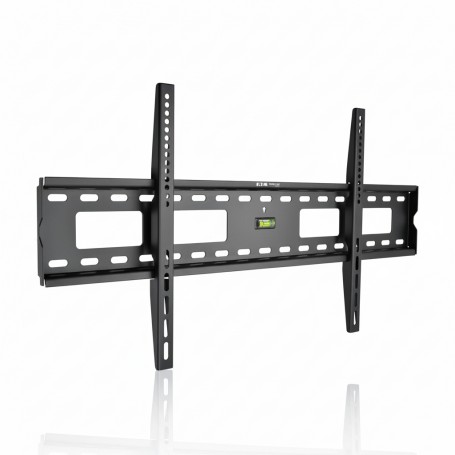

Eaton DWF4585X Fixed Wall Mount 45-85″ Flat Panel
Overview :
The Eaton DWF4585X is a fixed wall mount designed to secure flat-panel displays from 45″ to 85″ directly to vertical surfaces. It is deployed by AV engineers, facility technicians, and IT infrastructure teams in environments where large-format displays must be mounted securely with a low-profile footprint. The mount addresses the need for robust, permanent display installation without articulating arms or tilt mechanisms.
From a deployment perspective, the mount supports VESA-compliant mounting hole patterns from 200 × 200 mm to 800 × 400 mm, accommodating a broad range of LCD, LED, and commercial displays within the specified size range. The all-metal construction with a scratch-resistant powder-coat finish is engineered for durability and long service life in high-traffic areas. A built-in bubble level and horizontally adjustable rails simplify installation and alignment.
This mount is typically installed in boardrooms, classrooms, digital signage corridors, lobbies, and control room displays. Its fixed design places the display close to the wall, optimizing sightlines and reducing the overall profile compared to articulating solutions. The mount is suitable where frequent repositioning is not required.
Integration aligns with standard VESA flat-panel ecosystem requirements, enabling compatibility with most commercial and professional displays from major OEMs that support standard VESA patterns. Mounting hardware for wood studs, concrete, and masonry is included to support a range of structural environments.
In a practical deployment, a facilities technician mounts a large display in a corporate conference room for unified communications or digital signage in a lobby. The adjustable rails compensate for uneven stud placement, reducing re-drilling operations. The mount's low profile also minimizes accidental contact in public zones.
This device should not be used where tilt, swivel, or motorized positioning is required, such as dynamic presentation environments. It is also not suitable for displays outside the 45-85″ range or above the 200 lb (91 kg) capacity, where alternative mounting systems are required.
Key Features
- Fixed wall mount for flat-panel displays 45-85″
- Supports VESA patterns 200×200 to 800×400 mm
- All-metal construction with powder-coat finish
- Built-in bubble level for installation alignment
- Adjustable horizontal rails for off-center studs
Technical Specifications
| Specification | Details |
|---|
| Brand | Eaton (Tripp Lite) |
| Part Number | DWF4585X |
| Product Type | Fixed Wall Mount |
| Supported Display Size | 45″-85″ |
| Max Load Capacity | 200 lb (91 kg) |
| VESA Mount Patterns | 200×200, 300×300, 400×200, 400×400, 600×400, 800×400 mm |
| Mounting Type | Fixed, wall |
| Material | Steel |
| Finish | Black powder-coat |
| Included Hardware | Mounting rails, screws, anchors |
| Built-in Level | Yes |
| Adjustment | Horizontal rail adjustment |
| Recommended Use | Flat-panel TVs/monitors |
| Warranty | 5-year limited |
